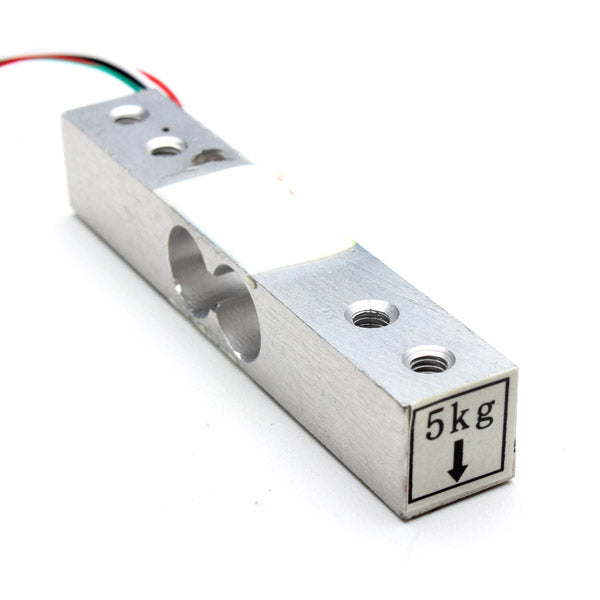

5kg Load Cell Weight Sensor with strain gauge for weighing systems

Weighing Load Cell Sensor Mini-5kg

Rs. 139.00 Rs. 140.00
Skip to product information
5kg Load Cell Weight Sensor with strain gauge for weighing systems
  • 5kg Load Cell Weight Sensor with strain gauge for weighing systems
Weighing Load Cell Sensor Mini-5kg

Weighing Load Cell Sensor Mini-5kg

Rs. 139.00 Rs. 140.00
Bulk order? Request pricing and availability Need support? Contact our team
Free shipping eligibility Prepaid orders of ₹999+ delivered within Tamil Nadu. Terms apply.
Cash on Delivery Available for eligible PIN codes. Confirmed at checkout.
Description

The Mini Load Cell 5kg Sensor is a compact force measurement device designed to measure weight or force up to 5 kilograms. It is commonly used in electronic weighing scales, kitchen scales, DIY projects, robotic arms, and automation systems.

🔧 Key Features:

  • Capacity: 0 – 5 kg

  • Type: Strain gauge-based load cell

  • Material: Typically aluminum alloy for lightweight and durability

  • Output: Millivolt signal (usually in the range of a few mV/V)

  • Excitation Voltage: 5V to 12V (commonly powered by 5V)

  • Wiring:

    • Red: Excitation+ (E+ or VCC)

    • Black: Excitation− (E− or GND)

    • Green: Signal+ (S+ or OUT+)

    • White: Signal− (S− or OUT−)
