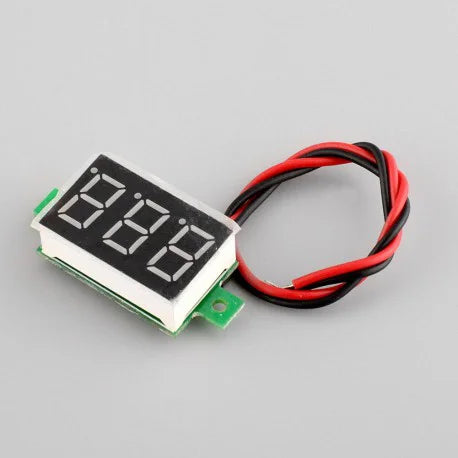

0.36 Inch 4.5V-30V Two Wire DC Voltmeter Digital LED Voltage Display Panel Meter for Battery and Electronics Projects
Rs. 59.00
Skip to product information
0.36 Inch 4.5V-30V Two Wire DC Voltmeter Digital LED Voltage Display Panel Meter for Battery and Electronics Projects
Rs. 59.00
Bulk order?
Request pricing and availability
Need support?
Contact our team
Free shipping eligibility
Prepaid orders of ₹999+ delivered within Tamil Nadu. Terms apply.
Cash on Delivery
Available for eligible PIN codes. Confirmed at checkout.
Description
The 0.36-inch DC Voltmeter Display is a compact digital voltage measurement module designed to monitor DC voltages from 4.5V to 30V. Featuring a bright LED display and simple 2-wire connection, it provides real-time voltage readings for batteries, power supplies, DIY electronics projects, and embedded systems.
Specification;
| Parameter | Specification |
|---|---|
| Product Type | Small and lightweight DC Voltmeter Module |
| Weight | 5 gm |
| Display Color | Red |
| Operating Voltage Range | 4.5V to 24V |
| Measurable Voltage Range | 4.5V to 30V DC |
| Accuracy | ±0.1 V |
| Wire Type | 2-wire system |
| Adjustment | Potentiometer available for calibration |
| Display Turn-On Voltage | 3V |
| Current Consumption | 10 mA (min), 23 mA (max) |
| Refresh Speed | 200 ms (one update cycle) |
| Operating Temperature | -10°C to 60°C |
