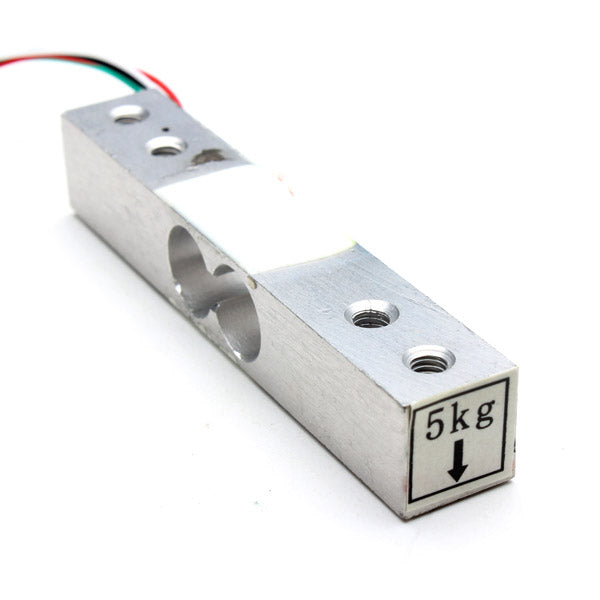

Weighing Load Cell Sensor mini-5kg

The Mini Load Cell 5kg Sensor is a compact force measurement device designed to measure weight or force up to 5 kilograms. It is commonly used in electronic weighing scales, kitchen scales, DIY projects, robotic arms, and automation systems.

🔧 Key Features:

• Capacity: 0 – 5 kg

• Type: Strain gauge-based load cell

• Material: Typically aluminum alloy for lightweight and durability

• Output: Millivolt signal (usually in the range of a few mV/V)

• Excitation Voltage: 5V to 12V (commonly powered by 5V)

• Wiring:

  • Red: Excitation+ (E+ or VCC)

  • Black: Excitation− (E− or GND)

  • Green: Signal+ (S+ or OUT+)

  • White: Signal− (S− or OUT−)
