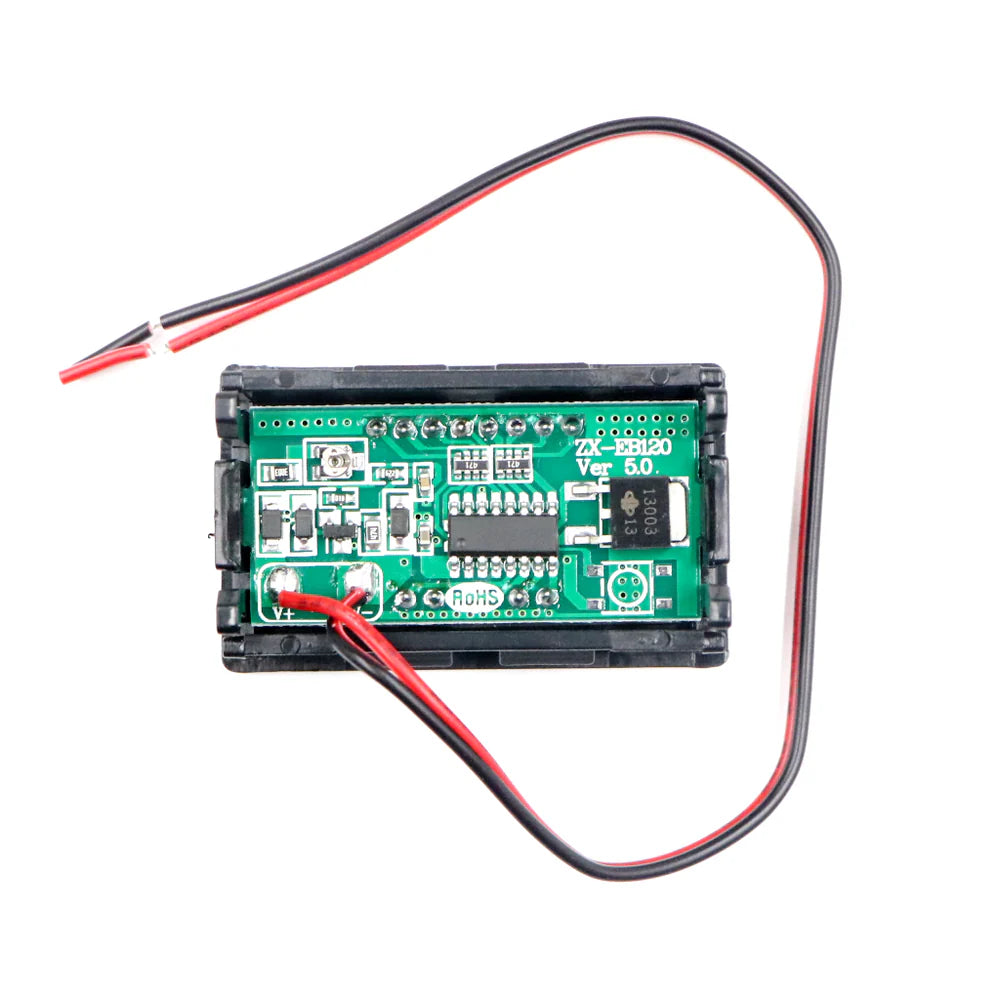

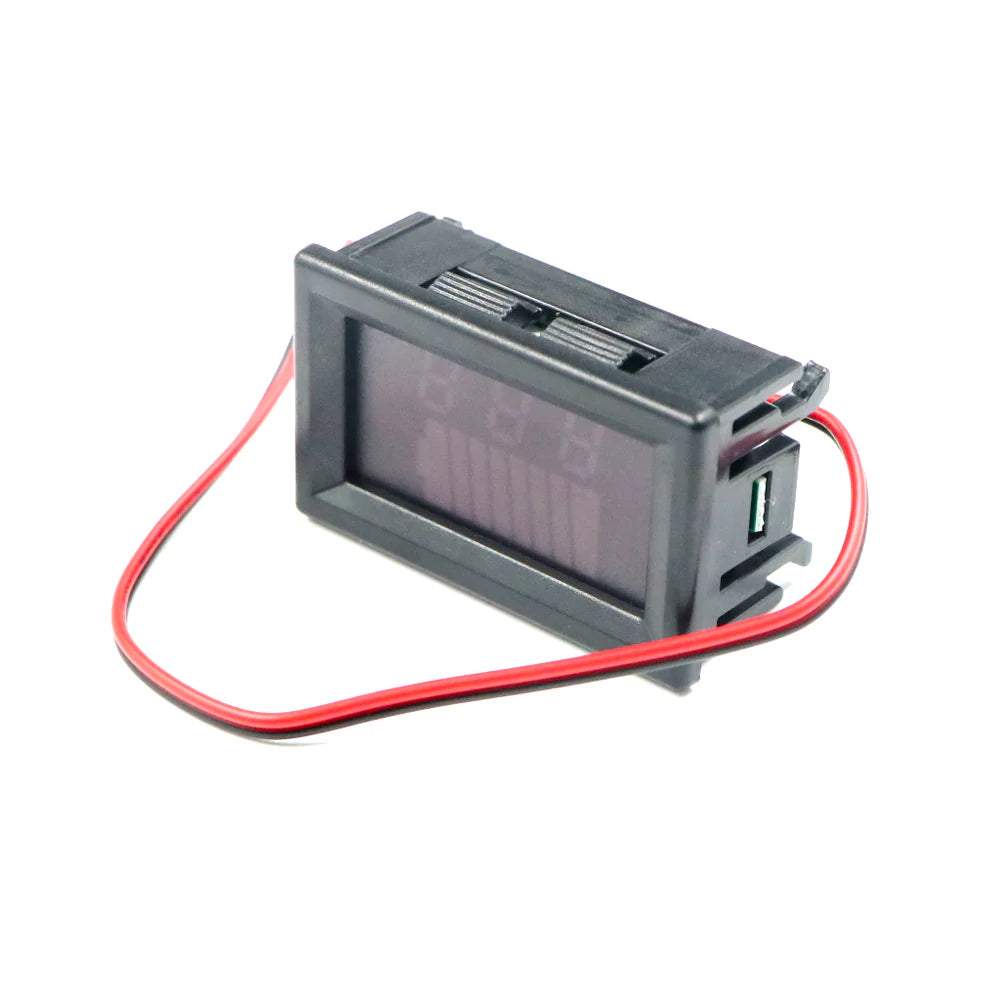

12V–60V Digital Battery Level Indicator Voltage Capacity Display Module
12V–60V Digital Battery Level Indicator Voltage Capacity Display Module
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 12V to 60V Battery Level Indicator is a compact battery-monitoring module designed to display the approximate remaining battery capacity and operating voltage of compatible DC battery systems.
It supports a wide 12V–60V input range, making it suitable for various battery-powered applications such as electric vehicles, e-bikes, scooters, solar battery systems, UPS units, inverter batteries, robotics projects, portable power systems and DIY electronics.
The module allows users to check the battery level quickly without using a separate multimeter. It can be installed on equipment panels, battery boxes or project enclosures for convenient real-time battery-status monitoring.
This indicator is intended for voltage and approximate battery-capacity monitoring only. It does not charge, balance or protect the battery. A suitable charger and BMS protection board must be used separately.
Important: Confirm the battery voltage, polarity and module configuration before connection. Reverse polarity or voltage above the rated range may damage the indicator.
Specifications
| Specification | Details |
|---|---|
| Product type | Battery level indicator module |
| Supported voltage range | 12V to 60V DC |
| Main function | Battery voltage and capacity-level indication |
| Display information | Approximate remaining battery level |
| Power source | Powered directly from the connected battery |
| Connection type | Positive and negative DC input |
| Installation type | Panel or enclosure mounting |
| Battery compatibility | Depends on the selected voltage and battery configuration |
| Suitable systems | 12V, 24V, 36V, 48V and compatible battery systems |
| Applications | E-bikes, scooters, electric vehicles, solar systems, UPS, inverters and DIY projects |
| Protection function | Not included |
| Charging function | Not included |
| Package quantity | 1 piece |
