Description

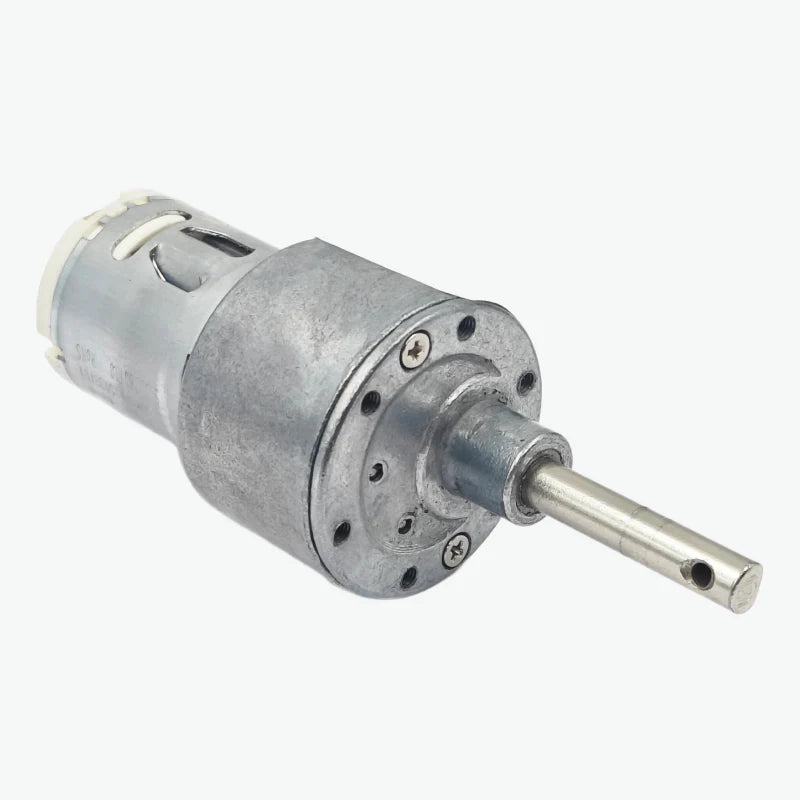

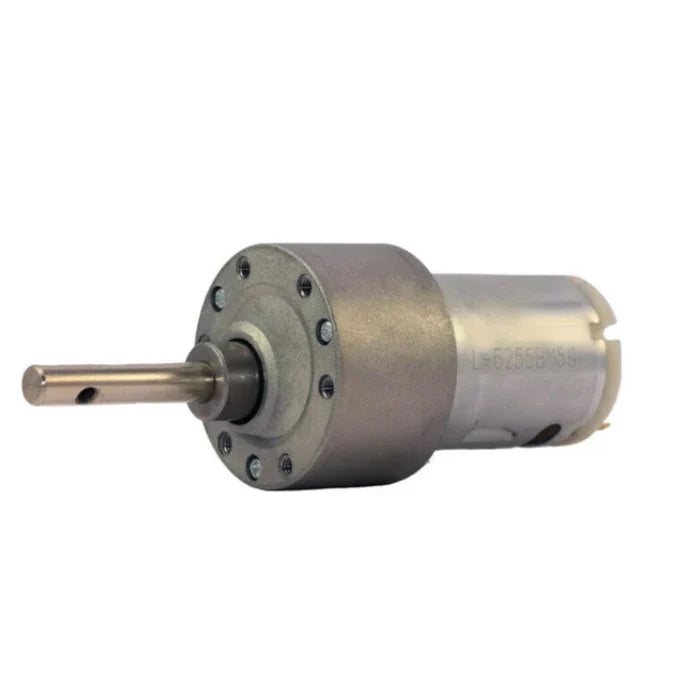

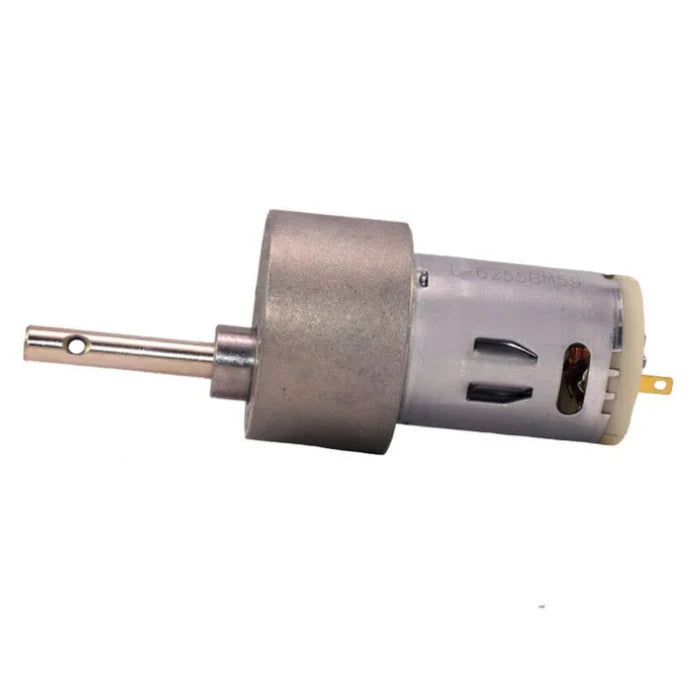

The 10 RPM – 12V Johnson Gear Motor is a high-torque DC geared motor designed for heavy-duty robotic and automation applications. It uses a robust metal gearbox combined with a powerful DC motor to deliver slow speed (10 RPM) with very high torque output.
Key Features
- Rated Speed: 10 RPM (at no load)
- Operating Voltage: 12V DC
- Type: Johnson High Torque Gear Motor
- Grade: Grade A (Premium Quality)
- Gearbox: Metal Gear Reduction System
- High torque output for heavy-load applications
- Low-speed, stable rotation for precision control
- Durable construction for long operational life
- Suitable for continuous and intermittent duty cycles
- Strong shaft for wheel and mechanical coupling
Specifications:
| Specification | Details |
|---|---|
| Base Motor RPM | 18000 RPM |
| Shaft Diameter | 6mm (with M3 thread hole) |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 27 mm |
| Motor Length (without shaft) | 62 mm |
| Shaft Length | 37 mm |
| Weight | 180 gm |
| Holding Torque | 38 Kg cm |
| No-Load Current | 800 mA |
| Load Current | Up to 7.5 A (Max) |
