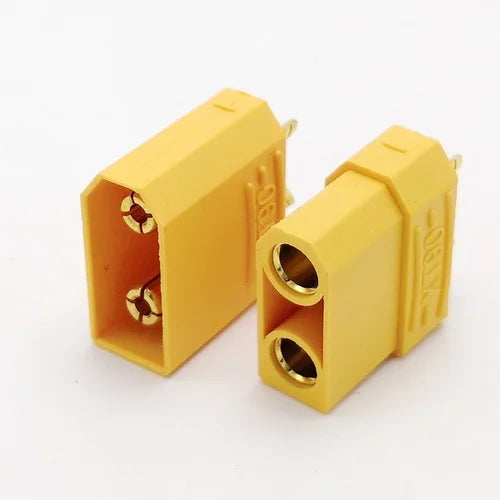

XT-90 SET BIG

The XT-90 connector features a female end for the battery and a male end for the charger. Its rear concave design allows the heat shrink tube to be placed deeper, offering enhanced protection from moisture and making soldering easier. The connector is precisely molded to ensure a snug fit with no gaps, providing leakproof protection. It includes clear "+" and "-" markings for polarity, and the larger 4.5mm banana plug contact allows for efficient handling of continuous currents up to 90A, with a peak of 120A. The housing design, along with a groove slot, ensures a stronger connection and prevents errors. The non-slip insulator makes connections easier, and the 180-degree tail shape simplifies soldering of wires.

Key Features:

• The housing shape prevents short circuits and reversed polarity.
• Supports wire sizes up to 8AWG.
• Semicircular solder terminals for easy wire installation.
• Handles continuous current of 90A or more.

Specifications:

• Rated Voltage: 500V DC
• Contact Material: Brass
• Current Capacity: 90A
• Wire Gauge: Supports 14 to 12 AWG
• Contact Plating: Gold flash
• Operating Temperature: -20°C to 120°C
• Flammability Rating: UL94V-0
• Gender: Male-Female pair
• Contact Points: 2
• Connector Type: XT90
• Metal Contact Size: 4.5mm
• Color: Yellow
• Dimensions: 38.6 x 21.5 x 11.2 mm
• Country of Origin: China
