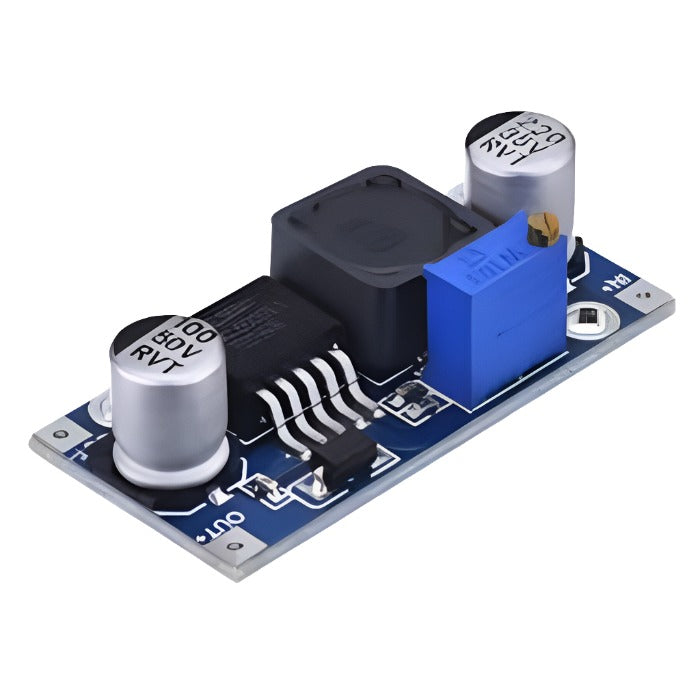

XL6009 DC- DC Adjustable Step UP Boost Converter

XL6009 DC- DC Adjustable Step UP Boost Converter

Features:

• Non-isolated step-up power converter module.
• Efficiently adjusts output voltage.
• Converts input voltage of 5-32V DC to an output voltage of 4-38V DC.
• Non-synchronous rectifier.
• Small and handy voltage regulator module.
• Input reverse polarity protection.
• Built-in output short protection function.

Specifications:

• Dimensions: LxWxH - 43x21x14mm
• High switching frequency of 400KHz for smaller ripple.
• Efficiency up to 94%.
• Input Voltage: 3V to 32V
• Input Current: 4A
• Output Voltage: 5V to 35V
• Output Ripple: 50mV
• Load Regulation: ±0.5%
• Voltage Regulation: ±0.5%

Pins:

• IN+ input positive
• IN- input negative
• OUT+ output positive
• OUT- output negative
