XH-W3001 Digital Temperature Controller with Probe – 110V–220V, -50°C to 110°C, 1500W
XH-W3001 Digital Temperature Controller with Probe – 110V–220V, -50°C to 110°C, 1500W
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

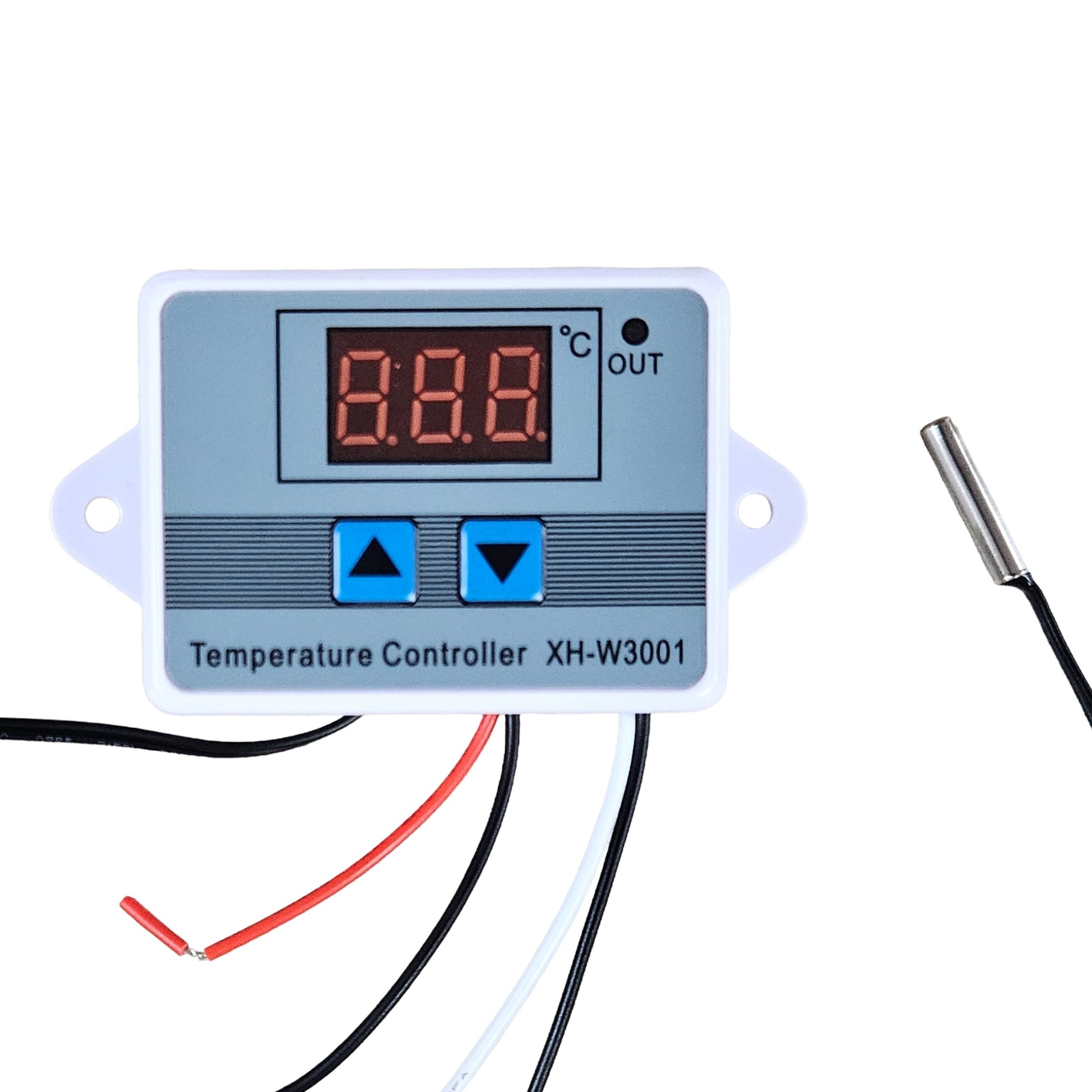

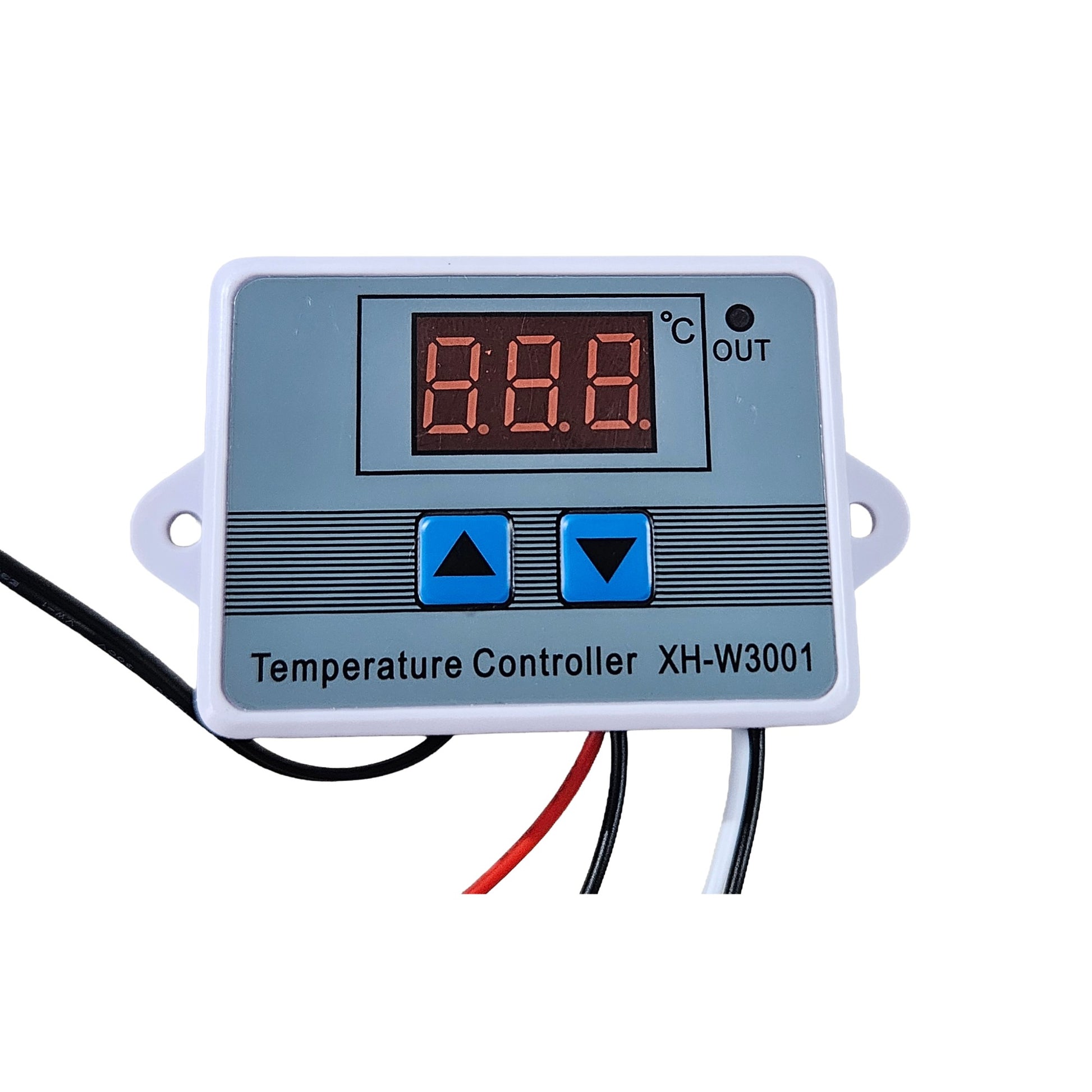

The XH-W3001 Digital Temperature Controller is a compact and easy-to-use thermostat control module suitable for heating and cooling applications. It comes with a digital LED display, UP/DOWN setting buttons and an external temperature probe for accurate temperature sensing.
This controller can be used for incubators, refrigerators, freezers, aquariums, heating pads, cooling fans, temperature-controlled boxes, DIY electronics projects and industrial temperature control applications. The relay output can automatically turn the connected load ON or OFF based on the set start and stop temperature.
The 110V–220V model supports up to 1500W output load, making it suitable for many AC heating and cooling control applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Digital Temperature Controller |
| Model | XH-W3001 |
| Working Voltage | 110V–220V AC |
| Maximum Output Power | 1500W |
| Temperature Measurement Range | -50°C to 110°C |
| Temperature Control Range | -50°C to 110°C |
| Control Accuracy | 0.1°C |
| Sensor Type | NTC 10K Temperature Probe |
| Output Type | Direct Output |
| Output Capacity | Max 10A |
| Display Type | Digital LED Display |
| Control Buttons | UP Button, DOWN Button |
| Indicator | OUT Output Indicator |
| Body Size | Approx. 60 × 45 × 31 mm |
| Function | Heating / Cooling Temperature Control |
| Mounting | Side screw hole mounting |
| Suitable For | Incubator, aquarium, refrigerator, freezer, fan, heater, DIY projects |
| Package Includes | 1 × XH-W3001 Temperature Controller with Probe |
