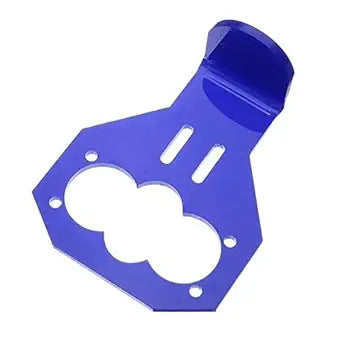

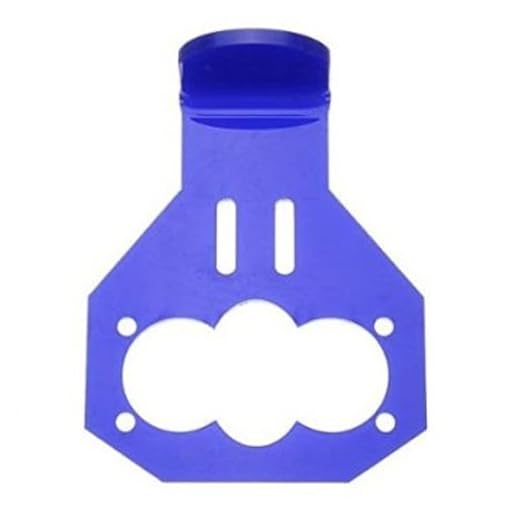

Ultrasonic Sensor Cartoon Mounting Bracket Holder for HC-SR04 Module

Cartoon-style mounting bracket designed specifically for HC-SR04 ultrasonic sensor module
- Made from rigid acrylic material for stable and fixed sensor positioning
- Allows easy mounting of ultrasonic sensor on robots and project frames
- Pre-cut holes support simple screw-based installation on flat surfaces
- Helps align ultrasonic sensor neatly for distance measurement projects
- Sensor module not included with this mounting bracket

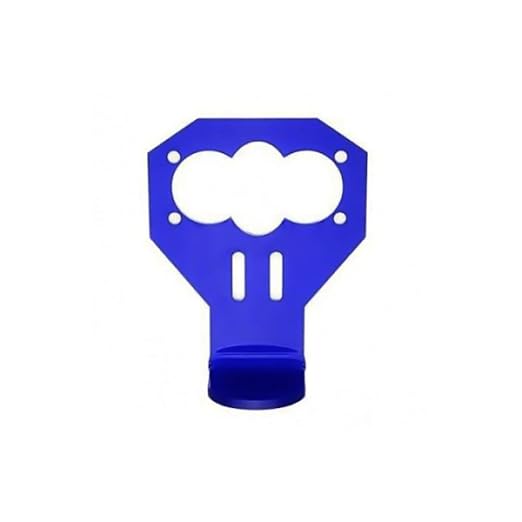

The Ultrasonic Sensor Cartoon Mounting Bracket for HC-SR04 is a mechanical holder designed to support and position an HC-SR04 ultrasonic distance sensor during use. The bracket features a cartoon-style front cutout that aligns with the dual transducers of the sensor, allowing accurate distance measurement without obstruction. It is intended for use in electronics projects where a fixed and stable sensor position is required.

This mounting bracket is commonly used in small robotics projects, obstacle avoidance systems, and educational electronics builds. By securely holding the HC-SR04 sensor, it helps maintain consistent orientation and distance alignment when mounted on robot chassis, frames, or flat panels. The bracket simplifies mechanical assembly and reduces the need for custom mounts.

Key benefits of this bracket include easy installation and reliable physical support for the sensor module. The acrylic material provides sufficient strength while remaining lightweight, making it suitable for mobile robots and compact DIY systems. Pre-drilled mounting holes allow users to attach the bracket using standard screws without additional modification.

The bracket is compatible only with the HC-SR04 ultrasonic sensor module and is not intended for use with other ultrasonic sensor models. It can be used in Arduino-based projects, robotics kits, automation prototypes, and student learning applications where ultrasonic distance sensing is required.

The package includes one cartoon-style acrylic mounting bracket. The ultrasonic sensor module, screws, and other accessories are not included and must be sourced separately.

SPECIFICATIONS
Product Type : Ultrasonic sensor mounting bracket
Compatible Sensor : HC-SR04 ultrasonic sensor
Material : Acrylic
Bracket Style : Cartoon face design
Mounting Type : Screw mount
Mounting Hole Diameter : Approximately 3.4–3.8 mm
Inner Sensor Opening Diameter : Approximately 16 mm
Thickness : Approximately 2.8–3 mm
Color : Blue
Application : Sensor mounting and positioning
Electronics Included : No
Quantity per Package : 1 piece
