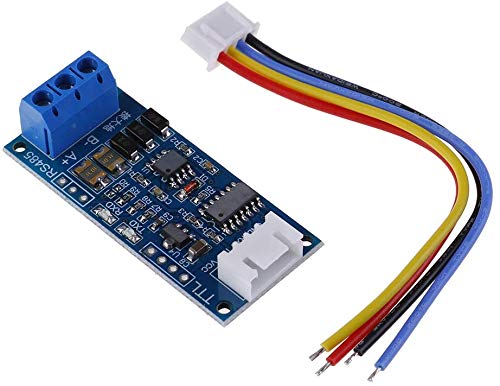

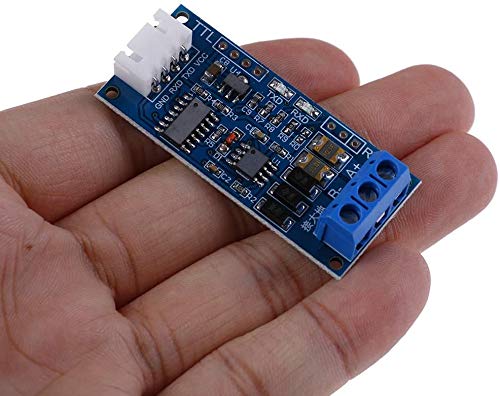

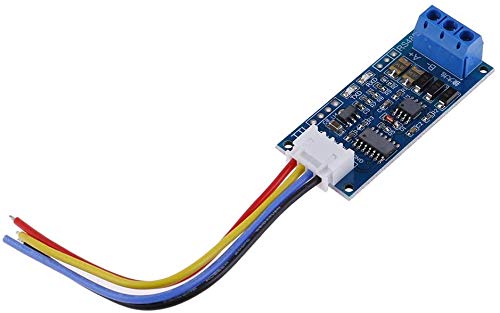

TTL to RS485 Serial Converter Module – 3.3V / 5V Auto Control Board
TTL to RS485 Serial Converter Module – 3.3V / 5V Auto Control Board
Regular price
Rs. 105.00
Regular price
Rs. 139.00
Sale price
Rs. 105.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
TTL to RS485 Serial Converter Module
This module converts TTL UART signals from microcontrollers (Arduino, ESP32, STM32, Raspberry Pi UART, etc.) into RS485 differential signals for long-distance communication.
Specifications
| Parameter | Value |
|---|---|
| Communication Standard | RS485 |
| Logic Voltage | 3.3V / 5V compatible |
| Supply Voltage (VCC) | 3.0V – 5.5V DC |
| UART Interface | TTL Serial (TX, RX) |
| Baud Rate | Up to 115200 bps (typically), some modules support higher |
| Control Method | Automatic TX/RX direction control |
| Transmission Distance | Up to 1200 m (RS485 standard) |
| Number of Nodes | Up to 32 devices on one bus |
| Differential Signals | A (+), B (-) |
| Operating Temperature | -40°C to +85°C (typical) |
| IC Used | Usually MAX485, SP3485, or equivalent |
| Power Consumption | Low power (<10 mA typical) |
Pin Configuration
| TTL Side | Function |
|---|---|
| VCC | 3.3V/5V Supply |
| GND | Ground |
| TXD | UART Transmit |
| RXD | UART Receive |
| RS485 Side | Function |
|---|---|
| A (D+) | RS485 Positive |
| B (D-) | RS485 Negative |
Features
- Supports both 3.3V and 5V microcontrollers
- Auto-flow control (no DE/RE pin handling required)
- Long-distance communication up to 1200 m
- High noise immunity due to differential signaling
- Suitable for industrial and automation projects
