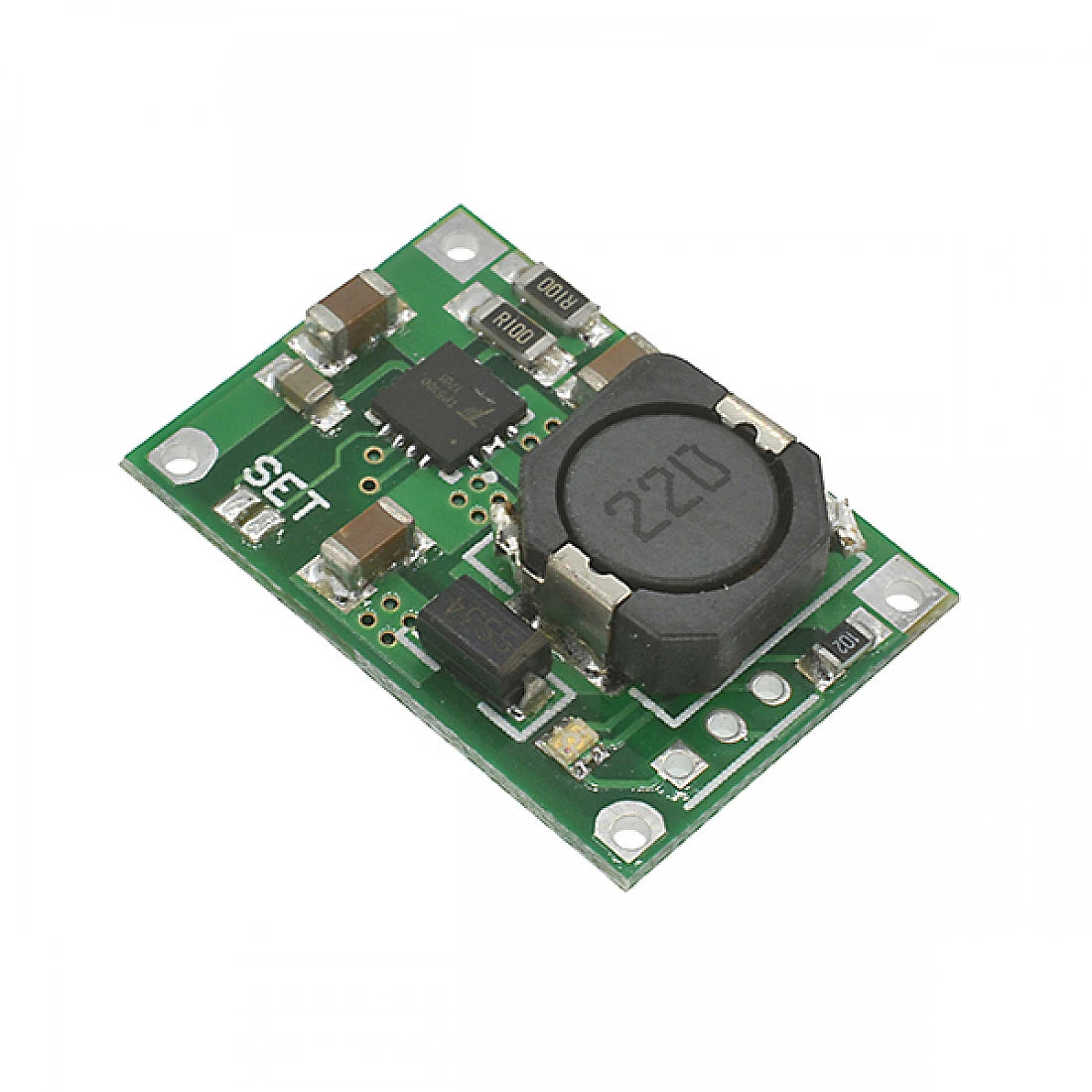

TP5100 Li-Ion 4.2V–8.4V Charging Board – 1S/2S Lithium Battery Charger Module
TP5100 Li-Ion 4.2V–8.4V Charging Board – 1S/2S Lithium Battery Charger Module
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The TP5100 Li-Ion 4.2V–8.4V Charging Board is a lithium battery charging module designed for charging 1S (4.2V) and 2S (8.4V) lithium-ion battery packs. Based on the TP5100 charging IC, the module provides a reliable charging solution for rechargeable lithium batteries.
The board supports charging of both single-cell and two-cell lithium battery packs, making it suitable for a wide range of battery-powered electronic projects. Its compact PCB design allows easy integration into DIY electronics, portable devices, robotics, battery-powered equipment, and embedded systems.
The module is suitable for hobbyists, students, and developers looking for a convenient lithium battery charging solution for 1S and 2S battery packs.
Features
- Based on the TP5100 charging IC
- Supports 1S (4.2V) lithium-ion battery charging
- Supports 2S (8.4V) lithium-ion battery charging
- Compact PCB design
- Easy input and battery output connections
- Suitable for rechargeable lithium battery packs
- Easy to integrate into electronic projects
Specifications
| Parameter | Specification |
|---|---|
| Product Name | TP5100 Li-Ion 4.2V–8.4V Charging Board |
| Charging IC | TP5100 |
| Module Type | Lithium Battery Charging Module |
| Supported Battery Type | Lithium-Ion Battery |
| Supported Battery Configuration | 1S / 2S |
| Charging Voltage | 4.2V / 8.4V |
| PCB Type | Compact Charging Module |
| Applications | DIY Electronics, Battery Packs, Portable Devices, Robotics, Embedded Systems |
Applications
- 1S lithium-ion battery charging
- 2S lithium-ion battery charging
- DIY battery packs
- Portable electronic devices
- Robotics projects
- Embedded systems
- Rechargeable battery-powered projects
- Electronics prototyping
Package Includes
- 1 × TP5100 Li-Ion 4.2V–8.4V Charging Board
