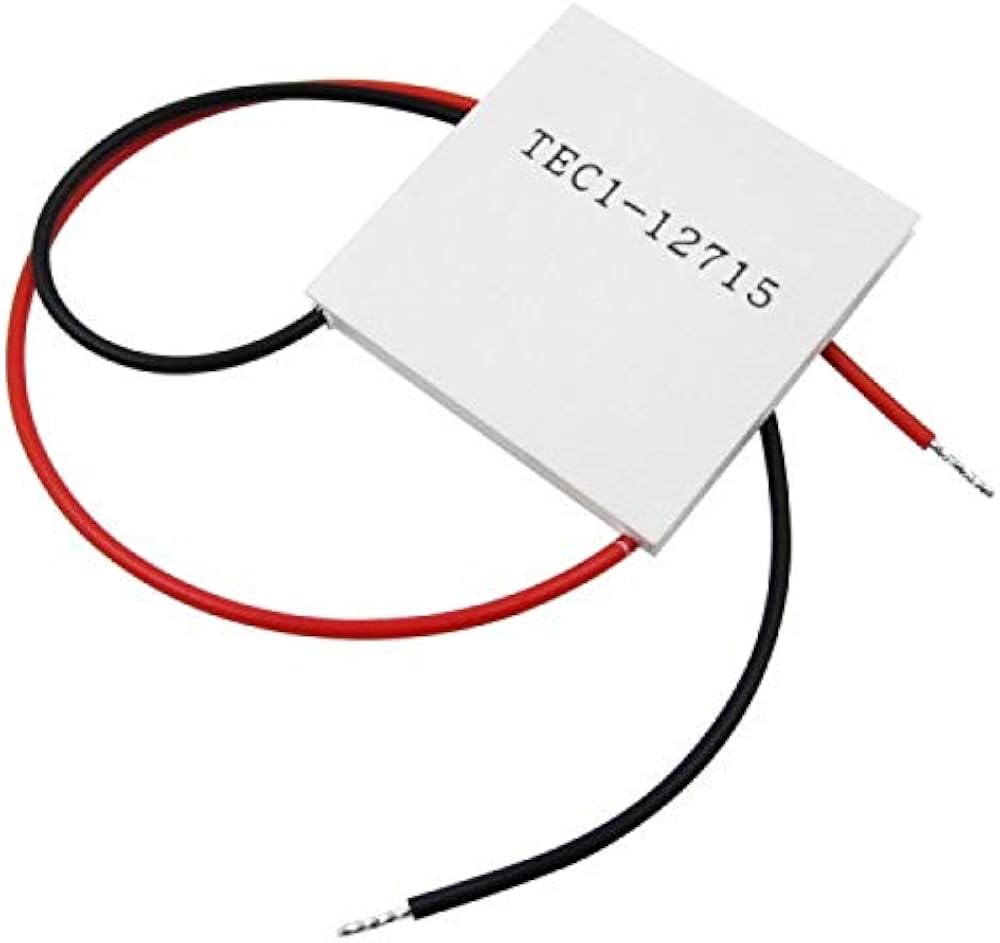

TEC1-12715 Peltier Module

The TEC1-12715 Peltier module is a thermoelectric cooling module designed to transfer heat using the Peltier effect. It is a high-performance model often used in applications requiring efficient cooling or temperature control.

Specifications of TEC1-12715:

1. Voltage (Vmax): 12V to 15.4V DC
   (Typically operates around 12V for optimal performance.)
2. Current (Imax): Up to 15A
   (Maximum current it can draw at full load.)
3. Power (Qmax): Approximately 180W
   (Cooling power at optimal voltage and current.)
4. Temperature Difference (ΔT): Up to 68°C
   (Maximum temperature difference between the hot and cold sides.)
5. Size: Typically around 40mm x 40mm x 3.5mm
   (Compact and lightweight.)
6. Hot Side Temperature Tolerance: Up to 138°C
