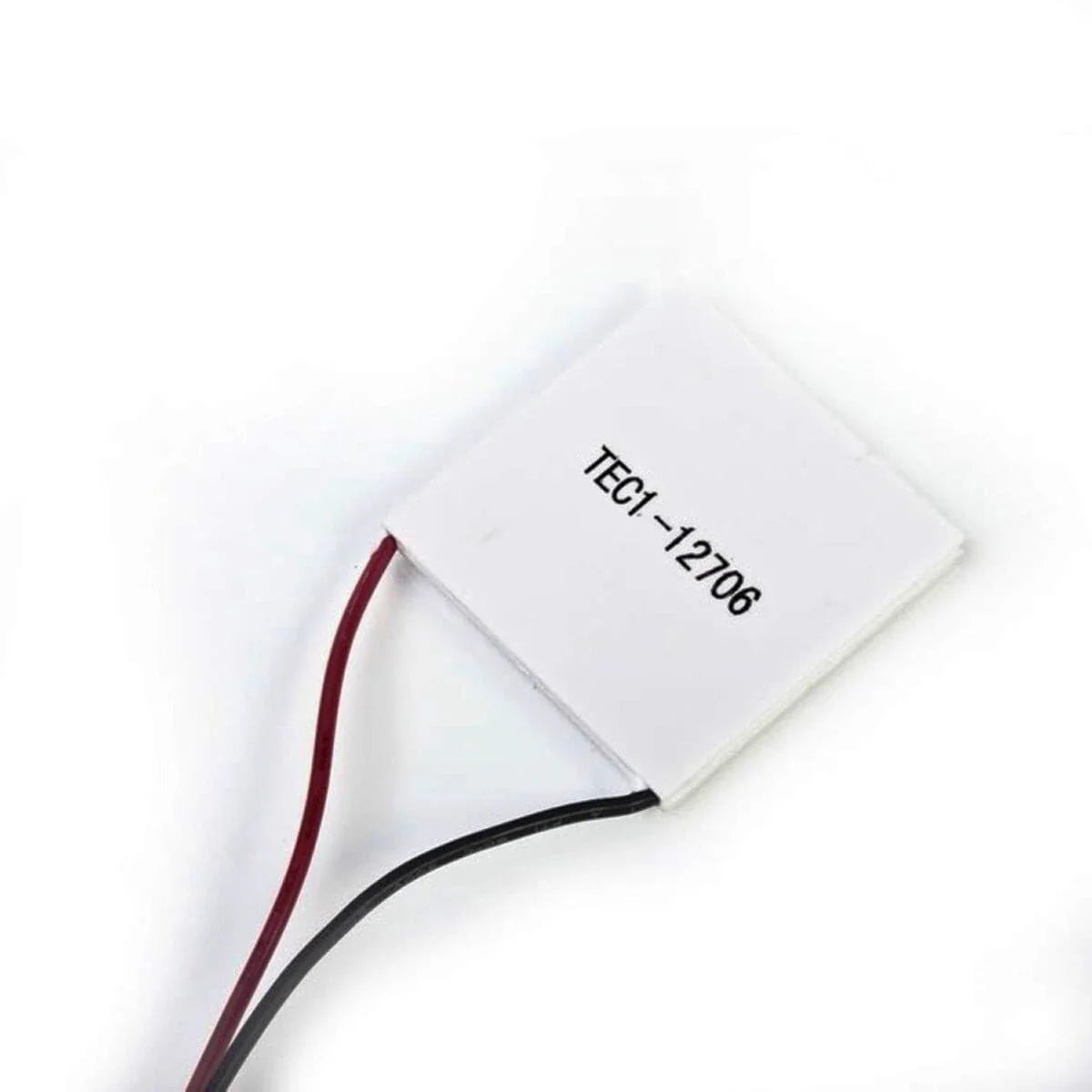

TEC1-12706 Peltier module

The TEC1-12706 Peltier module is one of the most commonly used thermoelectric cooling modules, popular for cooling, heating, and power generation in DIY and professional applications.

Specifications of TEC1-12706:

1. Voltage (Vmax): 12V DC (can operate from 9V to 15V)
2. Current (Imax): Up to 6A
3. Power Consumption (Qmax): 72W
   (This is the maximum power drawn when operating at 12V and 6A.)
4. Temperature Difference (ΔT): Up to 66°C
   (Maximum temperature difference between the cold and hot sides.)
5. Size: 40mm × 40mm × 3.8mm
6. Hot Side Temperature Tolerance: Up to 138°C
   (The maximum temperature the hot side can handle.)
