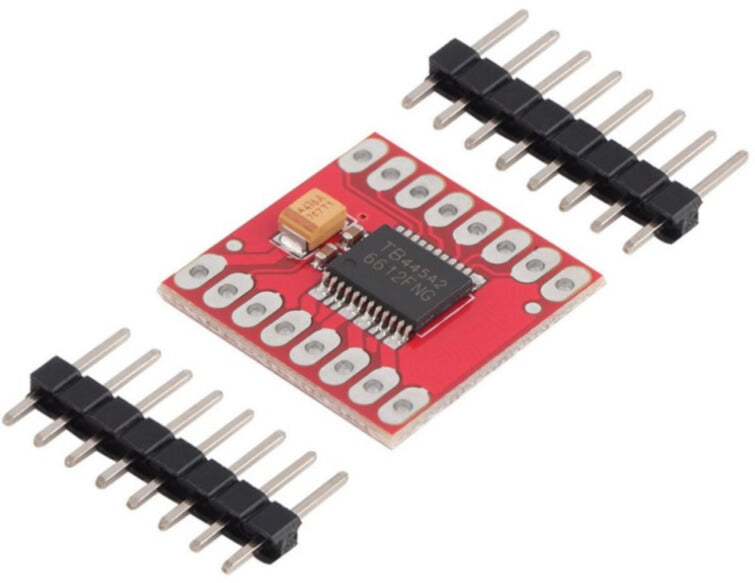

TB6612FNG Dual Motor Driver Module – 1.2A per Channel, PWM Control

Features:

• ✅ Dual Motor Control: Drive 2 DC motors or 1 stepper motor independently.

• ✅ High Efficiency: Supports up to 1.2A continuous current per channel (3.2A peak).

• ✅ PWM Speed Control: Up to 100kHz PWM frequency for smooth motor operation.

• ✅ Built-in Protection: Overcurrent and thermal shutdown safeguards.

• ✅ Logic Voltage Compatibility: Works with 2.7V–5.5V logic (ideal for Arduino/ESP/RPi).

• ✅ Compact Design: Breadboard-friendly layout for easy prototyping.

Specifications:

• Motor Voltage: 2.5V – 13.5V

• Logic Voltage: 2.7V – 5.5V

• Continuous Output Current: 1.2A per channel

• Peak Output Current: 3.2A (short duration)

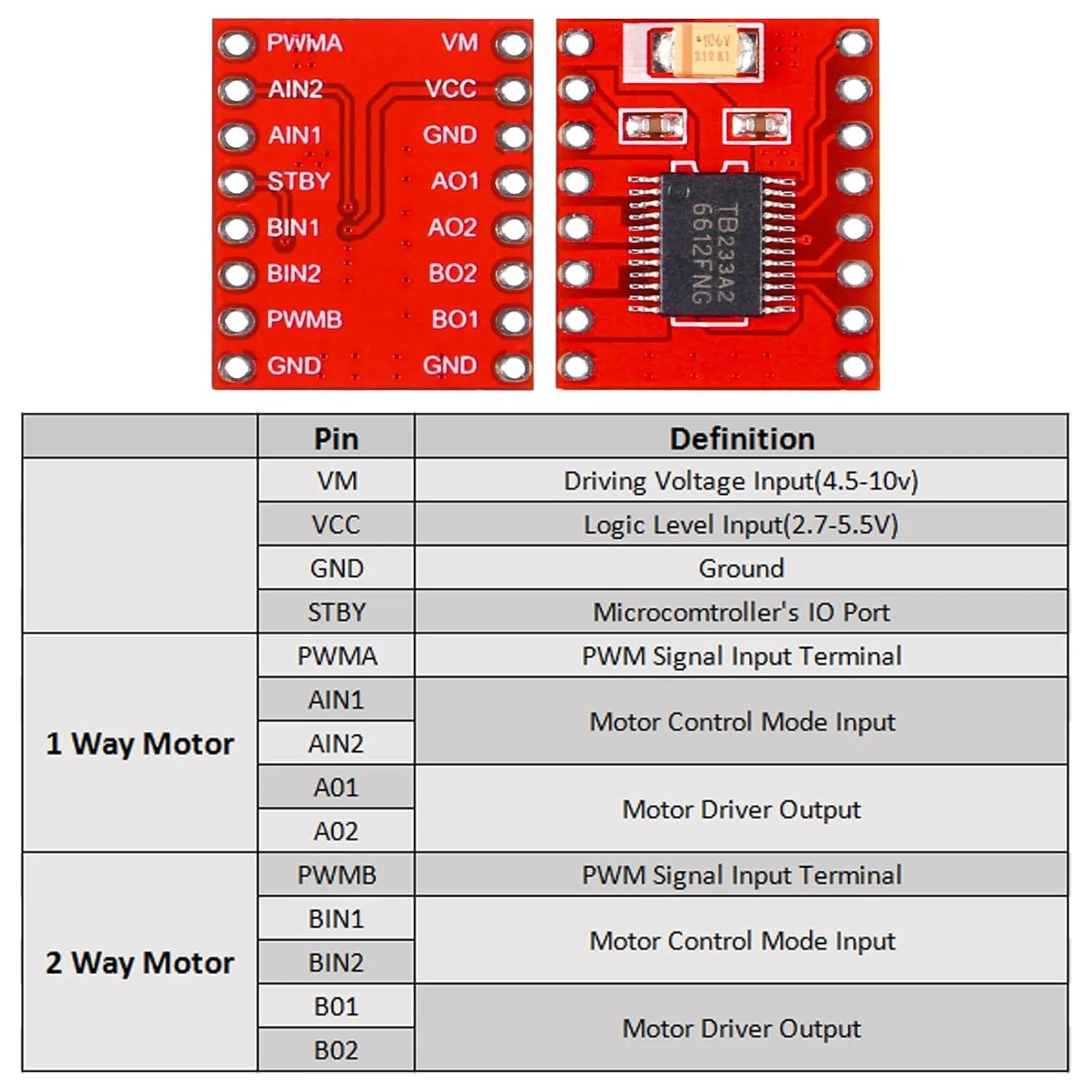

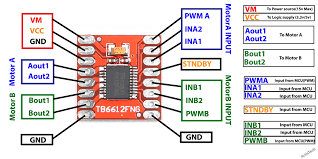

• Control: PWM input for speed, direction control via logic pins

• Dimensions: Approx. 20mm x 20mm

Applications:

• Robotics (Line-followers, obstacle avoiders)

• Small vehicles and cars

• Motorized arms and mechanisms

• DIY electronics and automation projects
