STRIPS01 RGB LED strip (60 LEDs/m, IP65)-5M
STRIPS01 RGB LED strip (60 LEDs/m, IP65)-5M
Regular price
Rs. 720.00
Regular price
Rs. 749.00
Sale price
Rs. 720.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

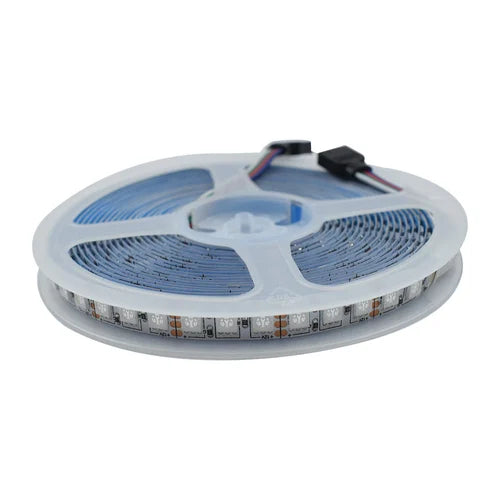

The STRIPS01 5 V WS2812 (2812b) RGB LED strip is a flexible, digitally‑addressable light ribbon designed for hobbyists, makers, and light‑decor projects.
📋 Specifications:
| Parameter | Value |
|---|---|
| Model | STRIPS01 |
| LED Type | WS2812b (individually addressable) |
| Density | 60 LEDs per meter |
| Total Length | 5 m (≈300 LEDs) |
| Input Voltage | 5 V DC |
| Max Current/LED | ~60 mA (white at full brightness) |
| Max Roll Current | ~18 A (all LEDs white @ full brightness) |
| Power Consumption | 5 V × 18 A = 90 W (theoretical max) |
| IP Rating | IP65 (silicone‑coated: splash proof, not submersible) |
| Cutting Pitch | Every 3 LEDs (~5 cm segments) |
| Colours | RGB (16 million+ combinations) |
🔋 Power Supply
-
Recommended PSU: 5 V, ≥20 A (to give headroom below the 18 A max).
-
Injection points: For long runs, inject 5 V & GND every 1–2 m to avoid voltage drop and color shift.
🛠️ Installation Tips
-
Surface prep: Clean & dry mounting surface
-
Adhesive backing: Peel & stick, or add mounting clips for extra security
-
Cutting: Cut only at the copper pads marked with a scissors icon (every 3 LEDs)
-
Soldering: Tin pads before soldering wires; use heat‑shrink tubing for strain relief
-
Weather‑proofing: For outdoor/splash‑exposed installs, seal end‑caps and solder joints with silicone
