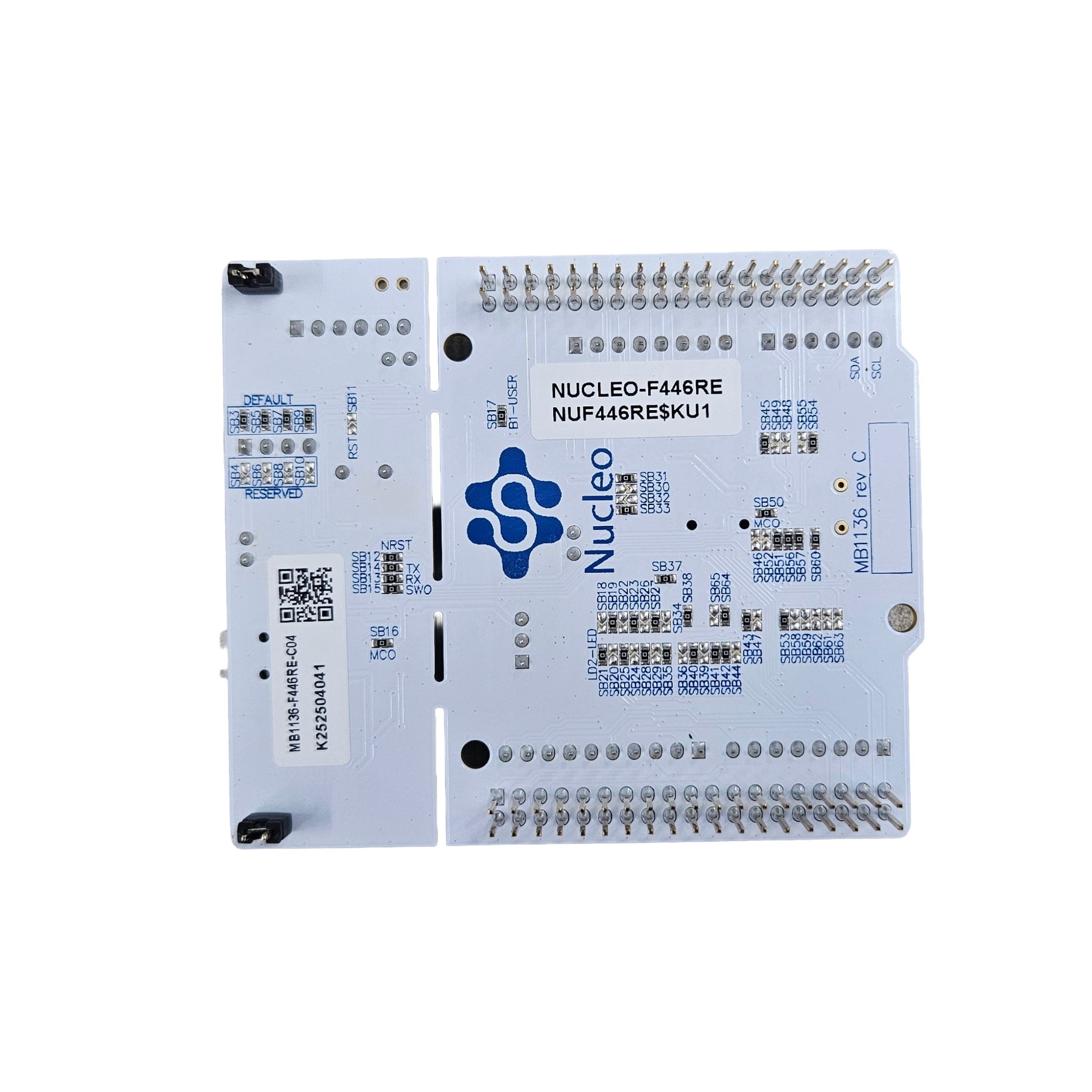

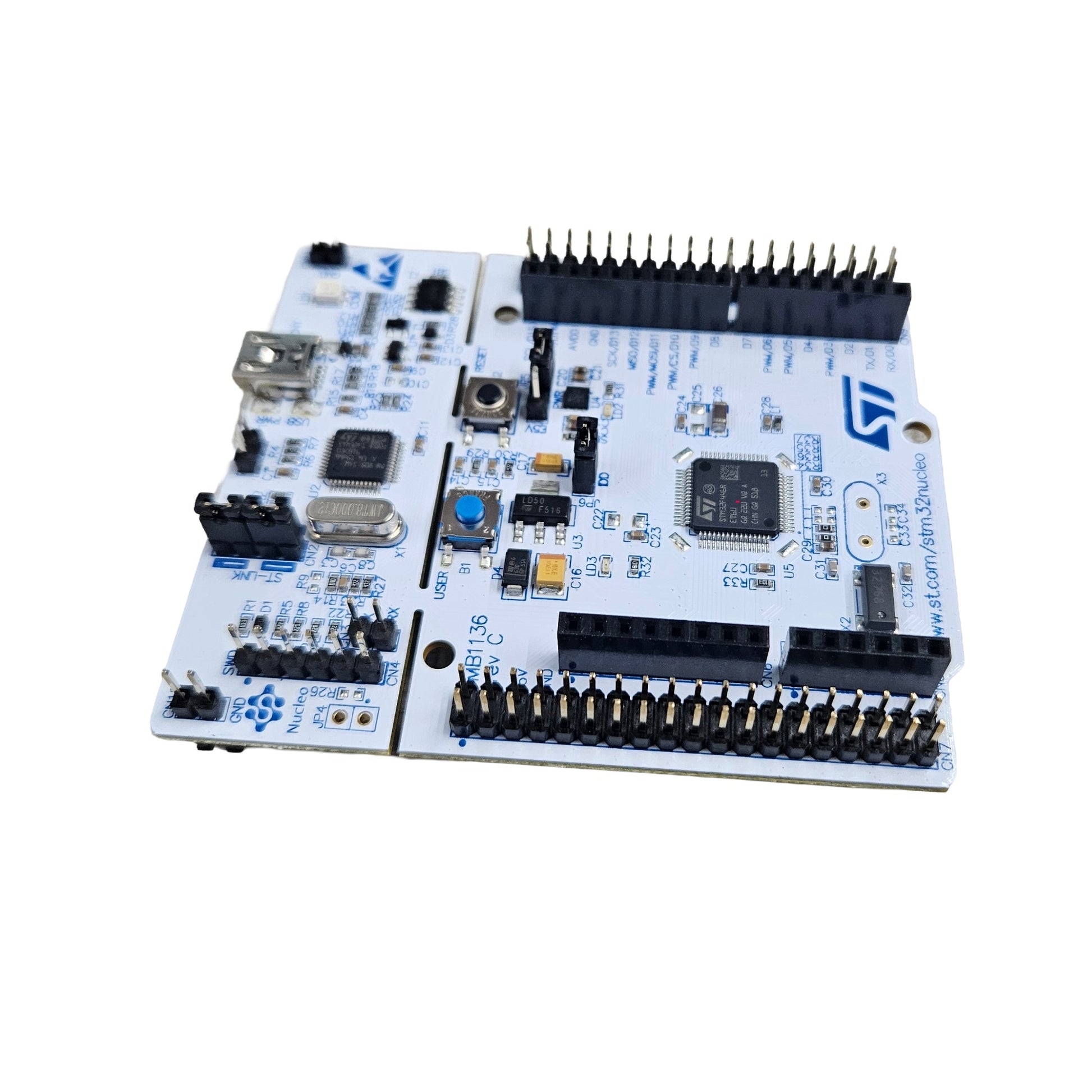

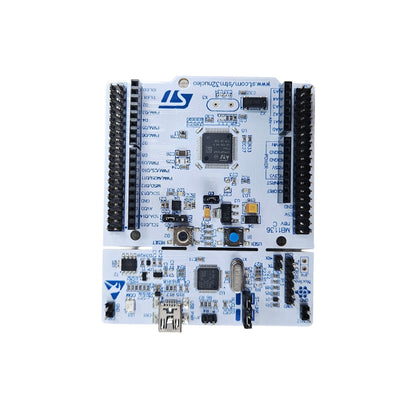

STM32 Nucleo-F446RE Development Board – Nucleo-64 Board with STM32F446RE MCU, Arduino Uno V3 & ST Morpho Headers
STM32 Nucleo-F446RE Development Board – Nucleo-64 Board with STM32F446RE MCU, Arduino Uno V3 & ST Morpho Headers
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The STM32 Nucleo-F446RE Development Board is an official STM32 Nucleo-64 development board based on the STM32F446RE microcontroller. It is designed for learning, prototyping, embedded development, ARM Cortex-M projects and professional STM32 application testing.
This board supports Arduino Uno V3 connectivity and ST Morpho extension headers, allowing easy connection with Arduino shields, sensor modules, display modules and external circuits. It also includes an onboard ST-LINK debugger/programmer, so no separate programmer is required for uploading and debugging code.
The NUCLEO-F446RE is suitable for students, engineers, embedded developers, IoT projects, robotics, motor control, automation projects, industrial prototypes and STM32CubeIDE learning.
Specifications
| Specification | Details |
|---|---|
| Product Type | STM32 Development Board |
| Board Series | STM32 Nucleo-64 |
| Model | NUCLEO-F446RE |
| Microcontroller | STM32F446RE |
| MCU Package | LQFP64 |
| Core | ARM Cortex-M4 |
| Connectivity Support | Arduino Uno V3, ST Morpho Headers |
| Debugger / Programmer | Onboard ST-LINK |
| USB Interface | USB for programming, debugging and power |
| User LED | Yes |
| Push Buttons | User button and reset button |
| Clock | 32.768 kHz crystal oscillator |
| Power Supply Options | USB power or external power source |
| Software Support | STM32CubeIDE, STM32Cube MCU Package |
| IDE Support | STM32CubeIDE, IAR Embedded Workbench, Keil MDK-ARM and other STM32-supported IDEs |
| Expansion Support | Arduino shields and ST Morpho compatible modules |
| Suitable For | STM32 learning, embedded projects, IoT, robotics, automation, prototyping |
| Package Includes | 1 × STM32 Nucleo-F446RE Development Board |
