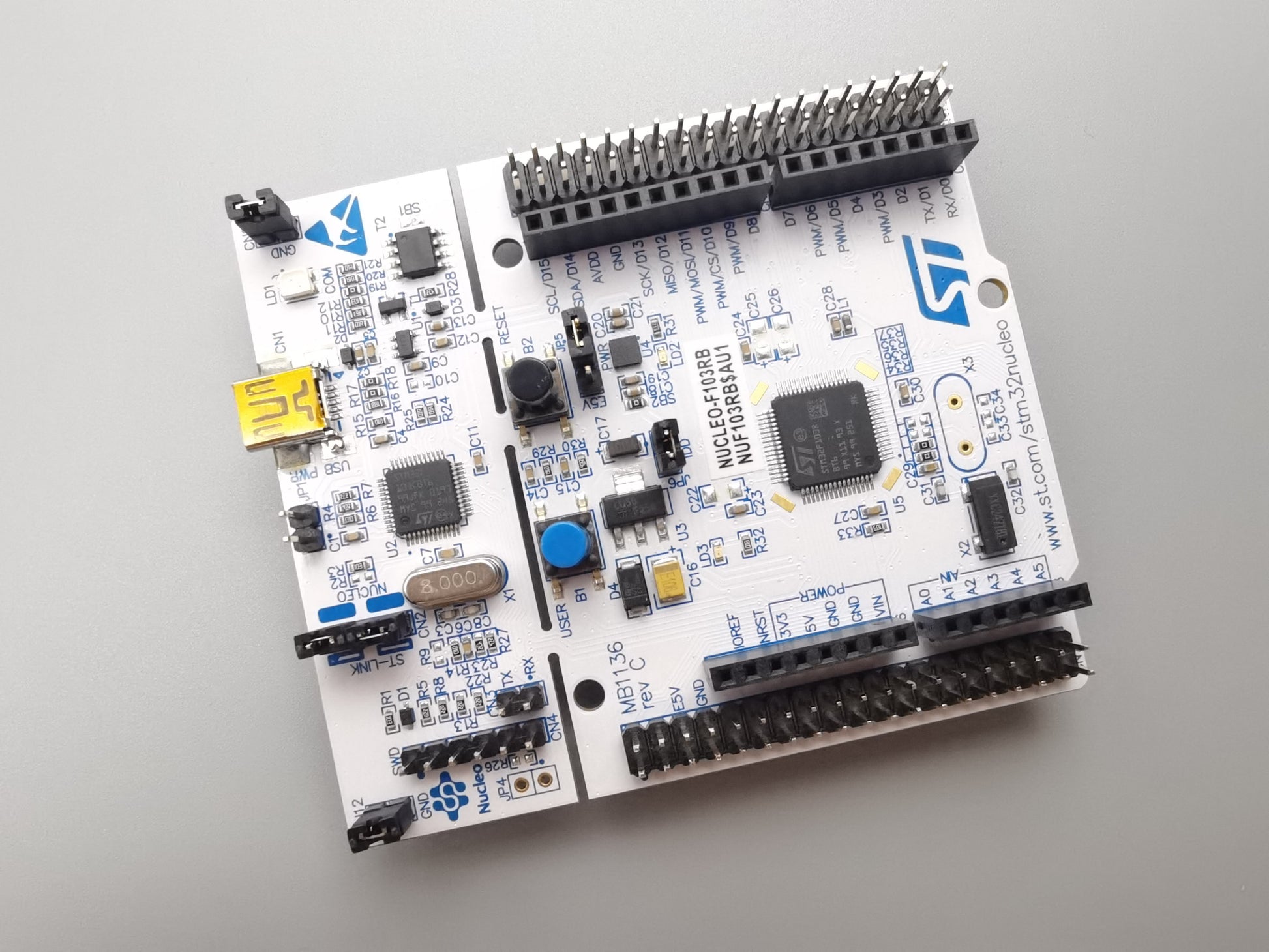

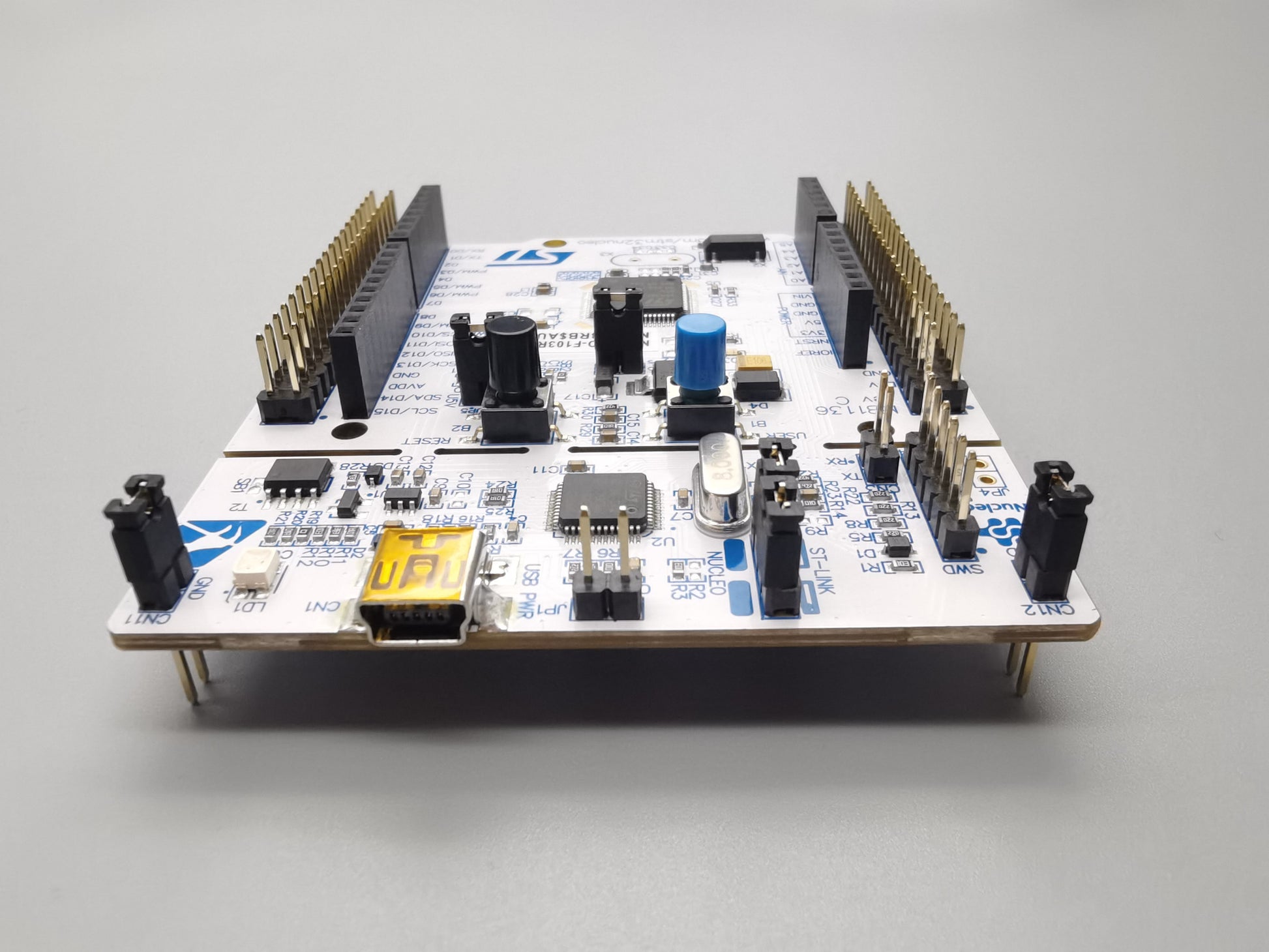

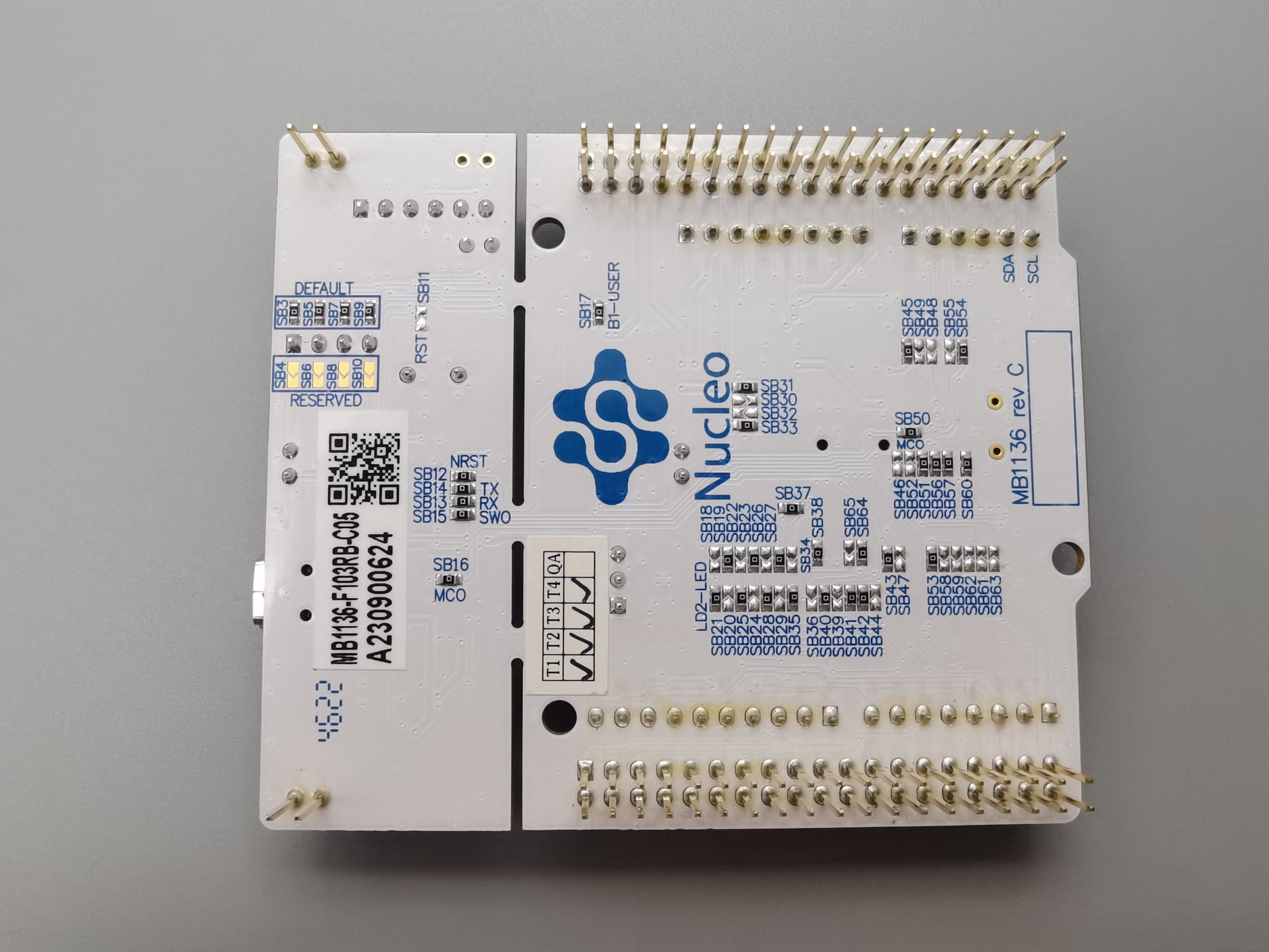

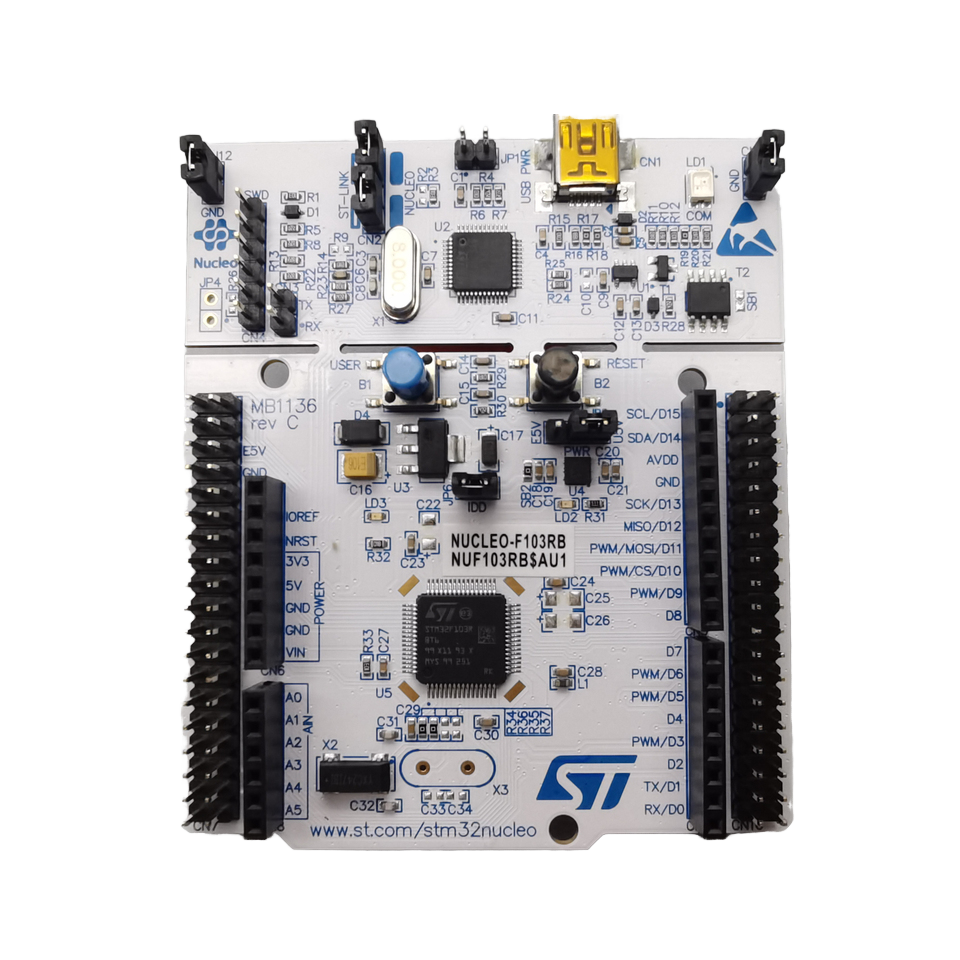

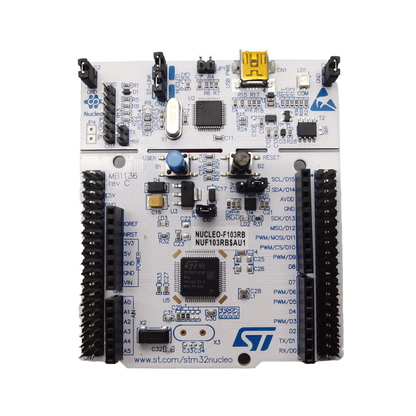

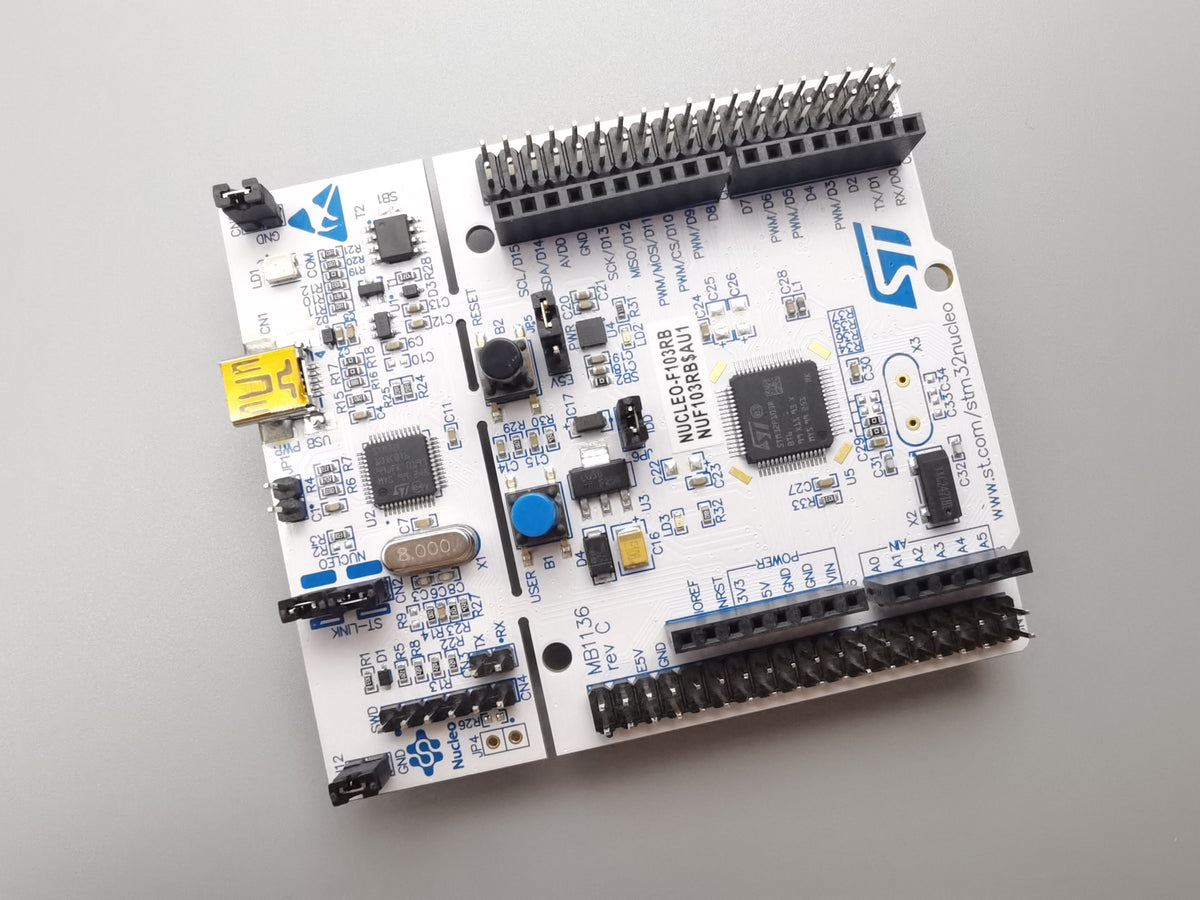

STM32 Development Board Nucleo F103RB Cortex M3 MCU Board

Development board based on Cortex M3 microcontroller in LQFP64 package
- Onboard USB interface for programming, debugging, and power supply
- Arduino style headers and extended pin headers for easy expansion
- User LED and push buttons available for testing and learning
- Designed for embedded systems education and prototype development
- Suitable for students, hobby projects, and firmware experimentation

The STM32 development tools Nucleo F103RB board is a compact and versatile platform designed for learning and developing embedded applications. It is built around a Cortex M3 based microcontroller and provides essential hardware resources required for firmware development, testing, and prototyping. The board layout supports easy access to microcontroller pins and common peripherals, making it suitable for both beginners and experienced developers.

This development board is commonly used for experimenting with microcontroller programming, peripheral interfacing, and real time embedded control. It allows users to write, upload, and debug firmware directly through the onboard USB interface without the need for additional hardware. The presence of user LEDs and push buttons helps in quick functional testing and demonstration programs.

Key benefits include simplified hardware setup, direct USB connectivity, and support for expansion through standard header layouts. The board enables faster development cycles by reducing wiring complexity and offering reliable onboard debugging support. Its standard form factor also makes it easy to integrate into breadboard setups or custom fixtures.

The board is compatible with a wide range of embedded development environments and supports applications such as sensor interfacing, motor control experiments, communication protocol testing, and academic laboratory work. It is suitable for embedded system courses, industrial training, and personal development projects.

The package includes one fully assembled STM32 Nucleo F103RB development board, ready for programming and use.

SPECIFICATIONS
Product Type : Microcontroller Development Board
Model : Nucleo F103RB
Microcontroller Architecture : Cortex M3
Microcontroller Package : LQFP64
Core Bit Width : 32 bit
Programming Interface : USB
Debug Interface : Onboard debugger
Expansion Headers : Arduino style and extended headers
User Interface : User LED and reset button
Power Input : USB or external supply
Board Type : Assembled development board
Country of Assembly : China

KEY FEATURES
- 32 bit Cortex M3 based microcontroller development platform
- Integrated USB debugger and programmer interface
- Arduino compatible header layout for shield connections
- Extended pin headers for full I O access
- Onboard user LED and reset button
- Powered through USB or external supply
- Designed for embedded software and hardware testing
