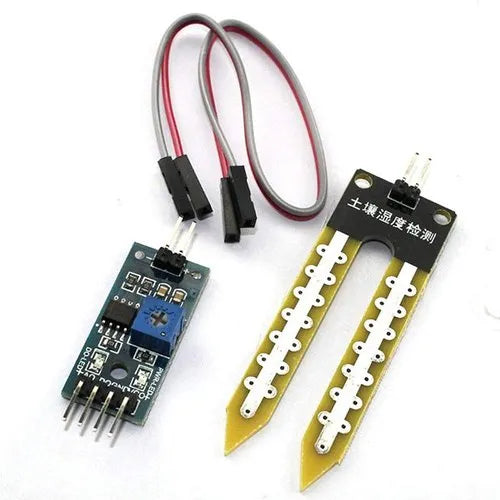

Soil Moisture Sensor

Sensor for measuring soil moisture content

Features:

• Convenient for sensing soil moisture levels to prevent overwatering or underwatering.
• 2 probes act as variable resistors, allowing current to pass through soil to measure resistance and moisture.
• Fixed bolt hole for easy installation.
• Power indicator (red) and digital switching output indicator (green).
• Integrated LM393 comparator chip for stability.
• Dual output mode.

Specifications:

• Dimensions:
  • Panel PCB: Approx. 3x1.5cm.
  • Soil Probe: Approx. 6cm.
  • Cable Length: Approx. 21cm.
• Functionality: Detects soil moisture and ambient humidity.
• Output: High when soil is dry, low when soil is wet.
• Applications: Used in automatic watering systems.

Technical Details:

• Operating Voltage: 3.3V~5V.
• Interface:
  • VCC: 3.3V-5V.
  • GND: Ground.
  • DO: Digital output (0 and 1).
  • AO: Analog output interface.
