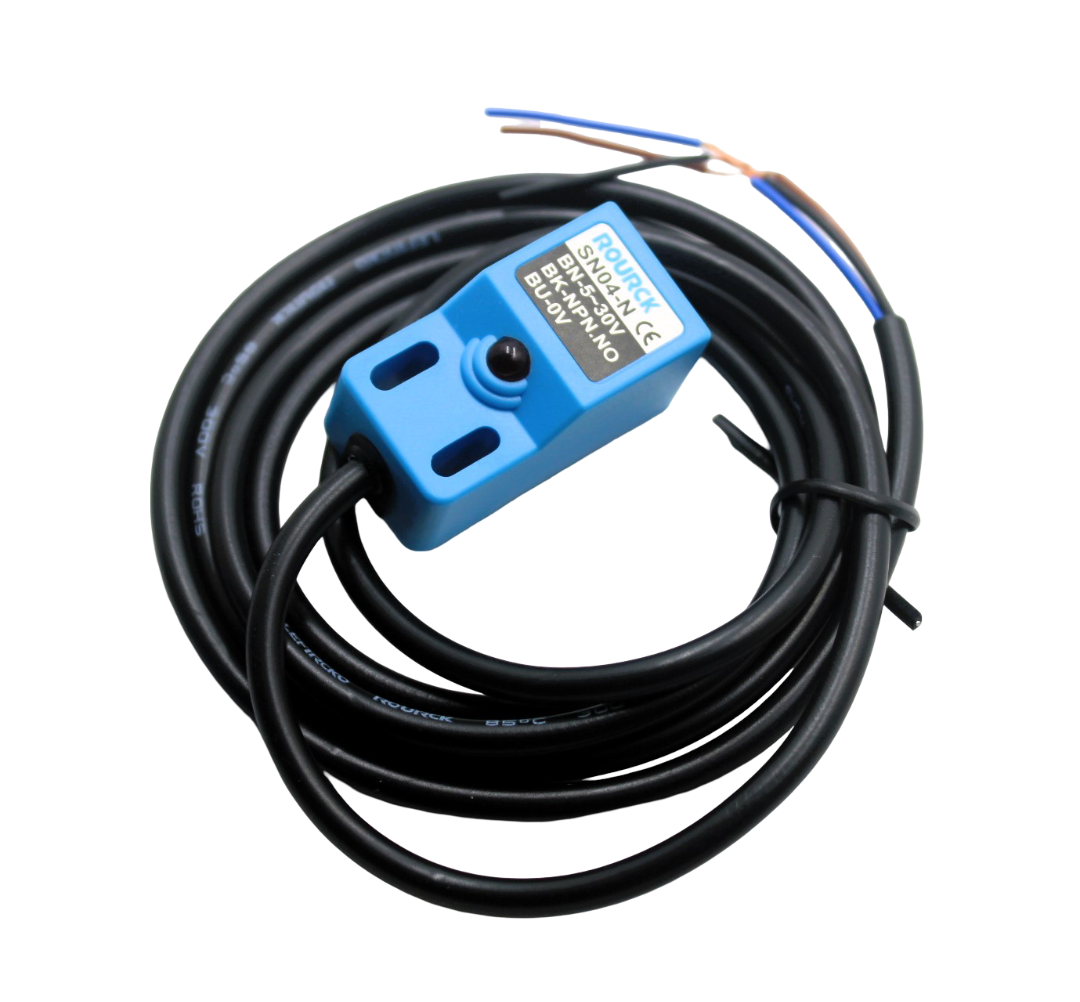

SN04-N Inductive Proximity Sensor NPN NO 5mm | Metal Detection Sensor 5V–30V

This is an SN04-N Inductive Proximity Sensor used to detect metal objects without touching them. It can sense metallic objects up to 5mm distance and gives a signal output when detection happens.

What does it do?

This sensor replaces physical switches. Instead of touching, it detects metal automatically.

👉 Example:

• Detect metal parts on machines
• Count objects on conveyor
• Use as limit switch in automation

How it works?

When a metal object comes close to the sensor (within 5mm), the sensor detects it and sends a signal output.

It also has an LED indicator:

• ON → Power supply
• Bright → Object detected

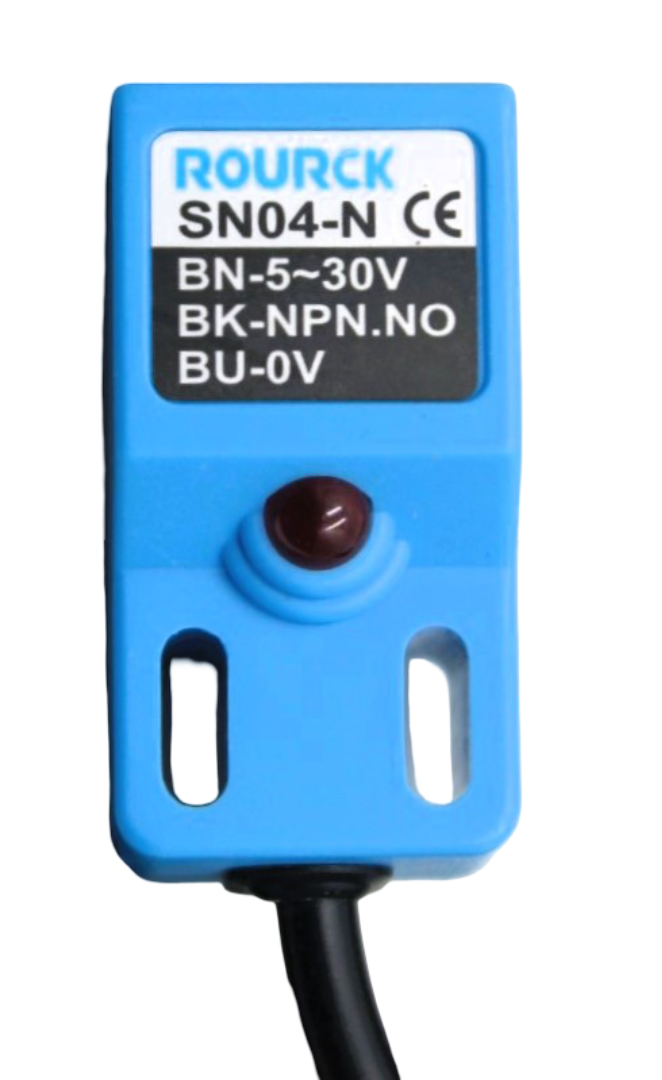

How to connect?

• Brown wire → VCC (5V to 30V)
• Blue wire → GND
• Black wire → Signal Output

Key Features

• Inductive metal detection sensor
• Detection distance up to 5mm
• NPN Normally Open (NO) output
• Wide voltage support (5V to 30V)
• Low current consumption (max 5mA)
• Fast response (up to 500Hz)
• Built-in LED indicator
• High accuracy and repeatability
• Dustproof, waterproof (IP67)
• Strong body with vibration resistance
• Reverse polarity and short circuit protection

Applications

• Industrial automation systems
• Conveyor belt object detection
• Robotics projects
• Position sensing
• Limit switch replacement
• PLC control systems
• Metal object counting systems

Technical Details

• Model: SN04-N
• Type: Inductive Proximity Sensor
• Output Type: NPN Normally Open (NO)
• Operating Voltage: 5V – 30V DC
• Current Consumption: Max 5mA
• Detection Distance: 5mm
• Response Frequency: 500Hz
• Protection Class: IP67
• Cable Length: Approx. 1–1.4 meter

Package Includes

• 1 × SN04-N Inductive Proximity Sensor
