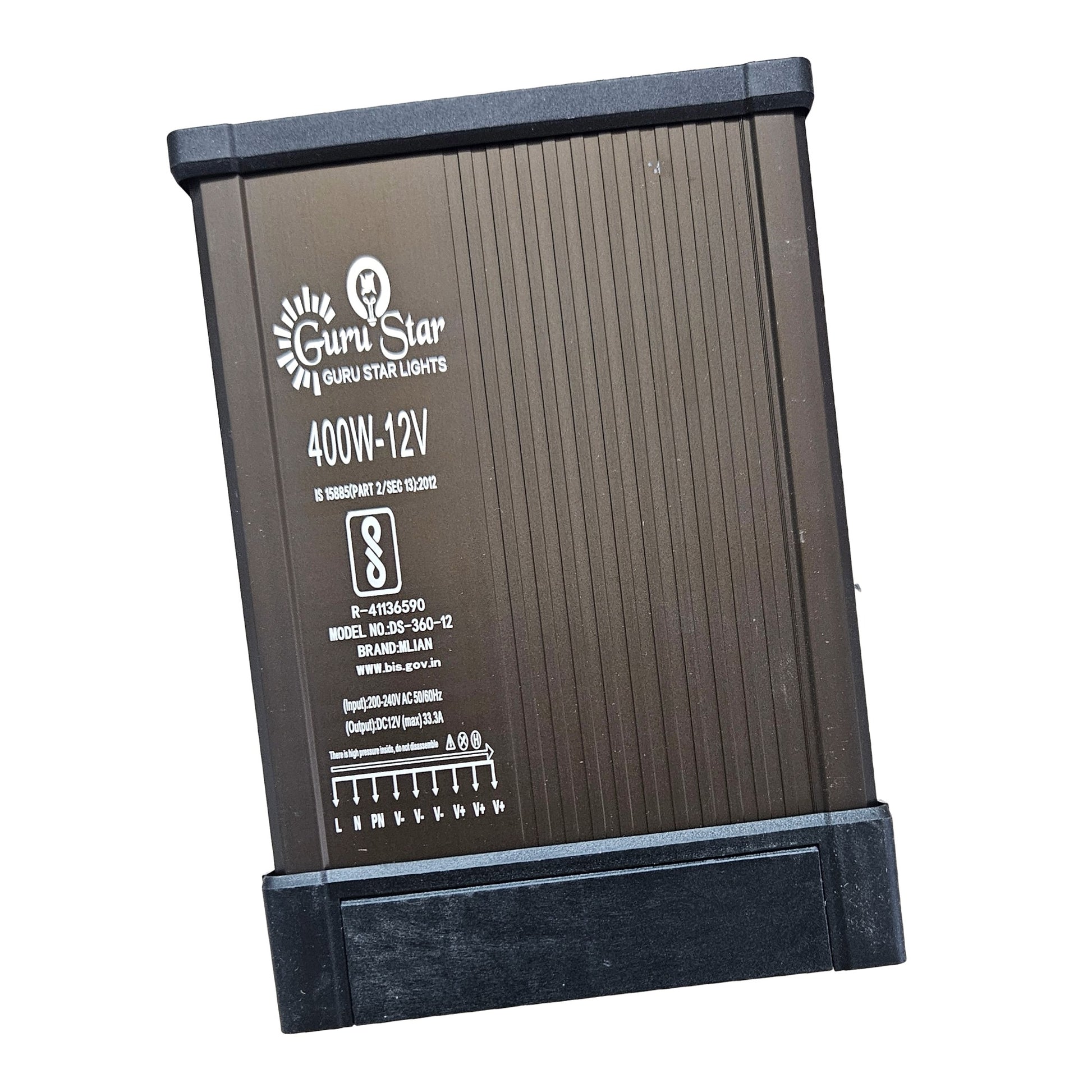

Small 12V 400W LED Rainproof Power Supply SMPS – Metal Body AC to DC LED Driver
Small 12V 400W LED Rainproof Power Supply SMPS – Metal Body AC to DC LED Driver
Description
This Small 12V 400W LED Rainproof Power Supply is designed for powering 12V LED lights, LED strip lights, signage boards, advertisement lights, building lighting, CCTV-related lighting, and other 12V DC applications.
This is the small model 12V 400W rainproof SMPS, suitable where compact size is required. Please note: big model 12V 400W LED power supply is also available as another product on our website.

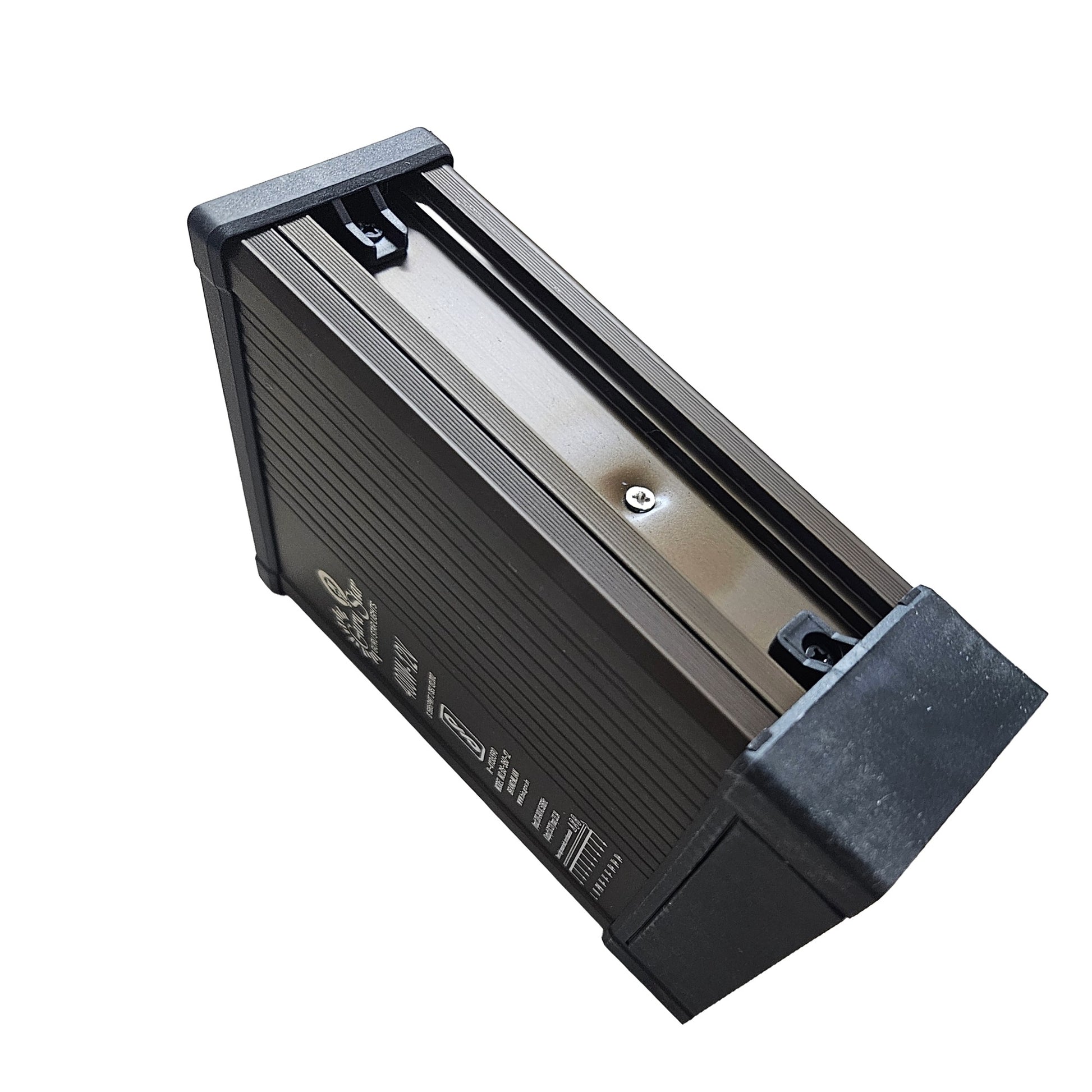

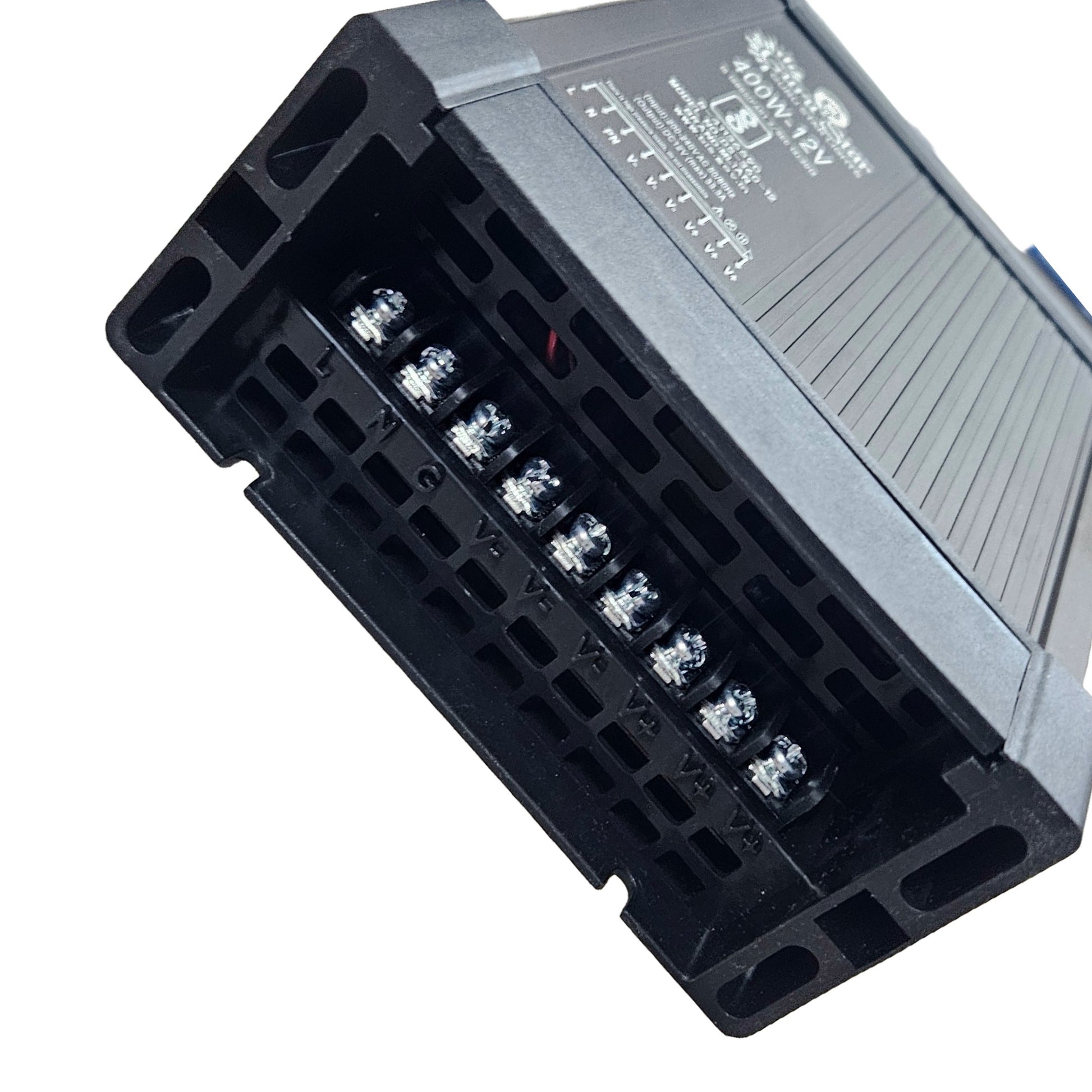

The metal aluminium body helps with better heat dissipation, and the rainproof design makes it suitable for protected outdoor LED lighting use. It comes with screw terminal input and output connections for easy wiring. Multiple output terminals are provided for convenient LED load connection.
Specifications
| Specification | Details |
|---|---|
| Product Name | Small 12V 400W LED Rainproof Power Supply |
| Brand | Guru Star Lights |
| Model | GS-400-12 |
| Output Voltage | 12V DC |
| Output Power | 400W |
| Output Current | Approx. 33A Max |
| Input Voltage | 200V–240V AC |
| Input Frequency | 50/60Hz |
| Body Type | Aluminium Metal Body |
| Design | Rainproof / Waterproof Type |
| Cooling | Built-in cooling design |
| Terminal Type | Screw Terminal |
| Input Terminals | L, N, FG |
| Output Terminals | Multiple V+ and V- terminals |
| Application | LED strip, LED module, LED signage, building lighting, advertisement board, security lighting |
| Suitable For | 12V DC LED lighting projects |
| Model Type | Small Model |
Key Features
Stable 12V DC output for LED lighting applications.
Compact small model design compared to big-size 400W power supply.
Rainproof metal body suitable for protected outdoor use.
Multiple V+ and V- output terminals for easy load connection.
Suitable for LED strip lights, sign boards, display lighting and building decoration lighting.
