SMA Female Straight PCB Mount RF Connector – Gold-Plated 50 Ohm Coaxial Antenna Socket
SMA Female Straight PCB Mount RF Connector – Gold-Plated 50 Ohm Coaxial Antenna Socket
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

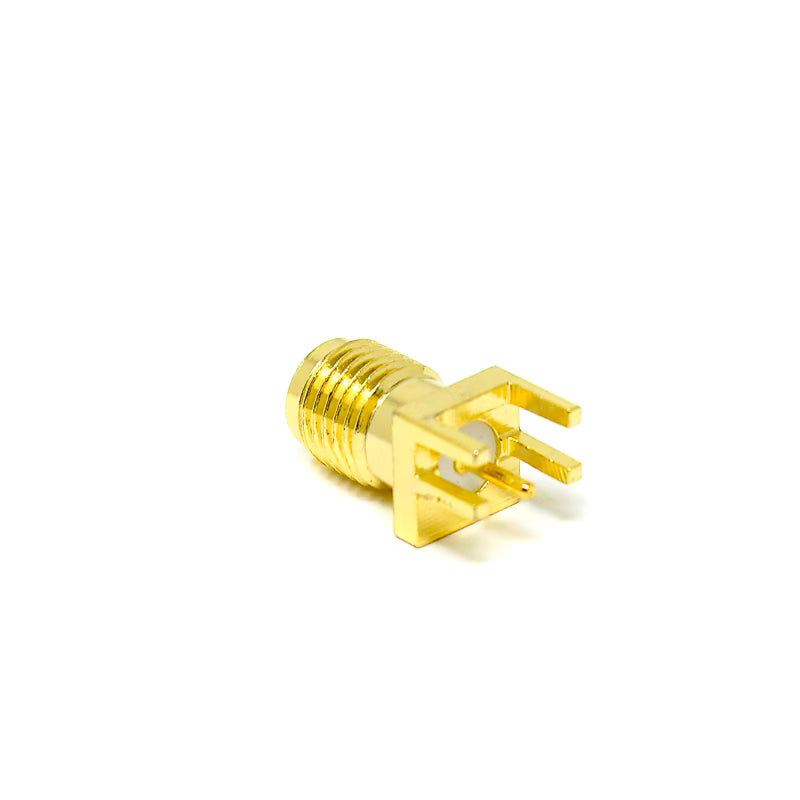

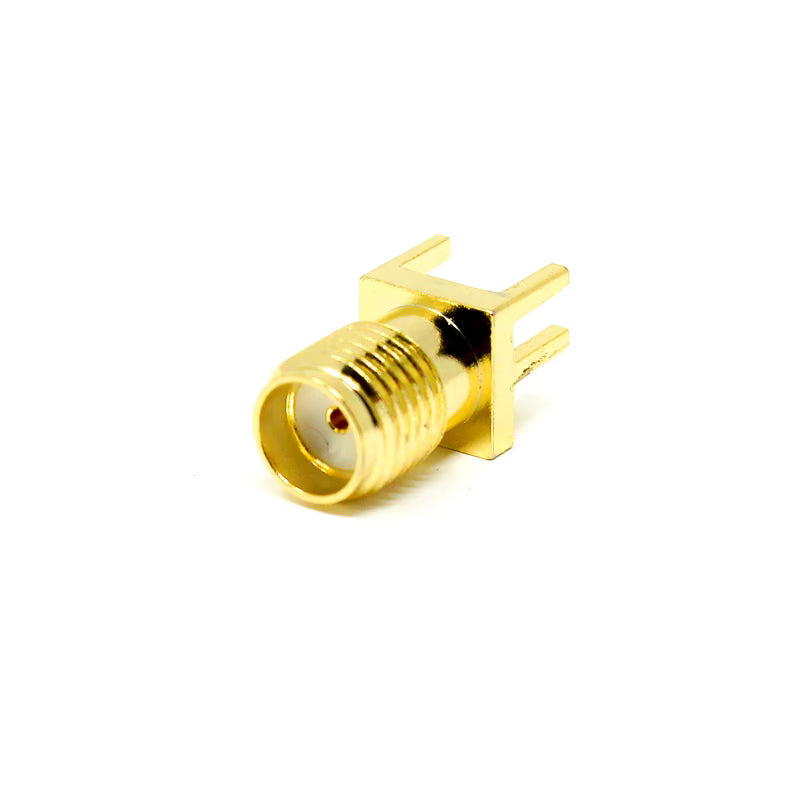

The SMA Female Straight Connector is a compact RF coaxial connector designed for mounting directly onto printed circuit boards. It features a female SMA threaded interface, straight orientation, and PCB solder terminals for creating a secure electrical and mechanical connection.
This connector is commonly used for connecting antennas and RF cables to wireless communication boards, GPS modules, GSM modules, LoRa devices, Wi-Fi equipment, RF amplifiers, signal generators, telemetry systems, and other high-frequency electronic circuits.
Its gold-plated metal body offers good conductivity, reliable signal transmission, corrosion resistance, and long-term durability. The threaded SMA connection helps prevent accidental disconnection and provides a stable RF connection for prototyping, repairs, custom PCB projects, and communication equipment.
Specifications
| Specification | Details |
|---|---|
| Product Type | SMA RF Coaxial Connector |
| Connector Gender | Female |
| Orientation | Straight |
| Mounting Type | PCB Mount |
| PCB Connection | Solder Terminal |
| Interface Type | Threaded SMA Socket |
| Typical Impedance | 50 Ohm |
| Body Material | Metal |
| Surface Finish | Gold-Plated |
| Contact Type | Female Centre Socket |
| Installation Method | PCB Soldering |
| Connection Style | Screw-Lock Threaded Connection |
| Application | RF Signal and Antenna Connection |
| Suitable For | Wi-Fi, GPS, GSM, LoRa and RF Projects |
| Package Includes | 1 × SMA Female Straight PCB Connector |
Note: Frequency rating, PCB thickness compatibility, pin dimensions, and exact electrical performance may vary by manufacturing batch. Please verify the connector dimensions before designing the PCB footprint.
