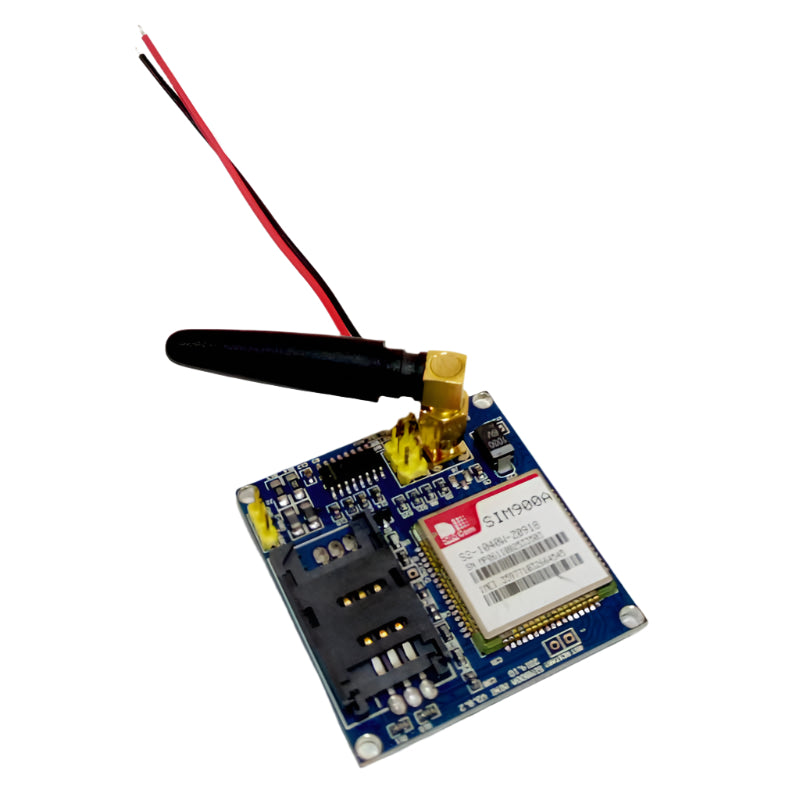

SIM900A GSM Module

The SIM900A GSM Module is a popular communication module that allows devices to communicate via GSM (Global System for Mobile Communications) networks. It supports SMS, voice calls, and GPRS (General Packet Radio Service), making it suitable for a wide range of applications, including remote control, monitoring, and IoT systems. Here’s an overview of the SIM900A GSM module:

Key Features:

1. GSM/GPRS Communication:

   • It can send/receive SMS (Short Message Service) and make/receive voice calls over GSM networks.
   • It supports GPRS for data communication, enabling the module to connect to the internet via a mobile network.

2. Quad-Band Support:

   • The module operates on four frequency bands: 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz, making it compatible with most mobile networks worldwide.

3. SIM Card Slot:

   • The module has a slot for inserting a standard SIM card, which allows it to connect to the GSM network.

4. Control via Serial Communication (UART):

   • The SIM900A can be controlled through UART (Universal Asynchronous Receiver/Transmitter) using commands (AT commands).
   • It can be interfaced with microcontrollers like Arduino, Raspberry Pi, or other systems that support UART communication.

5. SMS and Voice Call Support:

   • It allows you to send and receive SMS messages and make voice calls to and from mobile phones.
   • You can use it for applications like remote control systems, alarms, and notifications.

6. GPRS (Internet):

   • The GPRS functionality allows the module to connect to the internet for low-speed data communication. This can be useful for sending data to a remote server or retrieving data from the internet.

7. Low Power Consumption:

   • The module is designed to consume low power, which is ideal for battery-powered projects and devices.

8. Built-in Antenna:

   • Some SIM900A modules come with a built-in antenna, while others may have an external antenna for improved signal reception.

Pinout of the SIM900A GSM Module:

The module typically has several pins for interfacing with other devices. The key pins are:

• VCC: Power supply input (usually 3.4V to 4.4V).
• GND: Ground.
• TX: Serial Transmit pin (sends data to the microcontroller).
• RX: Serial Receive pin (receives data from the microcontroller).
• RST: Reset pin (used to reset the module).
• Net_light: Indicates the status of the GSM network (blinks when connected).
• SIM Card Slot: For inserting the SIM card.
• Antenna: For attaching an external antenna for better signal reception.
