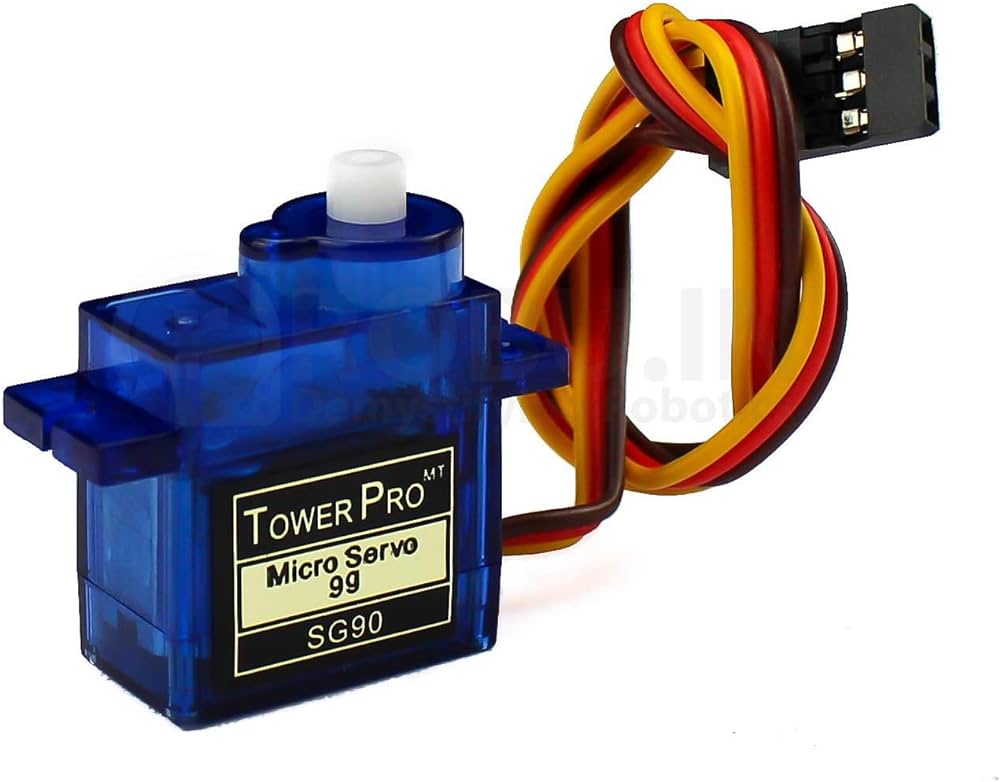

SG-90 Servo Motor

SG-90 Servo Motor

Features:

• Lightweight motor designed to work with most radio control systems.
• 180 degree rotation servo.
• Suitable for R/C helicopters, planes, cars, boats, and trucks.
• High resolution, accurate positioning.
• Lightweight with fast control response.
• Constant torque throughout the servo travel range.
• Excellent holding power.

Specifications:

• Dimensions: Motor (LxWxH): 23x12.6x30mm, Cable length: 25cm.
• SG90 Motor:
  • Operating Voltage (VDC): 3.0 ~ 7.2.
  • Operating Speed @4.8V: 0.12 sec/60°.
  • Operating Speed @6.6V: 0.1 sec/60°.
  • Stall Torque @ 4.8V (Kg-Cm): 1.2.
  • Operating Temperature (°C): -30 to 60.
  • Dead Band Width (μs): 5.
  • Gear Type: Glass Fiber.
  • Rotational Degree: 360º.
  • Servo Plug: JR.
  • Wire Description: Red (Positive), Brown (Negative), Orange (Signal).

Usage:

• Can be controlled using servo code, hardware, or library.
• Ideal for beginners in robotics and basic movement projects.
• Designed for continuous rotation and easy interfacing with compatible microcontrollers.
