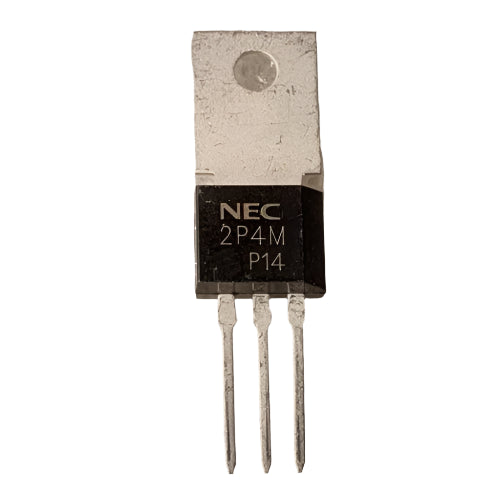

SCR-2P4M

The 2P4M SCR (Silicon Controlled Rectifier) is a three-terminal thyristor used for switching and power control applications. It acts as a latching electronic switch that turns ON when a gate trigger is applied and remains ON until the current falls below the holding current.

• Product: 2P4M Silicon Controlled Rectifier (SCR)
• Device Type: Thyristor (SCR)
• Repetitive Peak Off-State Voltage (VDRM): 400 V
• Average On-State Current (IT(AV)): 2 A
• Surge On-State Current (ITSM): 20 A (typical)
• Gate Trigger Voltage (VGT): 0.8–1.5 V
• Gate Trigger Current (IGT): 0.2 mA (typical)
• On-State Voltage Drop (VTM): Approximately 1.8 V
• Terminals: Anode (A), Cathode (K), Gate (G)
