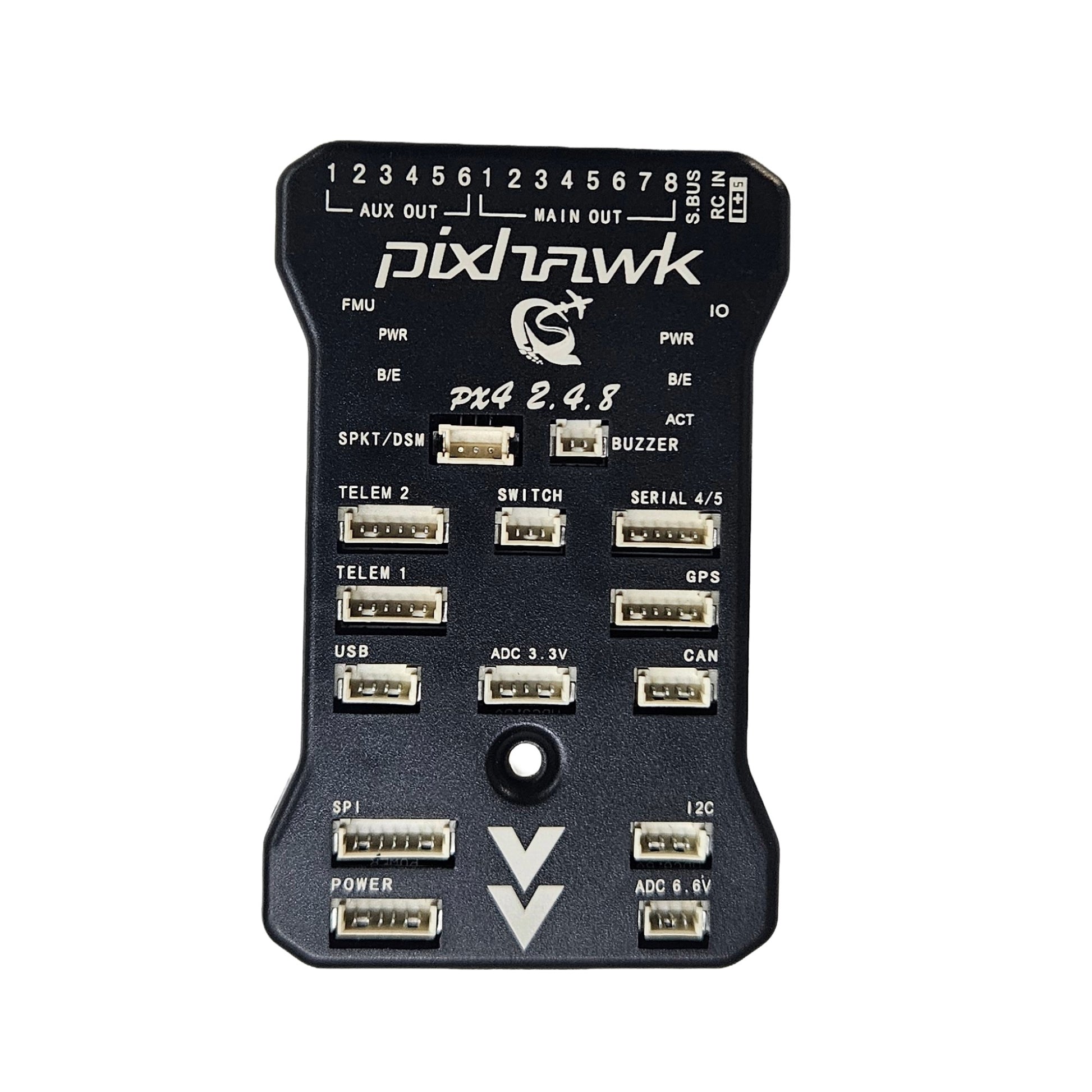

Pixhawk 2.4.8 PX4 Autopilot Flight Controller Kit with Buzzer, Safety Switch, Memory Card Adapter and Cables
Pixhawk 2.4.8 PX4 Autopilot Flight Controller Kit with Buzzer, Safety Switch, Memory Card Adapter and Cables
Description
The Pixhawk 2.4.8 PX4 Autopilot Flight Controller Kit is designed for building and upgrading multirotor drones, fixed-wing aircraft, rovers and other autonomous robotics platforms.
It provides dedicated connections for GPS, telemetry, CAN, I²C, SPI, serial devices, power monitoring, buzzer, safety switch and external sensors. The controller also includes separate main and auxiliary output channels for connecting ESCs, motors, servos and other actuators.
This kit includes the Pixhawk 2.4.8 controller, buzzer, external safety switch, memory-card adapter and compatible connection cables. It is suitable for students, drone developers, robotics enthusiasts, researchers and UAV project builders.
The controller can be used with compatible open-source autopilot firmware and ground-control software for flight configuration, sensor calibration, mission planning and autonomous navigation.
Key Features
- Pixhawk 2.4.8 autopilot flight controller
- Suitable for multirotor, fixed-wing and rover projects
- Main and auxiliary PWM output channels
- Dedicated GPS and telemetry ports
- CAN, I²C and SPI connectivity
- Serial communication support
- External buzzer connection
- External safety-switch connection
- Power-monitoring interface
- MicroSD memory-card support through included adapter
- Supports autonomous mission-based projects
- Compact protective enclosure
- Multiple labelled ports for easy connection
Specifications
| Specification | Details |
|---|---|
| Product Type | Autopilot Flight Controller Kit |
| Model | Pixhawk 2.4.8 |
| Firmware Platform | Compatible with PX4 and other supported autopilot firmware |
| Supported Vehicle Types | Multirotor, Fixed-Wing, Rover and Robotics Platforms |
| Main Outputs | 8 Channels |
| Auxiliary Outputs | 6 Channels |
| Output Use | ESC, Motor and Servo Control |
| GPS Port | Available |
| Telemetry Ports | TELEM 1 and TELEM 2 |
| Serial Port | Serial 4/5 |
| CAN Interface | Available |
| I²C Interface | Available |
| SPI Interface | Available |
| USB Interface | Available |
| Power Port | Available |
| ADC Inputs | 3.3V and 6.6V ADC Ports |
| Safety Switch Port | Available |
| Buzzer Port | Available |
| Speaker/DSM Port | Available |
| Memory Storage | External Memory-Card Adapter Included |
| Receiver Input | RC Input Available |
| Subsystem Input | S.BUS Available |
| Enclosure Colour | Black |
| Application | UAV Flight Control and Autonomous Robotics |
| Package Contents | Pixhawk 2.4.8 Controller, Buzzer, Safety Switch, Memory-Card Adapter and Connection Cables |

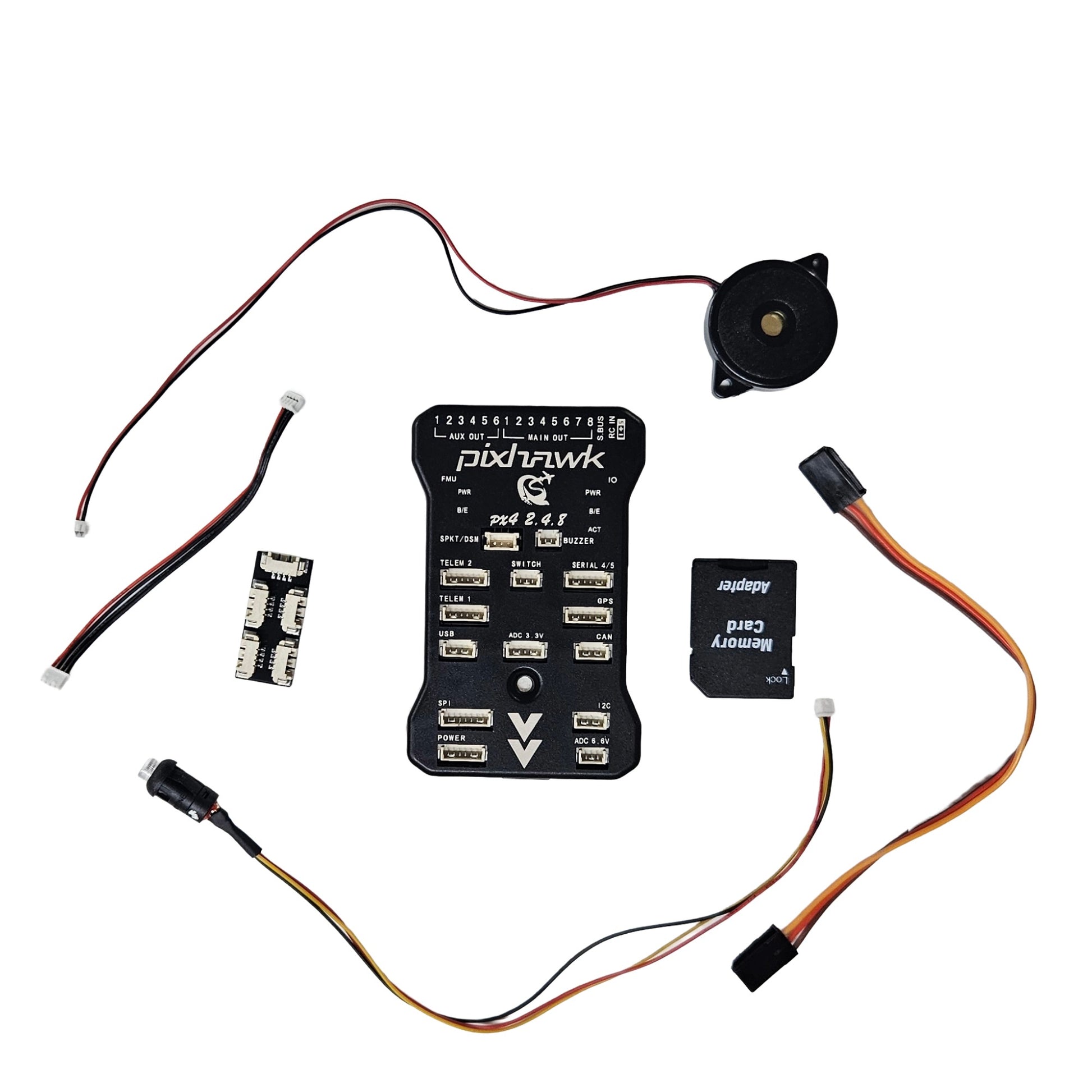

Kit Contents
- 1 × Pixhawk 2.4.8 flight controller
- 1 × External buzzer
- 1 × Safety switch with indicator
- 1 × Memory-card adapter
- Connection cables as shown in the product image
Applications
- Quadcopter flight controllers
- Hexacopter and octocopter projects
- Fixed-wing UAV projects
- Autonomous drone development
- Agricultural drone projects
- Aerial mapping systems
- Survey and inspection drones
- Unmanned ground vehicles
- GPS waypoint navigation
- Robotics research projects
- Engineering student projects
- Drone prototyping and testing
