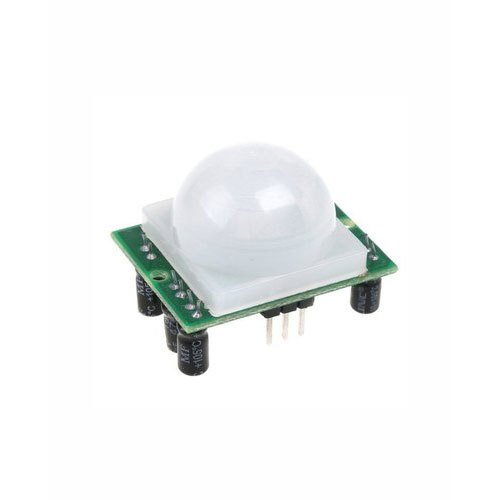

PIR Motion Sensor

PIR Motion Sensor

A Passive Infrared (PIR) Motion Sensor is an electronic sensor that detects the presence and movement of people or objects by sensing changes in infrared (IR) radiation emitted from warm bodies. The sensor does not emit any energy itself; instead, it passively monitors infrared radiation in its field of view.

• Sensor Type: Passive Infrared (PIR)
• Operating Voltage: 4.5V – 20V DC
• Current Consumption: < 50 µA
• Detection Range: 3 – 7 meters (adjustable)
• Detection Angle: Up to 120°
• Output: Digital HIGH/LOW signal
• Trigger Modes: Single Trigger / Repeat Trigger
• Delay Time: Adjustable
• Operating Temperature: -15°C to +70°C
• Applications: Motion detection, security alarms, automatic lighting, smart home systems, and robotics projects.
