MAJESTRONICZ
PIC 16F and 18F Microcontroller Development Board with Serial Port and IC Socket
PIC 16F and 18F Microcontroller Development Board with Serial Port and IC Socket
Regular price
Rs. 360.00
Regular price
Sale price
Rs. 360.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

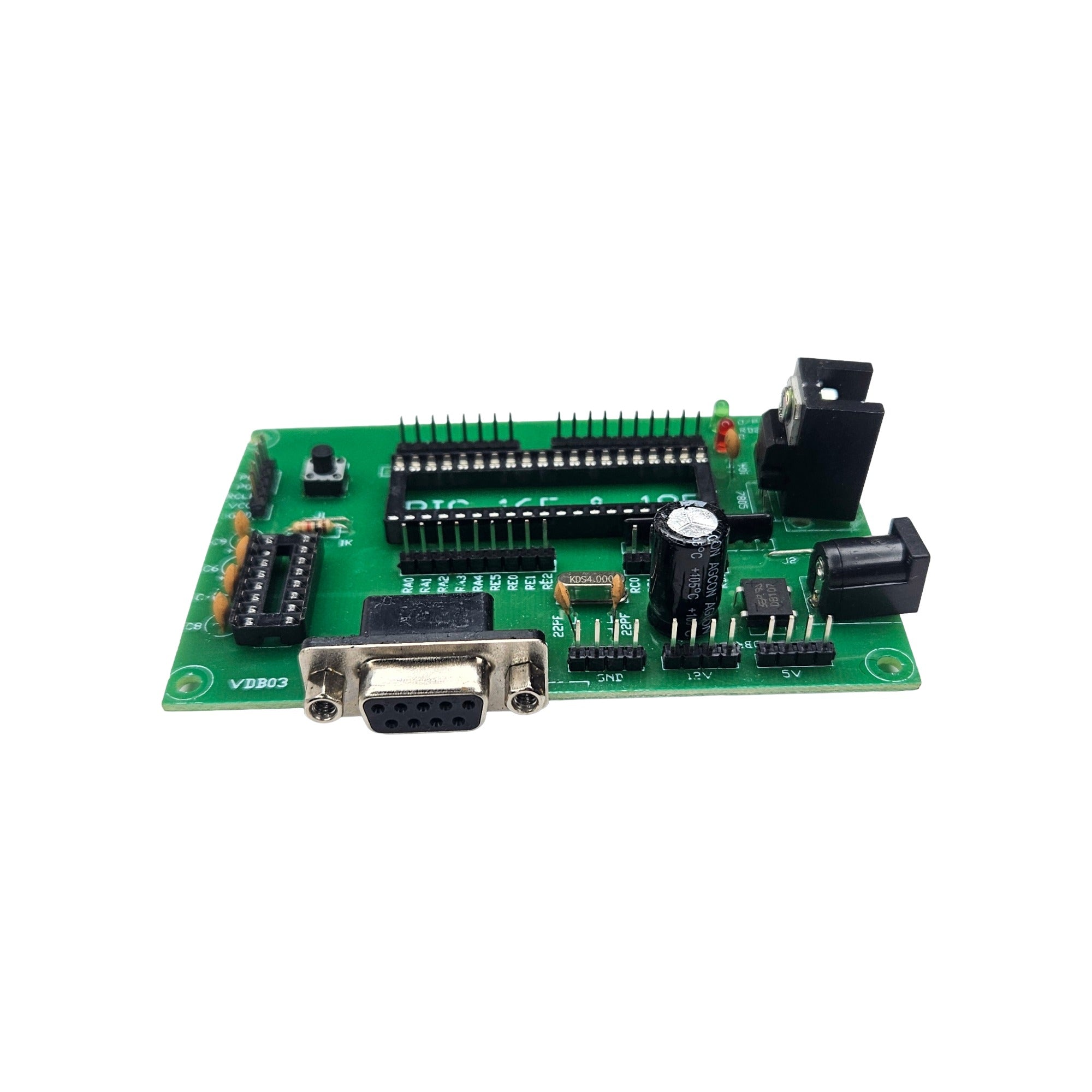

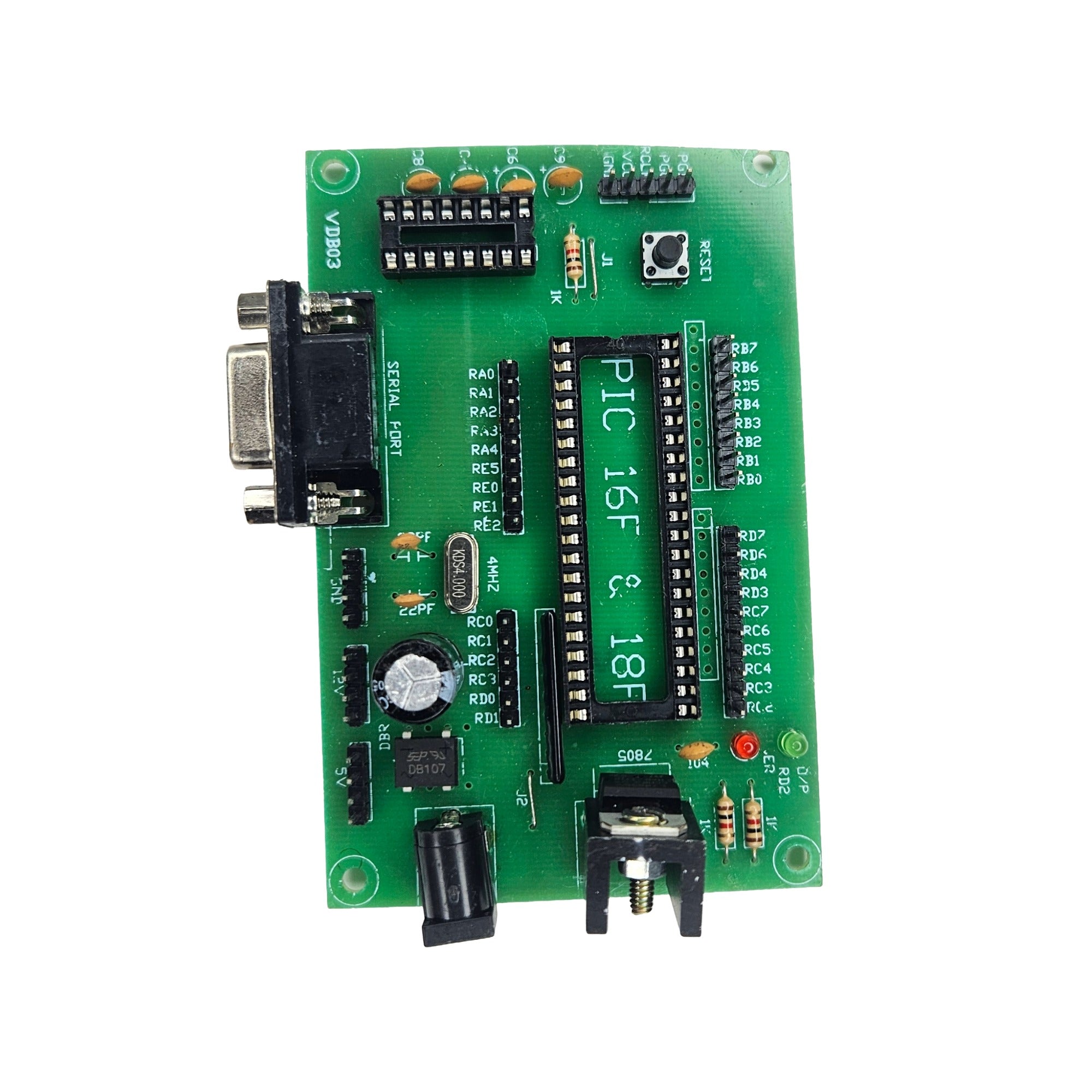

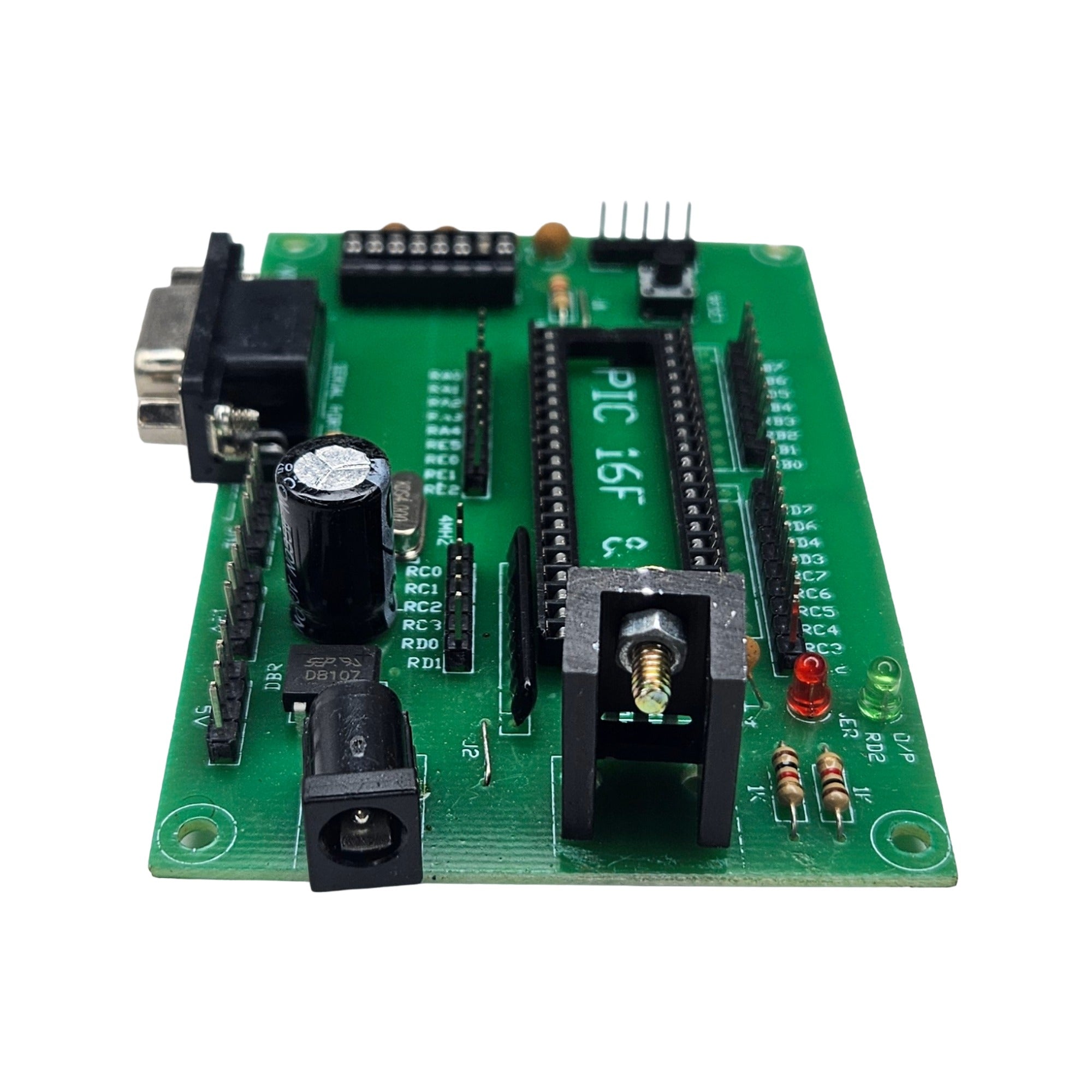

This PIC microcontroller development board is designed for compatible PIC 16F and 18F series microcontrollers. The PCB includes a large DIP IC socket marked “PIC 16F & 18F,” a separate smaller IC socket, a DB9 serial port, reset push button, 4MHz crystal, voltage regulator section, DC power jack and multiple labelled I/O pin headers.
The board provides access to ports marked RA, RB, RC, RD and RE, making it suitable for PIC microcontroller programming practice, circuit development, embedded-system experiments and electronics laboratory use. Microcontroller ICs are not shown installed in the image.
Specifications
| Specification | Details |
|---|---|
| Product type | PIC microcontroller development board |
| Supported series marking | PIC 16F and 18F |
| Main IC socket | Large DIP socket |
| Additional IC socket | Smaller DIP socket |
| Communication interface | DB9 serial port |
| Crystal marking | 4MHz |
| Reset control | On-board tactile reset button |
| Voltage regulator marking | 7805 |
| Power input | DC barrel jack |
| Supply header markings | 5V and 15V |
| Port headers | RA, RB, RC, RD and RE |
| Indicator LEDs | Red and green LEDs |
| PCB colour | Green |
| Mounting holes | 4 |
| Microcontroller included | Not shown |
| Package contents | 1 PIC development board |
