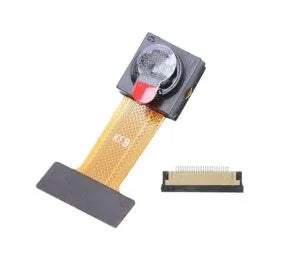

OV7670 Only Camera -0.3MP

The OV7670 is a 0.3MP (640x480 pixels) CMOS camera module commonly used in embedded vision applications. It is compact, low-cost, and widely used with microcontrollers like Arduino, ESP32, and Raspberry Pi for basic image processing and video capture.

Key Features of OV7670 Camera Module:

✅ Resolution: 0.3 Megapixels (640×480 VGA)
✅ Pixel Size: 3.6μm × 3.6μm
✅ Frame Rate: 30 FPS (VGA mode)
✅ Interface: 8-bit parallel interface (FIFO-less version)
✅ Lens: Fixed focus
✅ Operating Voltage: 3.3V (logic level), requires level shifting for 5V systems like Arduino
✅ Communication: SCCB (Similar to I2C) for configuration
✅ Image Format: RGB565, YUV422, GRB422
✅ Low Power Consumption
