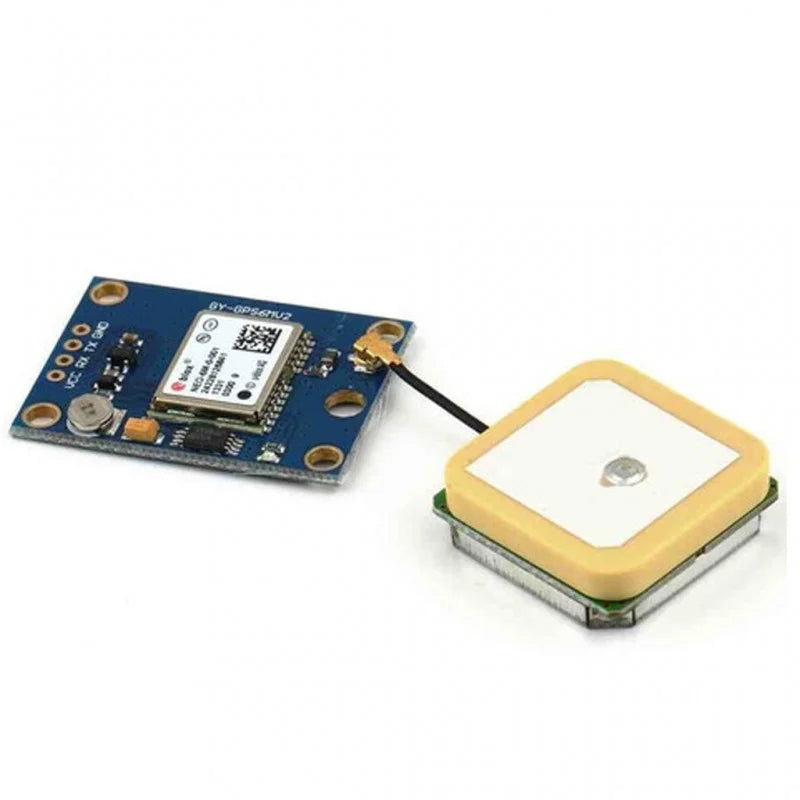

NEO-6M GPS Module

NEO-6M TTL GPS Module Specifications

• Technology: Latest technology from Ublox for improved positioning information.
• Antenna: Built-in 25x25mm active GPS antenna with a UART TTL socket.
• Update Rate: 5Hz position update rate
• Memory: Includes EEPROM for storing configuration settings.
• Backup: Rechargeable battery for backup.
• Satellite Systems: Supports SBAS (WAAS, EGNOS, MSAS, GAGAN) for enhanced accuracy.
• Dimensions:
  • Cable Length: 10 cm
  • Antenna: 25x25x7 mm
  • GPS Board: 22x30x4 mm
• Applications: Suitable for GPS tracking and positioning in cars and other mobile applications.
• Performance:
  • Position Update Rate: 5Hz
  • Operating Temperature Range: -40°C to +85°C
  • Cold Start Time: 38 seconds
  • Hot Start Time: 1 second
  • Supply Voltage: 3.3V
  • Baud Rate: 4800 to 115200 (default 9600)
  • SuperSense Indoor GPS: -162 dBm tracking sensitivity
