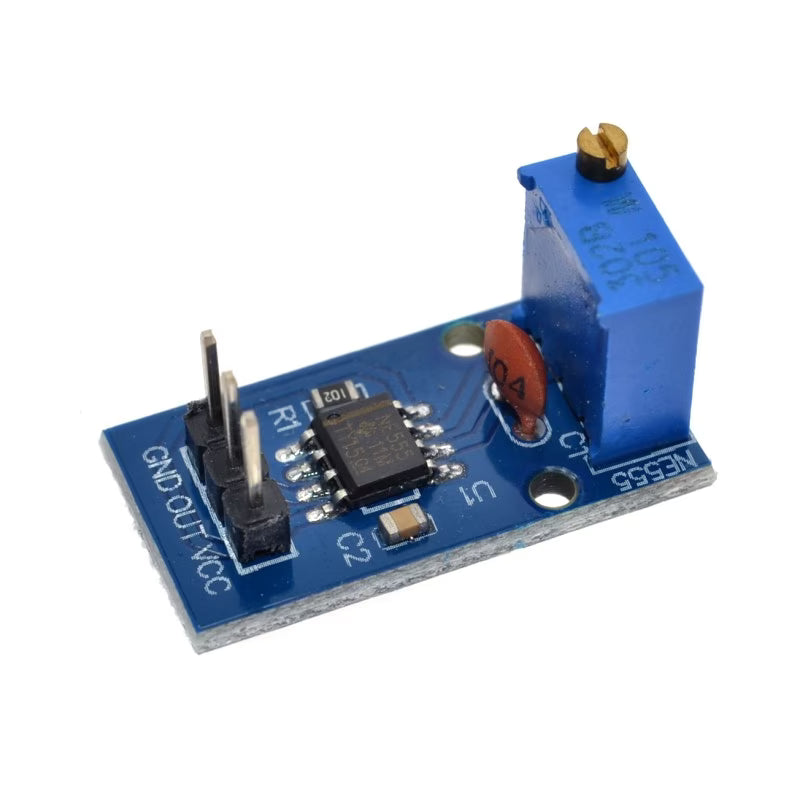

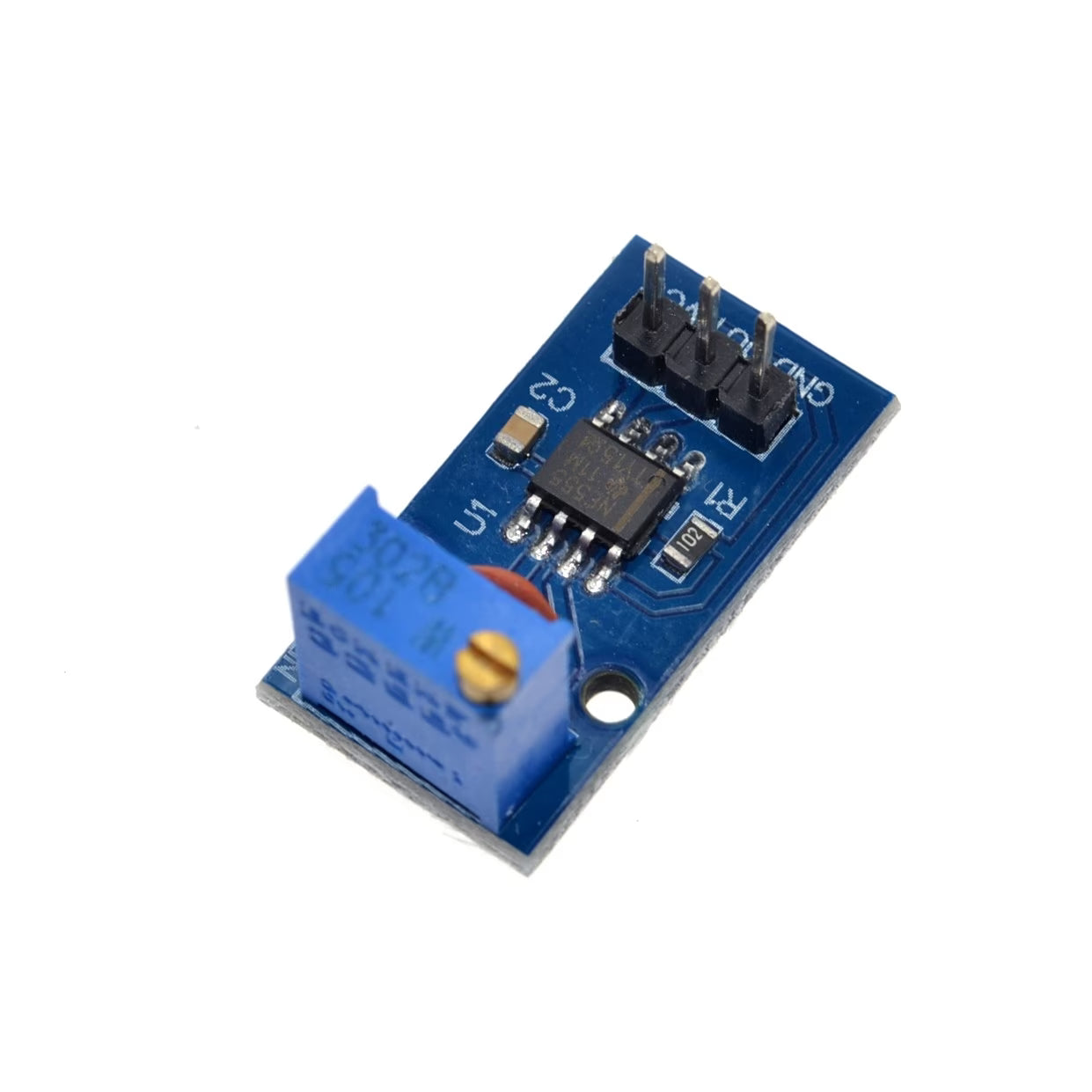

NE555 Frequency Generator Module – Adjustable Square Wave Pulse Signal Generator Board
NE555 Frequency Generator Module – Adjustable Square Wave Pulse Signal Generator Board
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
This NE555 Frequency Generator Module is a compact signal generator board used to produce adjustable square wave and pulse signals for electronics testing and DIY projects. It is based on the popular NE555 timer IC, which is widely used for oscillator, timer, PWM and pulse generation applications.
The module is suitable for frequency signal testing, clock signal generation, PWM experiments, LED flashing circuits, motor driver signal control, buzzer testing, timer circuits, robotics projects and electronics learning. The onboard adjustment controls allow the user to change the output frequency and pulse signal based on project requirements.
This module is useful for students, hobbyists, technicians and makers who need a simple adjustable frequency source for circuit testing and prototyping.
Specifications
| Specification | Details |
|---|---|
| Product Name | NE555 Frequency Generator Module |
| Main IC | NE555 Timer IC |
| Product Type | Frequency Generator / Pulse Generator Module |
| Output Signal | Square Wave / Pulse Signal |
| Frequency | Adjustable |
| Duty Cycle | Adjustable, depending on module setting |
| Input Voltage | Commonly DC 5V–15V |
| Adjustment Type | Onboard potentiometer controls |
| Output Type | Digital pulse output |
| Board Type | PCB Module |
| Connection Type | Header pins / terminal pins |
| Suitable For | Frequency testing, PWM testing, clock signal, timer circuits |
| Application | Electronics projects, lab testing, robotics, LED flashing, motor control experiments, DIY circuits |
Key Features
Based on NE555 timer IC.
Generates adjustable frequency pulse output.
Useful for square wave and PWM signal testing.
Onboard controls for easy frequency adjustment.
Suitable for LED blinking and oscillator experiments.
Can be used as a clock signal source for circuits.
Compact board for breadboard and project use.
Important Note
This module is mainly for signal generation and testing. Do not connect motors, LEDs, relays or high-current loads directly to the output pin. Use a suitable driver, transistor, relay module or MOSFET module for external loads.
