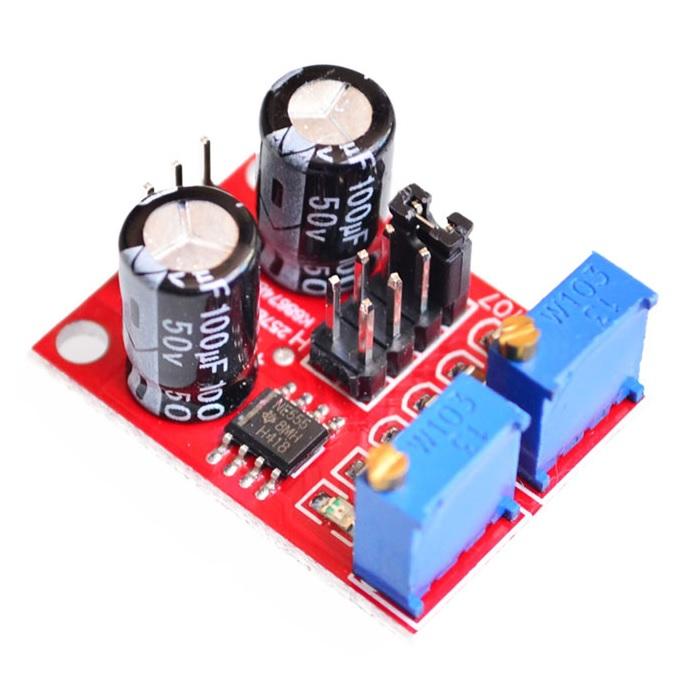

NE555 Duty Cycle Adjustable Pulse Generator Module – Square Wave Frequency Signal Generator Board
NE555 Duty Cycle Adjustable Pulse Generator Module – Square Wave Frequency Signal Generator Board
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
This NE555 Duty Cycle Adjustable Pulse Generator Module is a compact timer-based signal generator board used to generate adjustable square wave / pulse output signals. It is suitable for electronics testing, PWM control, motor speed control experiments, LED flashing circuits, clock signal generation, delay circuits and DIY electronics projects.
The module is based on the popular NE555 timer IC and includes onboard adjustment potentiometers to control the output frequency and duty cycle. It is useful for students, hobbyists, technicians and makers who need a simple adjustable pulse signal source for testing and project development.
Specifications
| Specification | Details |
|---|---|
| Product Name | NE555 Duty Cycle Adjustable Pulse Generator Module |
| Main IC | NE555 Timer IC |
| Product Type | Pulse Generator / Square Wave Signal Generator |
| Input Voltage | Commonly DC 5V–15V |
| Output Signal | Square Wave / Pulse Output |
| Duty Cycle | Adjustable |
| Frequency | Adjustable, depends on capacitor and potentiometer setting |
| Adjustment | Onboard potentiometers |
| Connector Type | Header pins / terminal connection |
| Board Type | PCB Module |
| Suitable For | PWM testing, LED flashing, motor control, signal testing, timer circuits |
| Application | Electronics projects, lab testing, DIY circuits, robotics, learning projects |
Key Features
Based on the popular NE555 timer IC.
Generates adjustable square wave pulse output.
Duty cycle can be adjusted using onboard control.
Useful for PWM and signal testing applications.
Suitable for motor speed control experiments and LED flashing circuits.
Compact module for breadboard and electronics project use.
Good learning module for timer IC and oscillator circuits.
Important Note
Input voltage and output range may vary slightly depending on the module version. Please connect power supply polarity correctly before use. For motor or high-current loads, use a suitable driver circuit or MOSFET module; do not connect heavy loads directly to the signal output pin.
