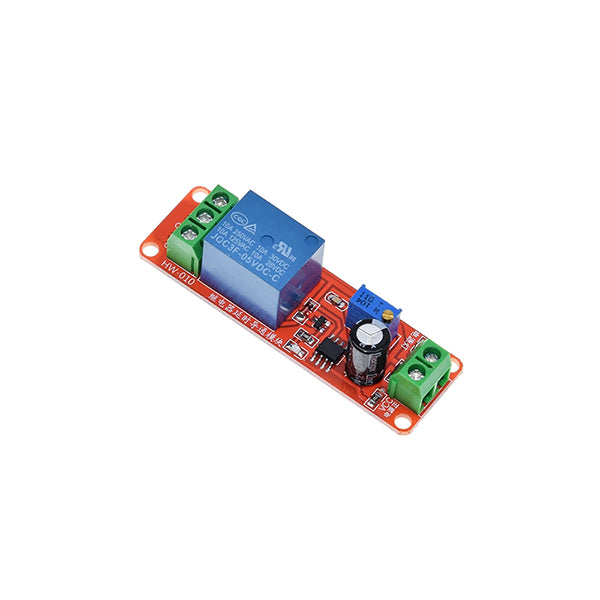

NE555 Delay Timer Module 5V | Adjustable Monostable Time Delay Relay Switch

The NE555 Delay Timer Module (5V) is a compact and reliable time delay switch based on the popular NE555 timer IC. Designed in monostable mode, it generates a single output pulse with an adjustable delay, making it ideal for automation and control applications.

This module allows you to set a delay time from 0 to 10 seconds using the onboard potentiometer, giving flexibility for different timing requirements. It can control both AC and DC loads, making it suitable for a wide range of electronic and electrical projects.

With its simple design and easy operation, this delay module is perfect for vehicle electronics, automation systems, DIY projects, and industrial control circuits.

🔧 Key Features

• Based on reliable NE555 timer IC
• Adjustable delay time (0–10 seconds)
• Operates in monostable (one-shot) mode
• Works with 5V DC input
• Supports both AC and DC load control
• Easy adjustment using onboard potentiometer
• Compact and easy to integrate

⚙️ Applications

• Vehicle electrical delay systems
• Home and industrial automation
• Timer-based switching circuits
• Relay delay control projects
• DIY electronics and robotics
• Power-on delay circuits

📦 Specifications

• Input Voltage: 5V DC
• Delay Time: 0–10 seconds (adjustable)
• AC Load: Up to 250V / 10A
• DC Load: Up to 30V / 10A
• Working Mode: Monostable
