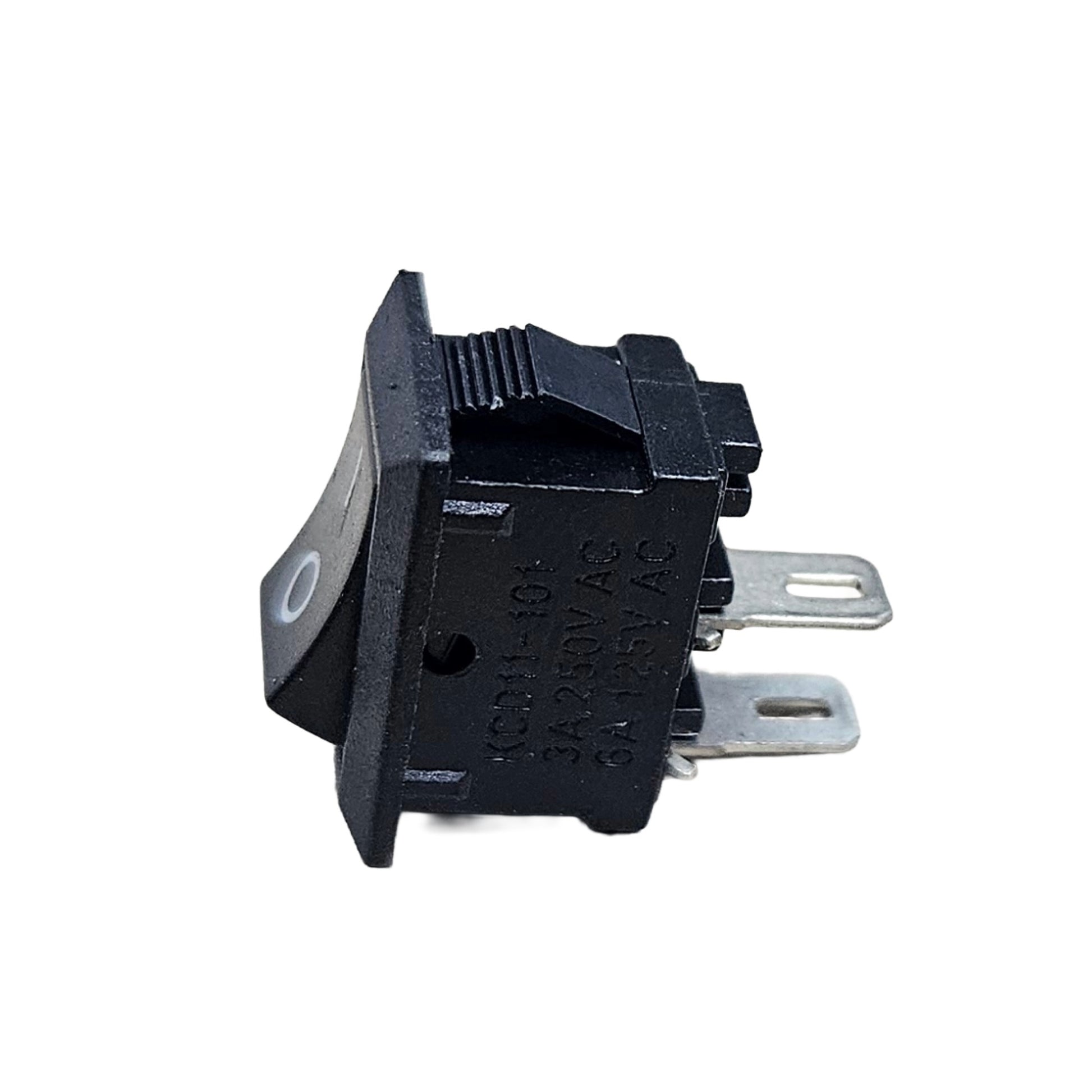

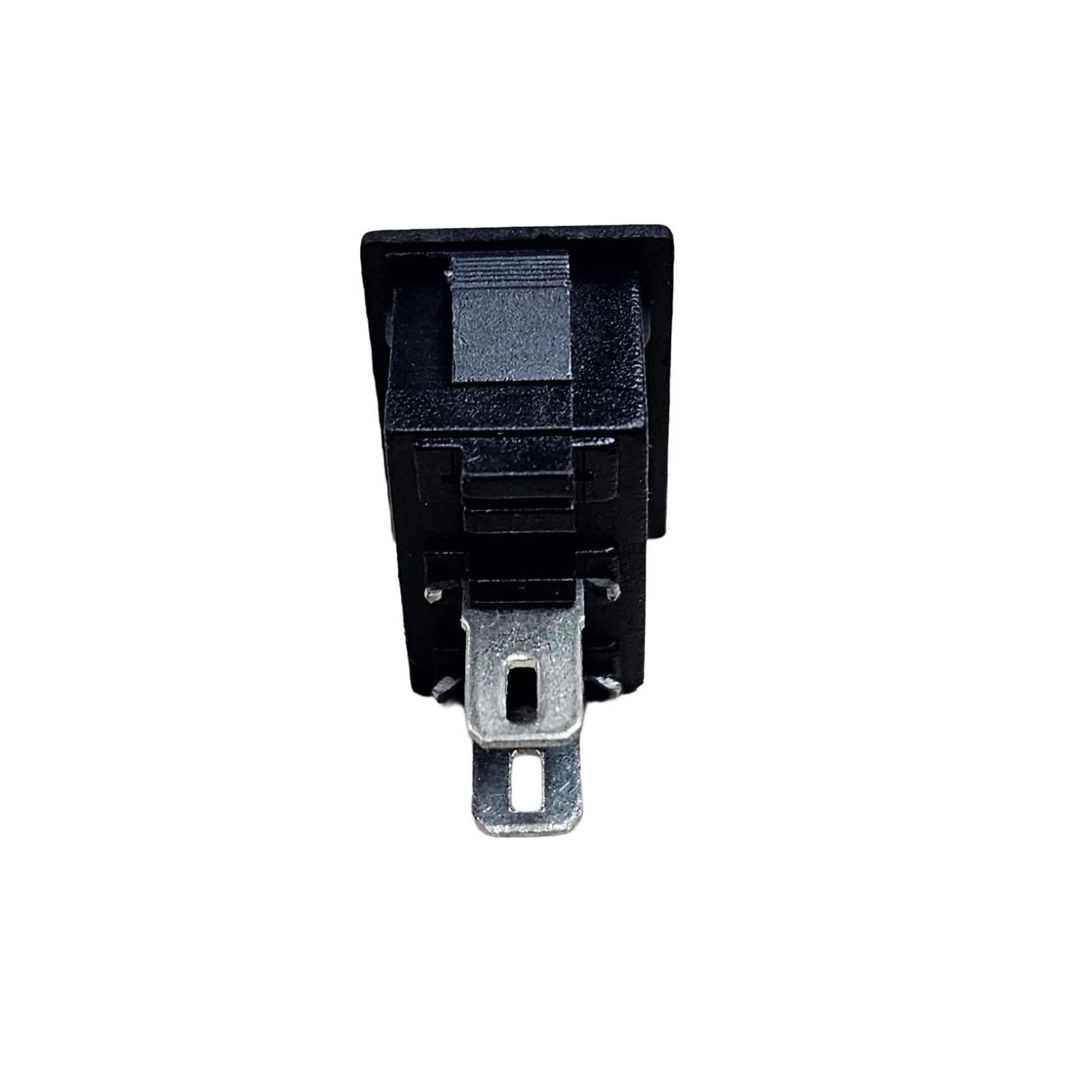

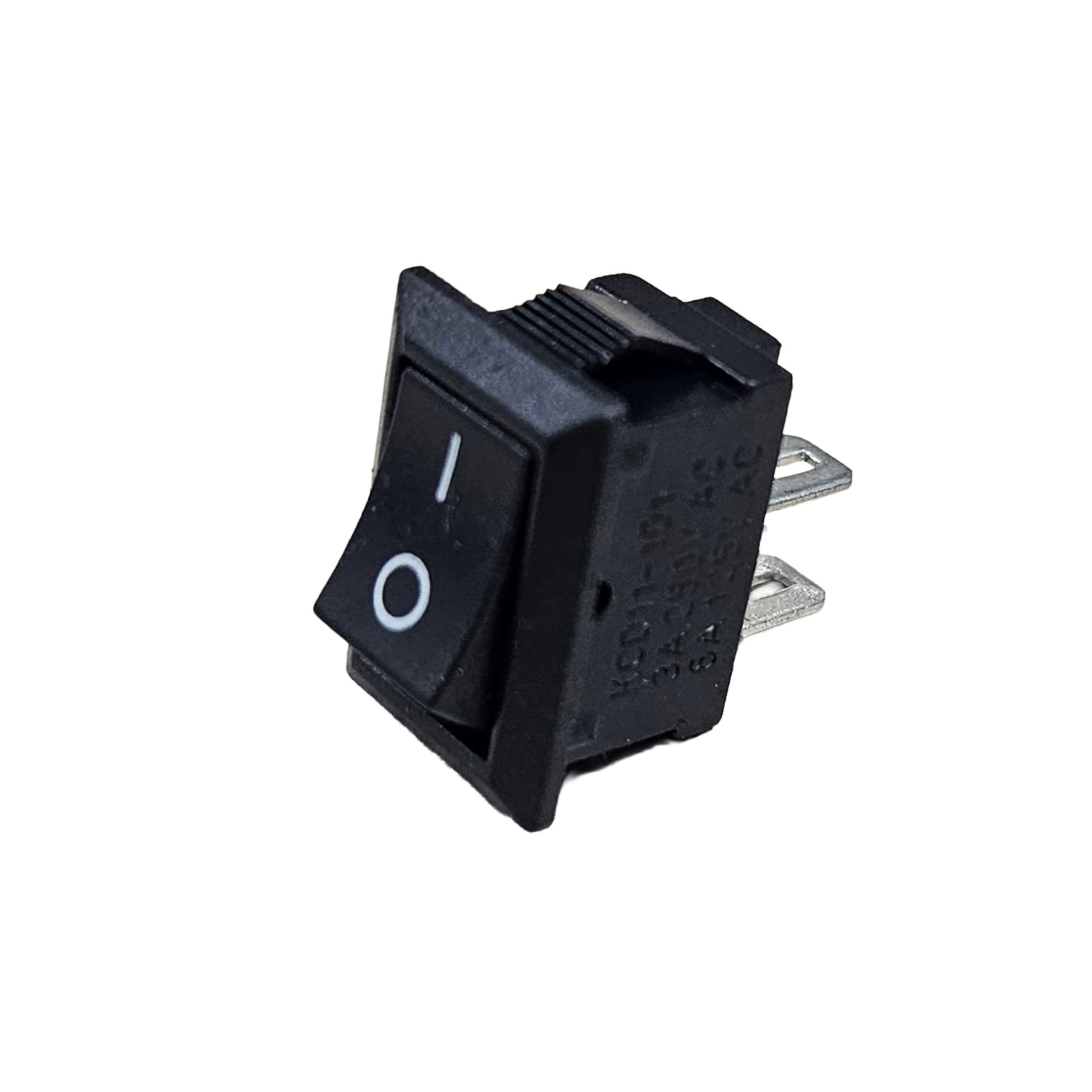

2 Pin Rocker ON/OFF Switch - Mini KCD11-101 – 3A 250V AC / 6A 125V AC Panel Mount Switch
2 Pin Rocker ON/OFF Switch - Mini KCD11-101 – 3A 250V AC / 6A 125V AC Panel Mount Switch
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
This Mini 2 Pin Rocker ON/OFF Switch KCD11-101 is a compact panel-mount switch used to control power ON and OFF in electrical and electronics projects. It is suitable for small appliances, power supply boxes, extension boards, DIY circuits, LED lighting, battery projects, control panels and repair work.
The switch has a simple 2 pin ON/OFF connection, making it easy to wire in series with the power line. Its mini size is useful for compact project boxes and enclosures where space is limited.
This rocker switch is rated for 3A 250V AC and 6A 125V AC, making it suitable for many low to medium load switching applications.
Specifications
| Specification | Details |
|---|---|
| Product Name | Mini 2 Pin Rocker ON/OFF Switch |
| Model | KCD11-101 |
| Product Type | Rocker Switch / ON OFF Switch |
| Pin Count | 2 Pin |
| Switching Type | ON/OFF |
| Rated Current | 3A at 250V AC |
| Rated Current | 6A at 125V AC |
| Mounting Type | Panel Mount / Snap-in Type |
| Body Type | Mini Plastic Body |
| Usage | Power ON/OFF control |
| Suitable For | Project boxes, power supplies, LED lights, appliances, DIY electronics |
| Application | Electronics projects, electrical repair, control panels, battery circuits, workshop use |
Key Features
Compact mini rocker switch design.
Simple 2 pin ON/OFF connection.
Model KCD11-101 type switch.
Rated 3A 250V AC / 6A 125V AC.
Suitable for panel mounting and project enclosures.
Easy to use for power control in DIY circuits.
Useful for electronics, electrical and repair applications.
Important Note
Use this switch only within the rated voltage and current limit. For AC mains wiring, proper insulation and safe enclosure are required. Always disconnect power before wiring or replacing the switch.
