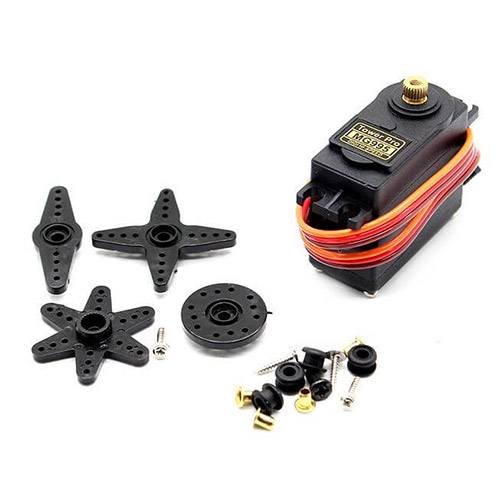

MG995 Servo Motor - 180°
MG995 Servo Motor - 180°
Regular price
Rs. 250.00
Regular price
Rs. 300.00
Sale price
Rs. 250.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MG995 is a high-torque, metal gear servo motor that rotates 180°. It is widely used in robotics, RC cars, robotic arms, and automation projects.
MG995 Servo Motor Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 4.8V - 7.2V |
| Torque | 9.4 kg·cm (4.8V) / 11 kg·cm (6V) |
| Rotation Angle | 180° |
| Speed | 0.2 sec/60° (4.8V), 0.16 sec/60° (6V) |
| Gear Type | Metal Gear |
| Weight | 55g |
| Signal Type | PWM (Pulse Width Modulation) |
| Connector Type | 3-pin (VCC, GND, PWM) |
MG995 Servo Pinout
1️⃣ Brown → Ground (GND)
2️⃣ Red → Power (VCC: 4.8V - 7.2V)
3️⃣ Orange → Signal (PWM input)
