MCP2515

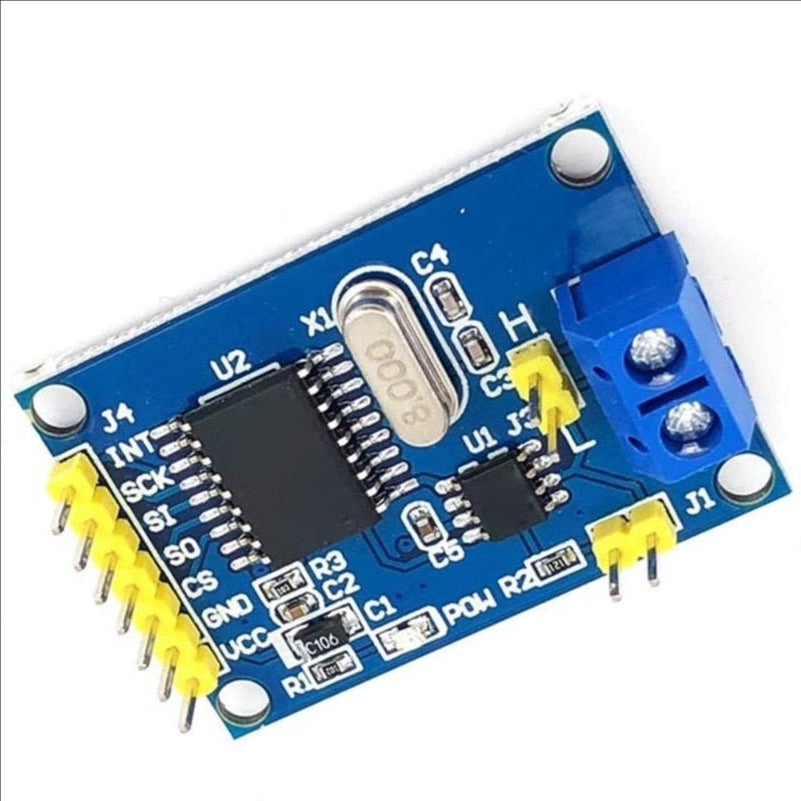

MCP2515 CAN Bus Module Board with TJA1050 Transceiver

The MCP2515 CAN Bus Module is designed to facilitate communication between microcontrollers and their peripherals via the Controller Area Network (CAN) protocol. This bus standard eliminates the need for a host computer, enabling simple yet effective communication. Equipped with an SPI interface and the TJA1050 transceiver, this module allows microcontrollers, including Arduino-compatible boards like the UNO, to communicate seamlessly on a CAN bus network.

Supporting the CAN 2.0B protocol and offering speeds up to 1Mbps, this module is ideal for projects requiring reliable and fast communication. To establish a full CAN communication system, two MCP2515 CAN modules are required.

The MCP2515 supports standard frames, extended frames, and remote frames, and it can display communication data via the serial port. With its simple design and compatibility with various microcontrollers, this module is perfect for a wide range of applications.

Pinout Details:

• VCC: 5V power input
• GND: Ground pin
• CS: SPI slave select (active low)
• SO: SPI master input, slave output
• SI: SPI master output, slave input
• SCLK: SPI clock signal
• INT: Interrupt pin for MCP2515

Applications:

• Electronic gear shift systems
• Automotive electronics
• Industrial automation systems
• Medical equipment communication
• Robotics
• Car engine start/stop systems

Package Includes:

• 1 x MCP2515 CAN Bus Module Board with TJA1050 Receiver, compatible with 51 MCU and ARM controllers.

Specifications:

• Model: MCP2515 CAN Bus Module Board
• Transceiver: High-speed CAN TJA1050
• Oscillator: 8MHz crystal oscillator
• Termination Resistance: 120Ω
• Data Field: Supports data fields up to 8 bytes in length
• Dimensions: 4 x 3 x 1 cm
• Weight: 0.5 grams
