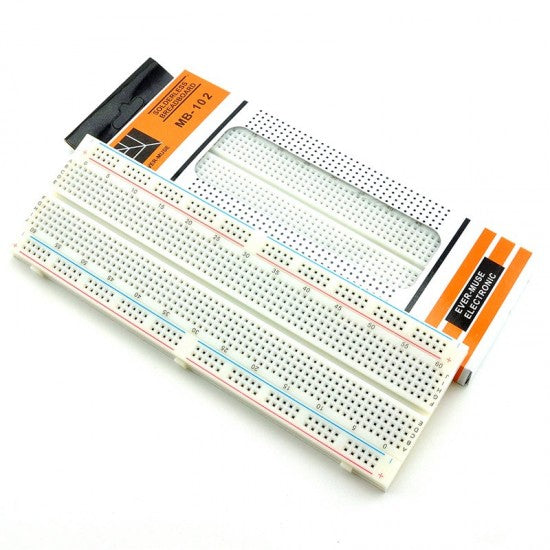

MB-102 Breadboard – 830 Tie Points Solderless Prototype Board

The MB-102 Breadboard is a commonly used solderless breadboard ideal for prototyping electronic circuits without the need for soldering.

MB-102 Breadboard Specifications:

• Total Tie Points: 830

  • 630 in the main area (for components)

  • 200 in the power rails (100 on each side)

• Layout:

  • 2 power rails on each side

  • 10 rows (a–j) in the main grid

  • Numbered rows 1 to 63

  • Each row has 5 connected points on each side of the central groove (for DIP ICs)

• Material: ABS plastic with phosphor bronze/nickel-plated contacts

• Connectivity:

  • Designed to accept 20–29 AWG wires and component leads

  • Can be daisy-chained with other MB-102 boards using side notches

• Voltage Rating: Typically supports up to 300V at 3–5A, but recommended for low-voltage DC use only (5V–12V)

• Size: Around 17.4 x 6.4 x 0.85 cm (L x W x H)

• Reusable: Yes, components can be plugged in and out many times
