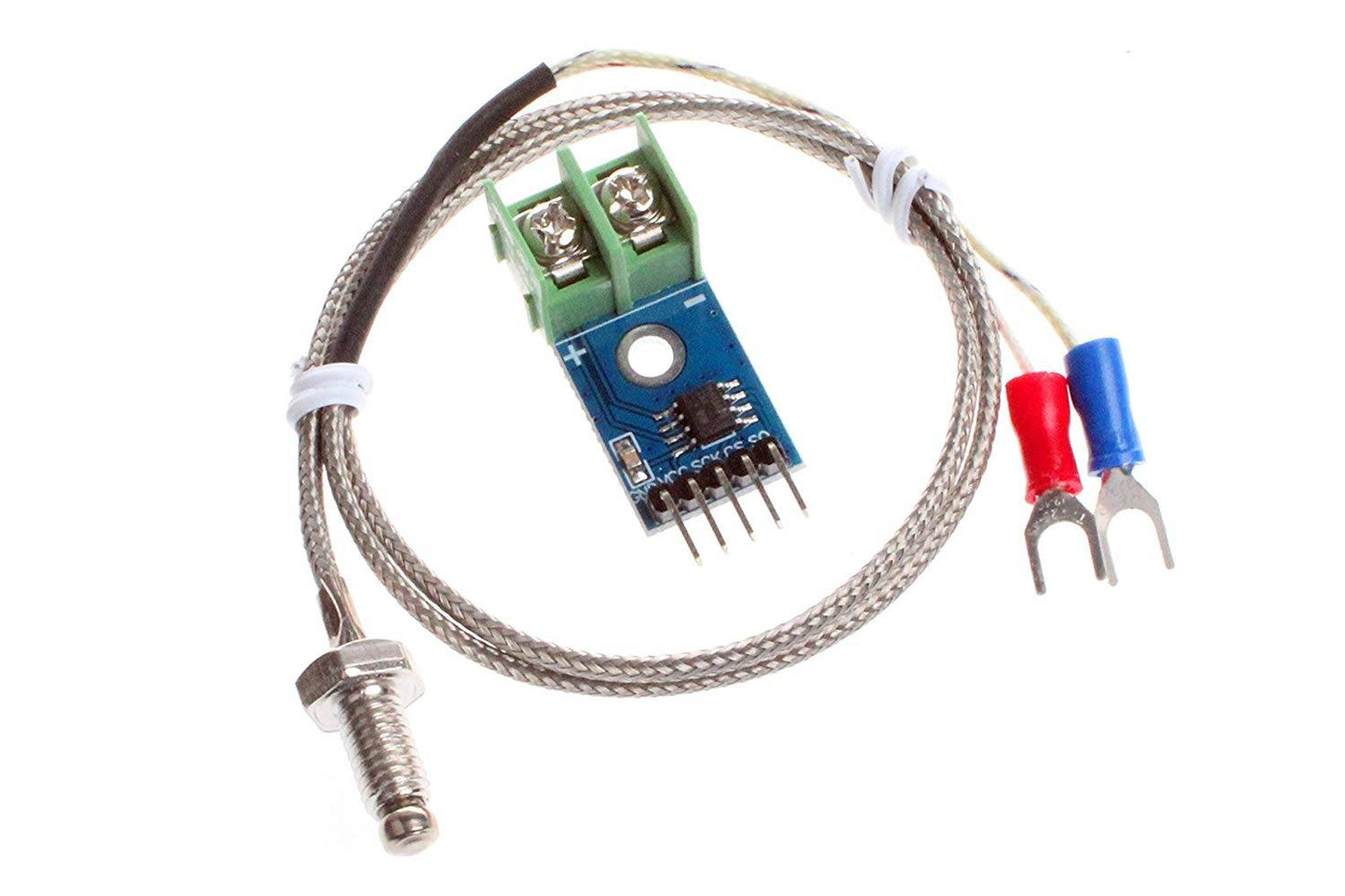

MAX6675 K-Type Thermocouple

MAX6675 K-Type Thermocouple

Model: MAX6675
Operating Voltage: 3.3V to 5.5V DC
Temperature Range: 0°C to +1024°C
Cold Junction Compensation Range: -20°C to +80°C
Resolution: 0.25°C
Cold Junction Compensation: Integrated circuitry
Digital Output: 12-bit SPI
Thermocouple Type: K-type
Features:

• Integrated cold junction compensation circuitry
• Supports K-type thermocouples
• SPI interface for digital temperature output
• High impedance differential inputs
• Built-in thermocouple break detection circuitry
• ESD protection up to 2000V

Packaging Information:

• Packaged by: Sharvi Technologies (OPC) Pvt. Ltd.
• Address: #09, CK Nagar, AECS layout, Hosa Road, Bangalore-560100

Applications:
The MAX6675 is commonly used in applications requiring precise temperature monitoring, such as industrial temperature control systems, environmental monitoring, and scientific instrumentation.

This IC provides a reliable and accurate method for converting thermocouple temperature signals into digital data, making it suitable for various temperature measurement and control applications.
