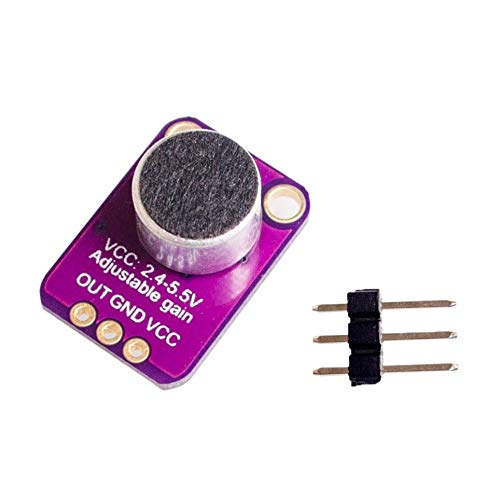

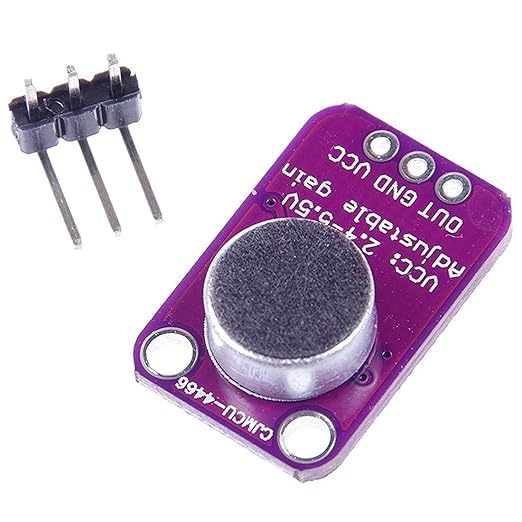

MAX4466 Electret Microphone Amplifier Module with Adjustable Gain

Compact electret microphone amplifier module for sound signal detection
- Built-in adjustable gain control using onboard trim potentiometer
- Provides analog audio output suitable for microcontroller input pins
- Operates on low DC voltage for battery and embedded projects
- Pre-soldered electret microphone on a small breakout board
- Simple three-pin interface for power, ground, and output connection

The MAX4466 Electret Microphone Amplifier is a compact audio input module designed to capture and amplify sound signals for electronic and embedded projects. It combines an electret microphone with a dedicated low-noise amplifier circuit on a small breakout board, making it easy to integrate sound sensing into custom designs.

This module is commonly used in projects that require detection or analysis of ambient audio signals. Typical use cases include sound-reactive lighting, voice-triggered controls, audio level monitoring, and basic audio input for microcontrollers. The amplified analog output allows sound signals to be processed by ADC pins or further signal-processing circuits.

A key benefit of this module is the onboard adjustable gain control. The small trim potentiometer allows users to fine-tune amplification levels based on input sound strength and application requirements. This helps achieve clear signal output while reducing distortion or noise caused by excessive gain.

The module operates on a low DC supply voltage, making it suitable for battery-powered systems and common development boards. Its analog output includes a DC bias, which is useful for direct connection to microcontroller analog inputs without additional circuitry in many cases.

Designed for hobbyists, students, and developers, this electret microphone amplifier is compatible with a wide range of audio sensing and embedded applications. Its small size and simple three-pin interface make it easy to use in prototypes, educational projects, and compact electronic builds.

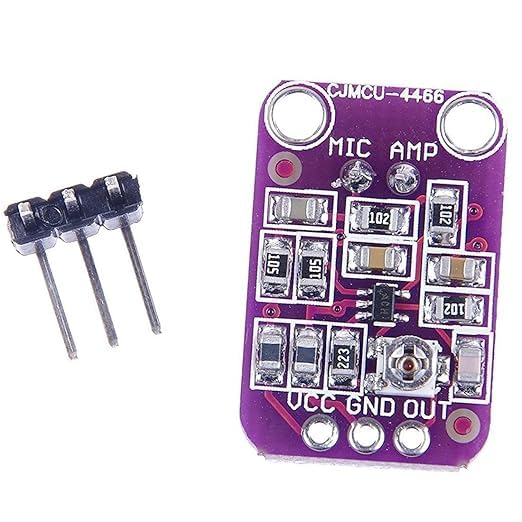

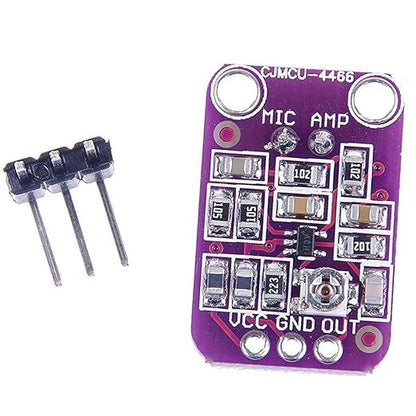

The package includes one MAX4466 Electret Microphone Amplifier module with the microphone and components pre-mounted on the PCB.

SPECIFICATIONS
Product Type : Electret microphone amplifier module
Amplifier IC : MAX4466
Microphone Type : Electret condenser microphone
Operating Voltage : 2.4 V to 5.5 V DC
Output Type : Analog audio signal
Gain Control : Onboard adjustable trim potentiometer
Output Bias : Approximately VCC / 2
Connection Pins : VCC, GND, OUT
Mounting Type : PCB breakout module
PCB Size : Compact form factor
Application Type : Audio sensing and signal amplification

KEY FEATURES
- Uses MAX4466 low-noise microphone amplifier IC
- Integrated electret microphone mounted on breakout board
- Adjustable gain via onboard trim potentiometer
- Analog audio output with DC bias
- Low voltage operation for embedded electronics
- Compact PCB suitable for space-constrained designs
- Three-pin connection interface for easy wiring
