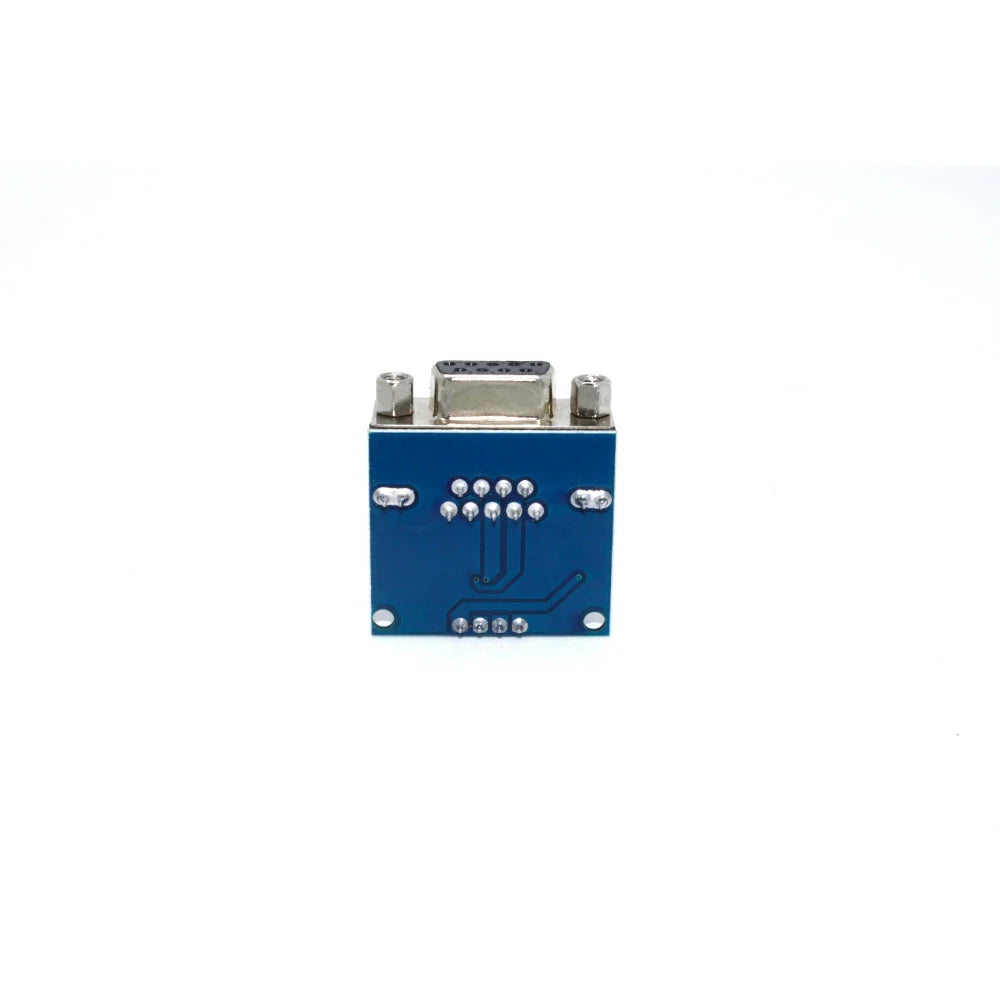

MAX3232 RS232 to TTL Serial Converter Module – DB9 Serial Port Interface Board
MAX3232 RS232 to TTL Serial Converter Module – DB9 Serial Port Interface Board
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

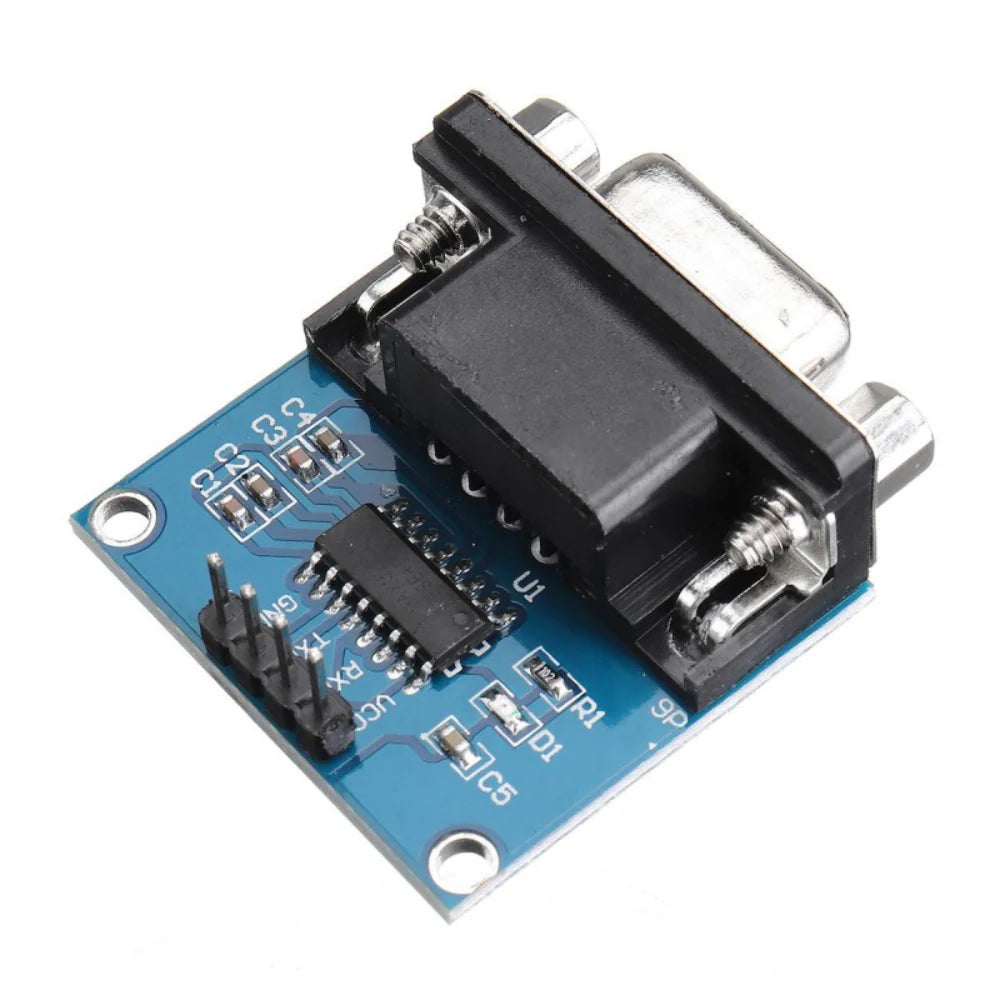

The MAX3232 RS232 to TTL Serial Converter Module is used to convert RS232 serial signals to TTL logic level signals for microcontroller and embedded communication projects. It comes with a DB9 female serial connector and TTL pin header pins for easy connection with Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other development boards.
This module is suitable for connecting RS232-based devices such as industrial equipment, serial communication devices, barcode scanners, old computer serial ports, CNC controllers and microcontroller projects. The MAX3232 chip supports low-voltage TTL communication, making it useful for both 3.3V and 5V logic-level projects.
Specifications
| Specification | Details |
|---|---|
| Product Type | RS232 to TTL Serial Converter Module |
| Main IC | MAX3232 |
| Interface Type | RS232 to TTL / TTL to RS232 |
| Connector | DB9 Female Serial Port |
| TTL Pins | VCC, GND, TX, RX |
| Operating Voltage | 3.3V to 5V DC |
| Logic Level Support | 3.3V / 5V TTL |
| Communication Type | UART Serial Communication |
| Direction | Bidirectional serial conversion |
| PCB Colour | Blue |
| Mounting Holes | Yes |
| Suitable For | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, microcontroller boards |
| Applications | Serial communication, RS232 device interface, embedded systems, industrial communication |
| Package Includes | 1 × MAX3232 RS232 to TTL Serial Converter Module |
