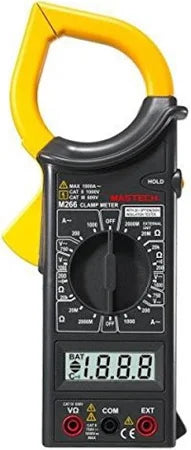

Multimeter Mastech Ac Digital Clamp Meter M266 Series

Name: Multimeter Mastech Ac Digital Clamp Meter M266 Series
Brand: MAJESTRONICZ
Price: 1650.00 INR
Availability: InStock

Rs. 1,650.00

~~Rs. 2,000.00~~ Rs. 1,650.00

-17% OFF Sold out

Taxes included. Shipping calculated at checkout.

Quantity

📦 For Bulk Order Enquiry – Click Here for Best Price

🔧 Mastech M266 Digital AC Clamp Meter – Product Description

Prime Highlights

Contactless AC current measurement – Clamp-ready jaw (Ø50 mm) instantly reads up to 1,000 A AC (2 ranges: 200 A / 1,000 A ±2.5 %/±3 %) shreyans.enterprises+8mextechin.com+8evelta.com+8mastech.bg+1evelta.com+1.
Auto‑range AC/DC voltage – Measures up to 750 V AC (±1 % +4 digits) and 1,000 V DC (±0.8 % +3 digits), ideal for both industrial and household use. mastech.bg+2mextechin.com+2evelta.com+2
Expanded resistance & insulation testing – 200 Ω / 20 kΩ resistance, plus insulation up to 2 GΩ (2,000 MΩ) mastech.bg+3mastech-group.com+3amazon.com+3.
Continuity check with buzzer, plus data hold, low‑battery warning, overload and over‑range protection. shreyans.enterprises+3mextechin.com+3lumel.com.pl+3

Advanced Specifications

Function	Range	Resolution	Accuracy
AC Current	0–200 A / 0–1,000 A	0.1 A / 1 A	±2.5 %/±5 d / ±3 %/±10 d lumel.com.pl+8mextechin.com+8mastech-group.com+8electronicshub.pk+2mastech.bg+2lumel.com.pl+2
AC Voltage	0–750 V	1 V	±1 % +5 digits
DC Voltage	0–1,000 V	1 V	±0.8 % +3 digits
Resistance	0–20 kΩ	0.1 Ω	±1 % +5–8 digits
Insulation Test	20 MΩ / 2 GΩ	10 kΩ / 1 MΩ	±2 % / ±4–5 %

User‑Friendly & Durable

3½‑digit (2,000‑count) LCD screen
Fast 3 readings/sec refresh rate
Wide 50 mm jaw opening fits most conductors
Rugged design: operating temp 0–50 °C, storage −20–60 °C, 80 % RH panda-bg.com+7mextechin.com+7evelta.com+7
Portable & lightweight: approx. 268 g, powered by a standard 9 V battery lumel.com.pl+2mastech.bg+2evelta.com+2

Safety & Certification

CAT II 1,000 V / CAT III 600 V safety ratings
CE, ETL and RoHS compliance
Approved protective features to ensure user and device safety mastech.bg+1lumel.com.pl+1lumel.com.pl
