LM386 - 200 Times Gain Mono Audio Power Amplifier Module – 5V to 12V DC
LM386 - 200 Times Gain Mono Audio Power Amplifier Module – 5V to 12V DC
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

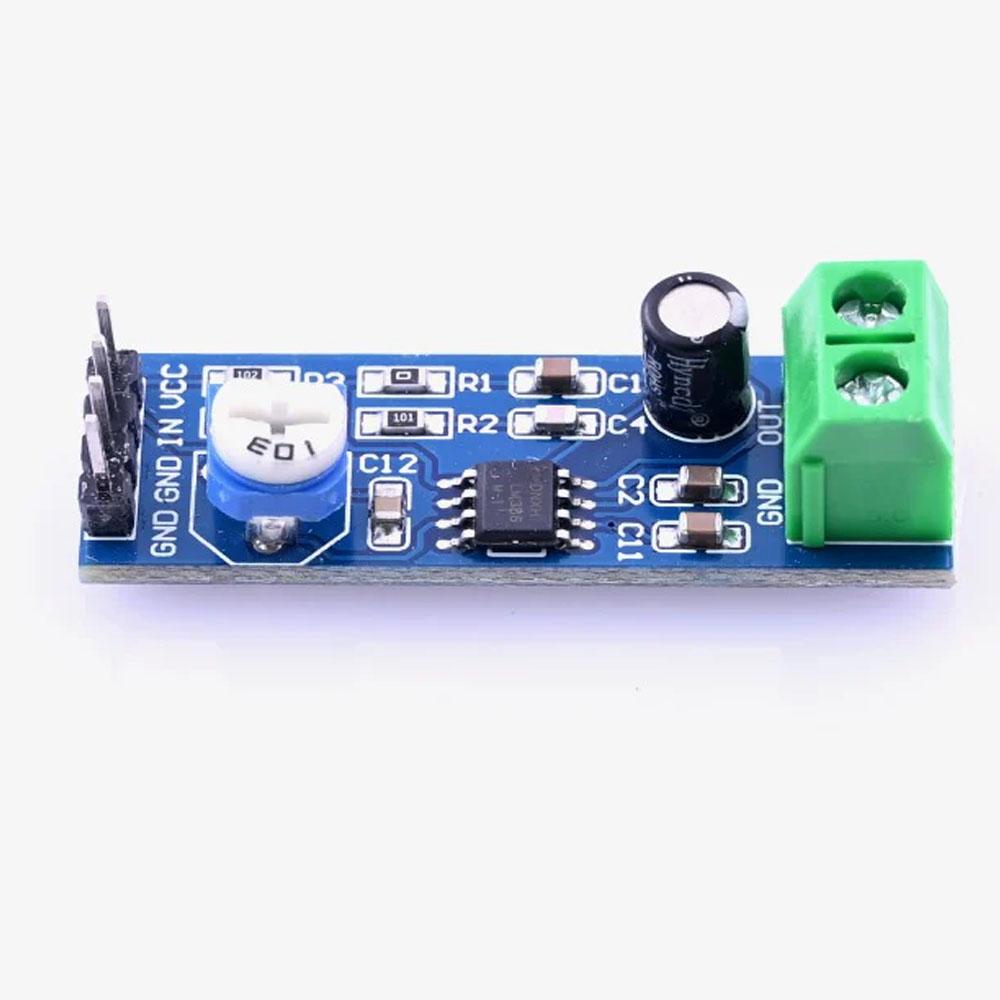

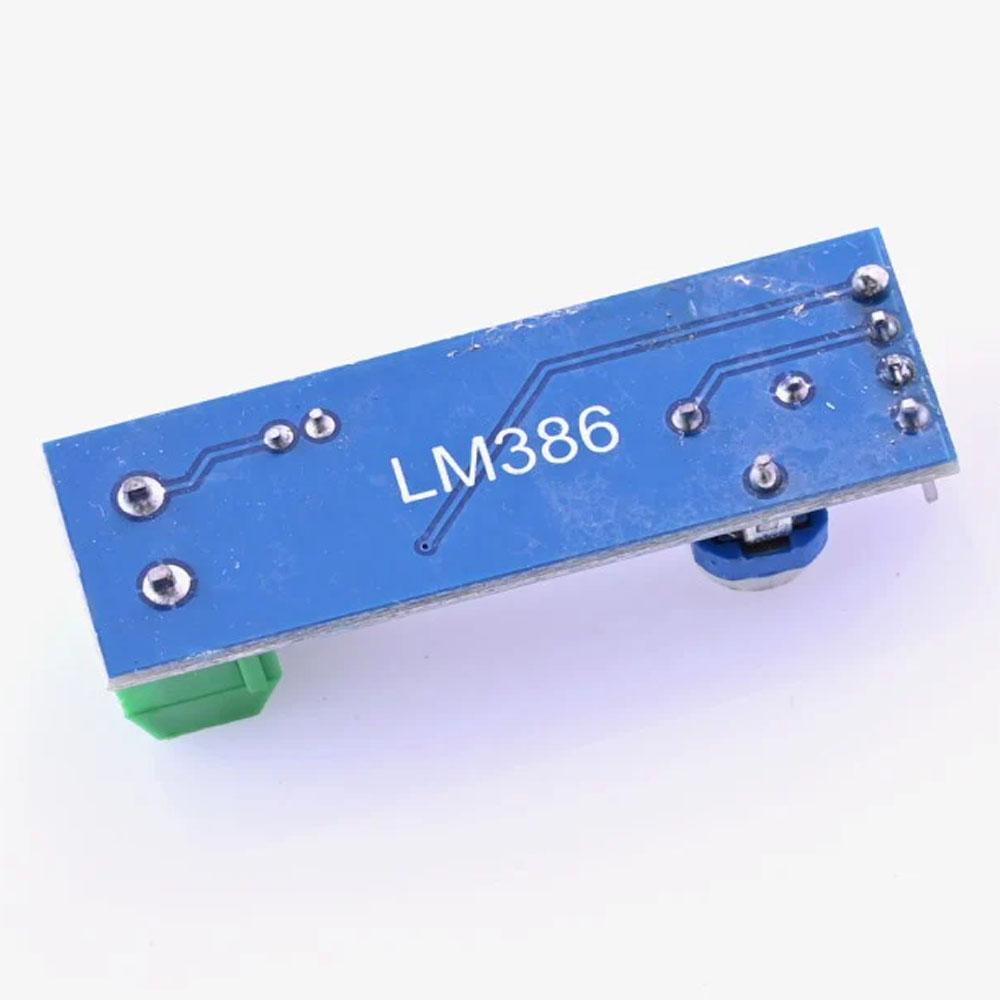

The LM386 200 Times Gain Audio Amplifier Module is a compact mono sound-amplifier board designed to amplify low-level audio signals and drive a small speaker.
It is built around the LM386 low-voltage audio power-amplifier IC. The LM386 has a standard internal voltage gain of 20, while an external capacitor between its gain-control pins can increase the voltage gain up to approximately 200 times, or 46dB.
The module is suitable for Arduino audio projects, voice-recording modules, microphones, radios, electronic toys, school projects and DIY speaker systems. It can be connected between a low-level mono audio source and a compatible small speaker.
Its compact design makes it useful for breadboard prototypes and space-limited electronic projects.
Key Features
- LM386-based mono audio amplifier module
- Up to approximately 200-times voltage gain
- Compact and lightweight circuit board
- Suitable for low-voltage audio applications
- Amplifies weak audio signals
- Can drive compatible small speakers
- Easy connection to audio input, power and speaker
- Useful for Arduino and DIY audio projects
- Suitable for voice and sound playback modules
- Low external component requirement
Specifications
| Specification | Details |
|---|---|
| Product Type | Mono Audio Power Amplifier Module |
| Amplifier IC | LM386 |
| Number of Channels | 1 Channel, Mono |
| Maximum Voltage Gain | Approximately 200 Times |
| Maximum Gain in Decibels | Approximately 46dB |
| Standard LM386 Internal Gain | 20 Times |
| Operating Voltage | Commonly 5V to 12V DC, depending on the module version |
| Audio Input | Low-Level Mono Audio Signal |
| Audio Output | Amplified Mono Speaker Output |
| Speaker Compatibility | Small Low-Power Speaker |
| Gain Configuration | Fixed by Onboard Components |
| Board Type | Compact PCB Module |
| Recommended Load | Commonly 4Ω to 8Ω Speaker, subject to module configuration |
| Suitable For | Arduino, Voice Modules, Radios and DIY Audio Projects |
| Package Contents | 1 × LM386 Audio Amplifier Module |
Important Notes
- This is a mono amplifier, not a stereo amplifier.
- “200 times” refers to the approximate maximum voltage gain, not 200W output power.
- Use only a DC supply within the voltage marked on the actual module.
- The speaker wattage and impedance must be compatible with the amplifier board.
- Keep audio-input wires short to reduce humming and electrical noise.
- Do not connect a speaker directly to the audio-input terminals.
Applications
- Arduino sound-output projects
- ISD1820 voice-recording module
- Microphone pre-amplification projects
- Small DIY speaker systems
- Electronic toys
- Doorbell and alarm circuits
- FM or AM radio projects
- Voice-announcement projects
- School science projects
- Robotics sound-output circuits
- Signal-tracer projects
- Portable mono audio devices
