MAJESTRONICZ
LM2596 DC-DC Buck Convertor
LM2596 DC-DC Buck Convertor
Regular price
Rs. 59.00
Regular price
Sale price
Rs. 59.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price

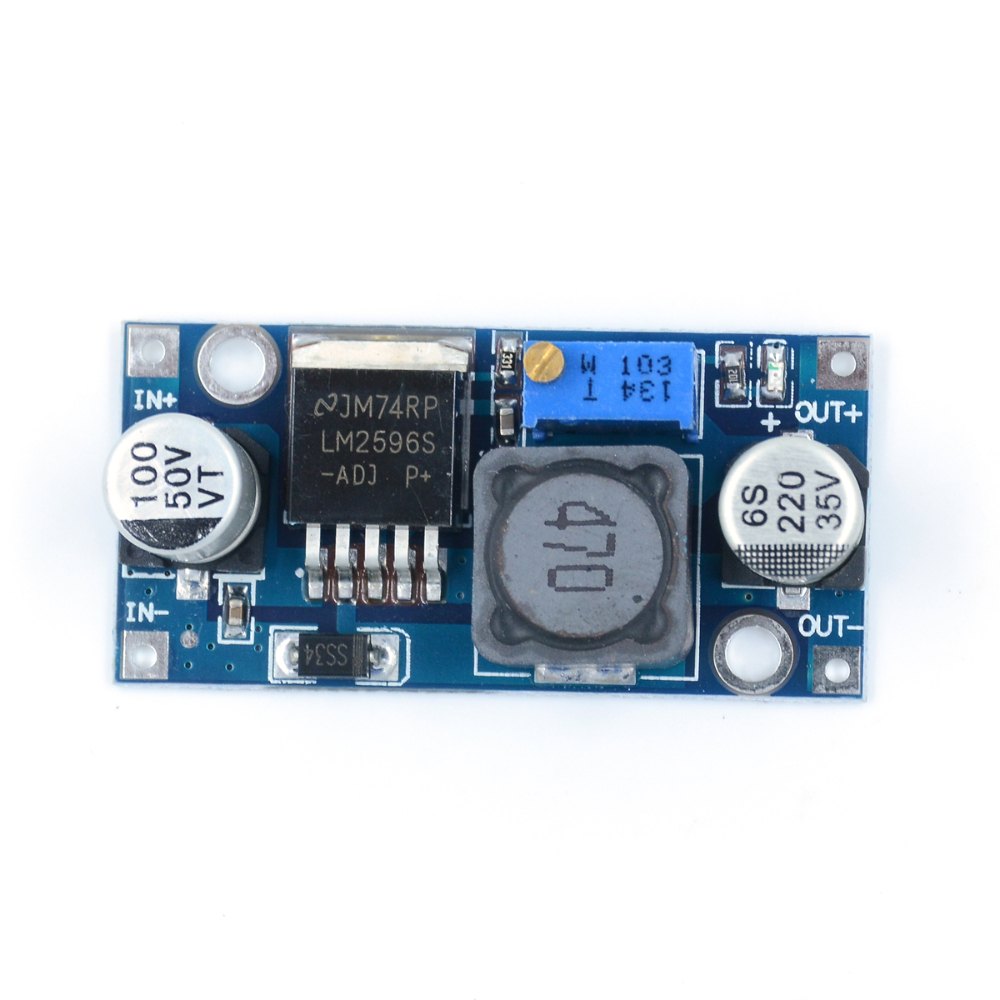

LM2596 DC-DC Buck Converter
The LM2596 buck converter is a DC-to-DC step-down voltage regulator used to convert a higher DC input voltage into a lower, stable DC output voltage. It is based on the LM2596, which uses a high-frequency switching technique to provide efficient voltage conversion with minimal heat loss. The output voltage can be adjusted using an onboard potentiometer, making it suitable for a wide range of electronic projects.
- Type: DC-DC Step-Down (Buck) Converter
- Input Voltage: 4.5V – 40V DC
- Output Voltage: 1.25V – 35V DC (adjustable)
- Output Current: Up to 3A (recommended 2A continuous)
Pin Description
- IN+ → Positive input voltage
- IN− → Ground input
- OUT+ → Positive output voltage
- OUT− → Ground output
