MAJESTRONICZ

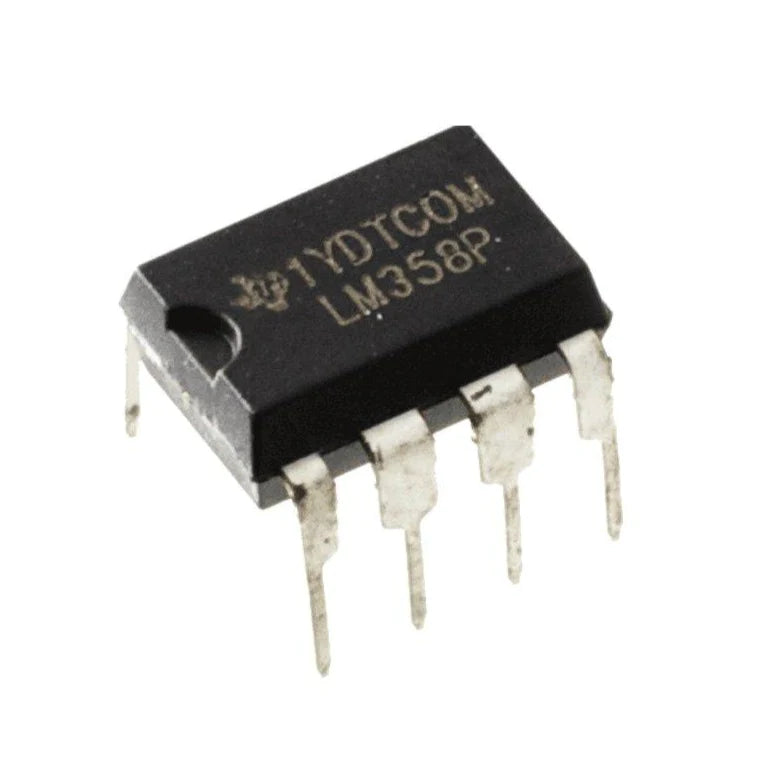

LM 358 OP-AMP
LM 358 OP-AMP
Regular price
Rs. 10.00
Regular price
Sale price
Rs. 10.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The LM358 is a low-power dual operational amplifier (Op-Amp) IC that contains two independent operational amplifiers in a single 8-pin package. It is designed to operate from a single power supply, making it one of the most widely used analog ICs in electronics projects.
| Parameter | Value |
|---|
| IC Type |
Dual Operational Amplifier |
| Supply Voltage (Single) | 3 V to 32 V |
| Supply Voltage (Dual) | ±1.5 V to ±16 V |
Pin Configuration
| Pin | Name | Description |
|---|---|---|
| 1 | OUT1 | Output of Op-Amp 1 |
| 2 | IN−1 | Inverting Input of Op-Amp 1 |
| 3 | IN+1 | Non-Inverting Input of Op-Amp 1 |
| 4 | GND / V− | Ground or Negative Supply |
| 5 | IN+2 | Non-Inverting Input of Op-Amp 2 |
| 6 | IN−2 | Inverting Input of Op-Amp 2 |
| 7 | OUT2 | Output of Op-Amp 2 |
| 8 | VCC / V+ | Positive Supply Voltage |
