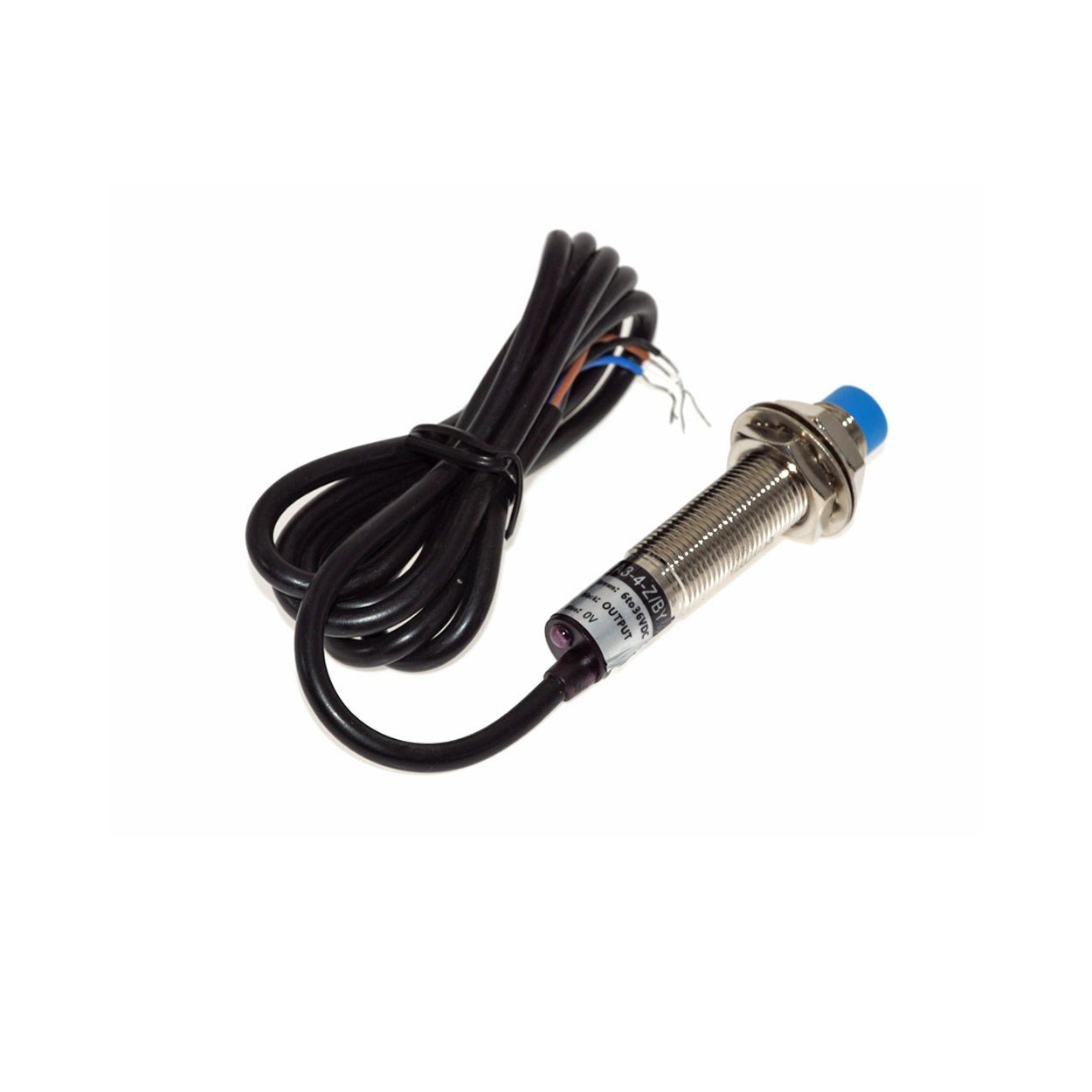

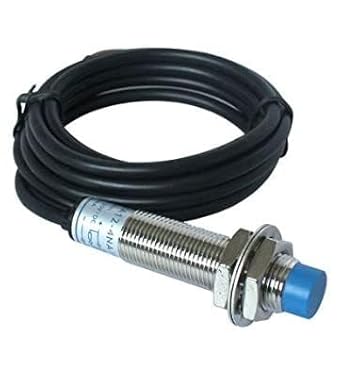

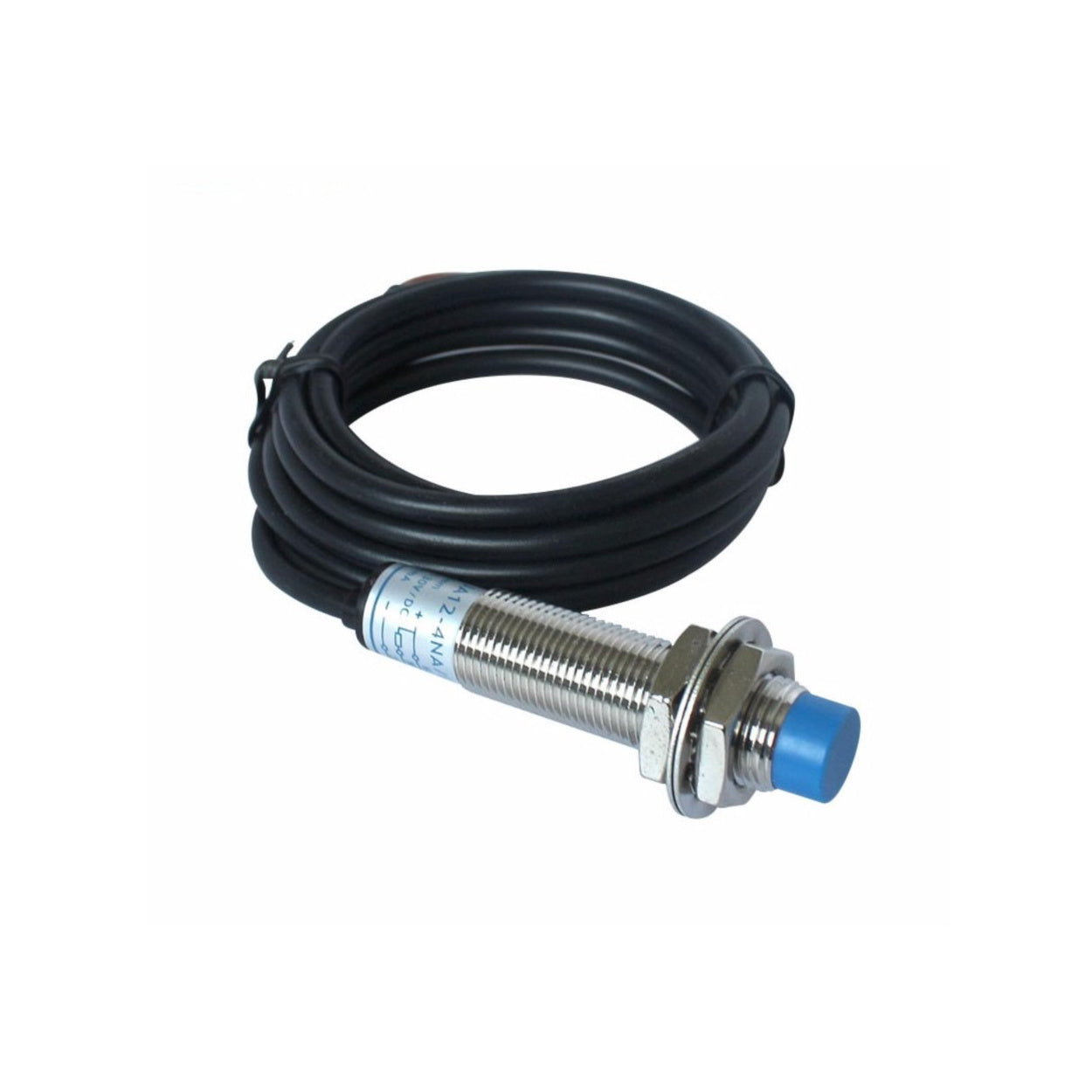

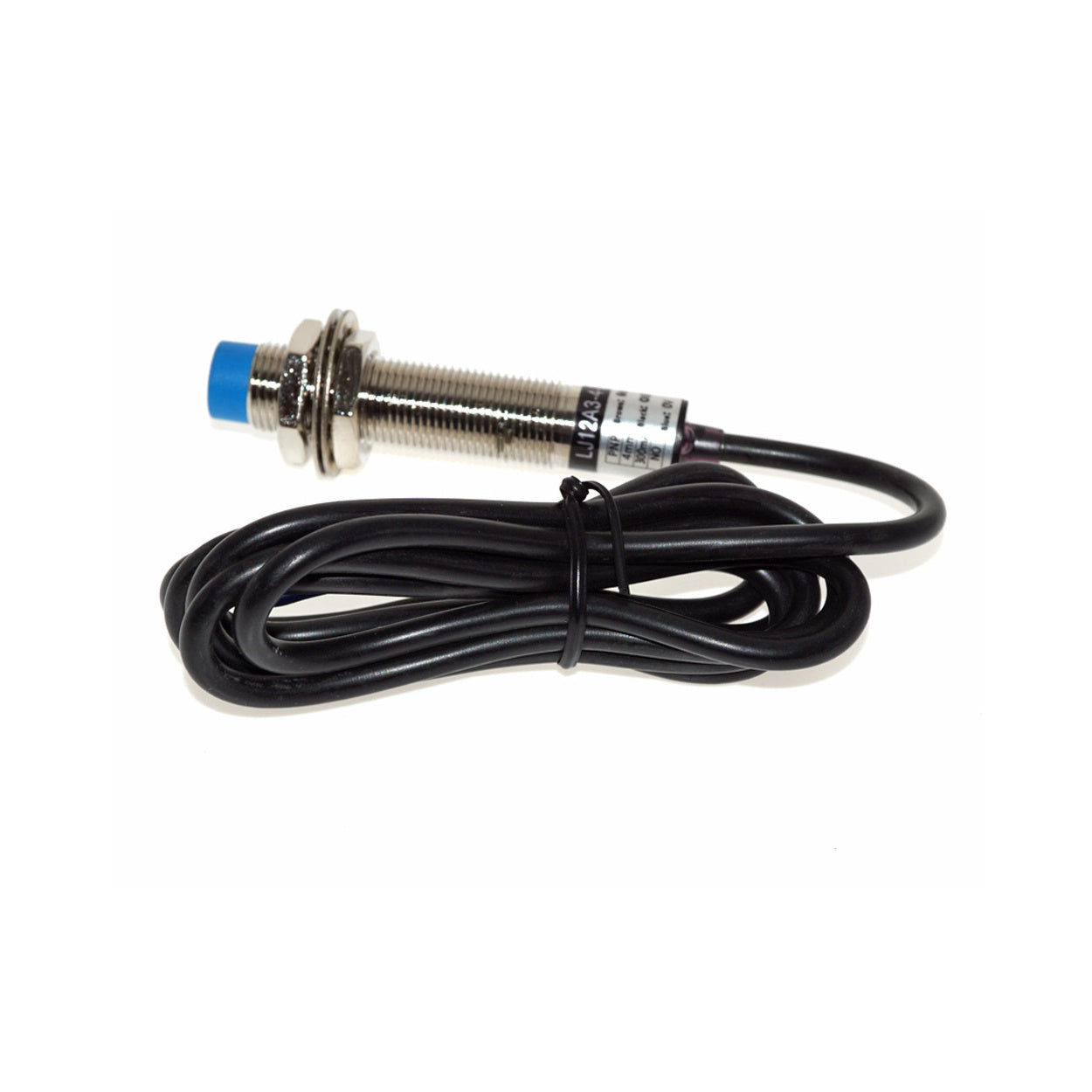

LJ12A3-4-Z/BX Inductive Proximity Sensor 4mm NPN NO | Robotics

The LJ12A3-4-Z/BX inductive proximity sensor is a tube-type, non-contact sensor designed specifically for detecting metallic objects without physical contact. Unlike mechanical limit switches, this sensor relies on electromagnetic principles, allowing it to operate with zero mechanical wear. This makes it ideal for long-term use in robotics projects, automation systems, and industrial control panels.

Students and engineers often search for “4mm inductive proximity sensor for Arduino” or “NPN proximity sensor for PLC,” and the LJ12A3-4-Z/BX fits these requirements precisely when used with proper interfacing.

**Mini Q&A**

Q: Can this sensor detect plastic or wood?

A: No. This is an inductive sensor designed only for metal detection.

## Technical Architecture

Internally, the sensor contains a high-frequency oscillator that generates an electromagnetic field at the sensing face. When a metal object enters this field, eddy currents are induced in the metal, disturbing the field. This disturbance is detected by internal circuitry, which switches the NPN output stage.

This architecture ensures:

• Fast response

• High repeatability

• Stable detection distance

## Why Choose This Model?

The LJ12A3-4-Z/BX stands out because it combines:

• A standard M12 mounting form factor

• Wide DC voltage support (6–36V)

• NPN normally open output suitable for industrial logic

It is widely adopted in educational labs because it mirrors sensors used in real industrial automation.

## Comparison with Related Sensors

Compared to mechanical limit switches:

• No physical contact

• Longer operational life

• Better performance in dusty environments

Compared to capacitive sensors:

• More stable metal-only detection

• Less sensitivity to humidity and dirt

## Pin & Interface Overview

The sensor uses a standard 3-wire configuration:

• Brown: DC supply (6–36V)

• Blue: Ground (0V)

• Black: NPN output signal

**Wiring Example (PLC Input):**

Brown → +24V DC

Blue → 0V

Black → PLC digital input (sinking type)

## Power System Explanation

The sensor operates safely across a wide DC voltage range. This allows it to be powered directly from:

• 12V automation supplies

• 24V PLC panels

• Industrial DC power rails

When used with 5V microcontrollers, voltage-level adaptation is mandatory.

## Common Issues & Troubleshooting

**Issue:** Sensor does not trigger

**Solution:** Ensure the target is metal and within 4mm distance.

**Issue:** Arduino input damaged

**Solution:** Use opto-isolator or voltage divider.

**Issue:** Inconsistent detection

**Solution:** Use ferromagnetic targets for best results.

## Who Should Buy This?

• School and diploma students learning sensors

• B.Tech final-year project developers

• Robotics clubs and innovation labs

• Industrial training institutes

• Electronics resellers supplying automation parts

## Practical Applications

• Object presence detection

• Position sensing

• CNC axis limit detection

• Conveyor counting systems

• 3D printer bed leveling

## Expansion & Ecosystem Compatibility

This sensor integrates well with:

• PLC trainers

• Relay logic boards

• Industrial automation kits

• Robotics control panels

## Institutional & Bulk Suitability

The LJ12A3-4-Z/BX is ideal for bulk procurement by institutions due to:

• Standardized form factor

• Long service life

• Industry-aligned specifications

--------------------------------------------------

1️⃣1️⃣ KEY FEATURES

• 4mm inductive metal detection for precise positioning

• NPN normally open output for industrial logic systems

• DC 6–36V wide voltage operation

• M12 threaded cylindrical body for secure mounting

• Red LED status indicator for easy diagnostics

• Non-contact sensing for long operational life

• Suitable for robotics and automation projects

• Resistant to dust, vibration, and oil

• Direct compatibility with PLC sinking inputs

--------------------------------------------------

1️⃣2️⃣ TECHNICAL SPECIFICATIONS

• Model: LJ12A3-4-Z/BX

• Sensor Type: Inductive proximity sensor

• Detection Distance: 4 mm

• Detection Objects: Metal

• Output Type: NPN, Normally Open

• Operating Voltage: DC 6–36 V

• Output Current: 300 mA (sink)

• Wiring: 3-wire

• Mounting Thread: M12

• Output Indication: Red LED

--------------------------------------------------

1️⃣3️⃣ APPLICATIONS

• Robotics projects

• PLC training kits

• CNC machine sensing

• Conveyor belt detection

• Object counting systems

• 3D printer auto bed leveling

• Industrial automation demos

• Educational sensor labs

• Limit position detection

• Motion control systems

--------------------------------------------------

1️⃣4️⃣ PACKAGE INCLUDES

• 1x LJ12A3-4-Z/BX Inductive Proximity Sensor NPN NO 4mm DC6–36V

--------------------------------------------------

1️⃣5️⃣ TRADE & COMPLIANCE

HSN Code:

85365090

RoHS Compliance:

Yes
