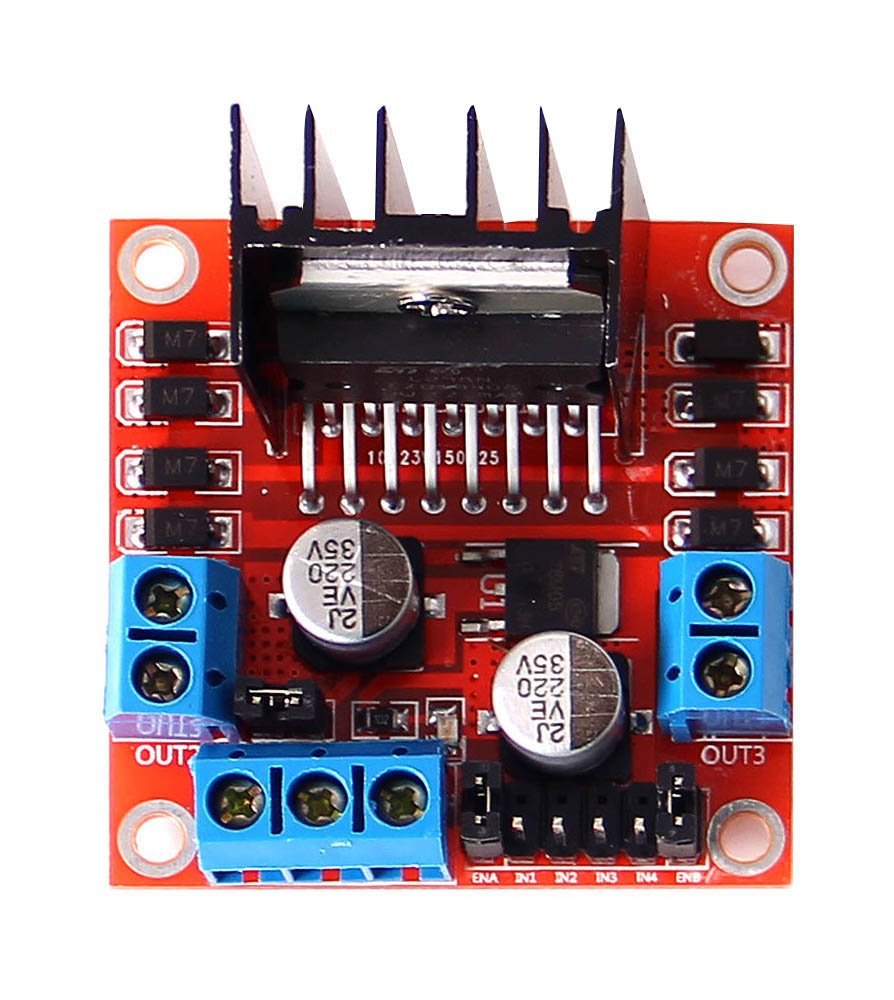

L298N Motor Driver Module

L298N Motor Driver Module

• Functionality: Dual H-Bridge motor driver IC capable of driving two DC motors or one stepper motor.
• Motor Compatibility:
  • DC Motors: Can control up to two DC motors.
  • Stepper Motors: Can control a single stepper motor (4-wire, 5-wire, or 6-wire configuration).
• Power Handling:
  • Voltage Range: Typically operates from 5V to 35V (up to 46V for the L298N).
  • Current Handling: Can handle continuous current up to 2A per channel (with proper heatsinking).
  • Peak Current: Can handle peak current up to 3A per channel.
• Control Interfaces:
  • Logic Control: Requires two logic inputs per motor (one for direction and one for speed control using PWM).
  • Built-in Diodes: Built-in diodes provide protection against back EMF (electromotive force) from the motors.
• Features:
  • PWM Control: Allows for speed control of DC motors using Pulse Width Modulation (PWM).
  • Direction Control: Supports bi-directional control of motors (forward, reverse, brake, and stop).
  • Heat Dissipation: Has mounting holes for heatsinks to dissipate heat generated during operation.
• Applications:
  • Robotics: Used in robot platforms for motor control.
  • RC Vehicles: Controls motors in remote-controlled vehicles.
  • Automation: Implements motor control in various automated systems.
  • DIY Projects: Popular in hobbyist projects for controlling motors.
