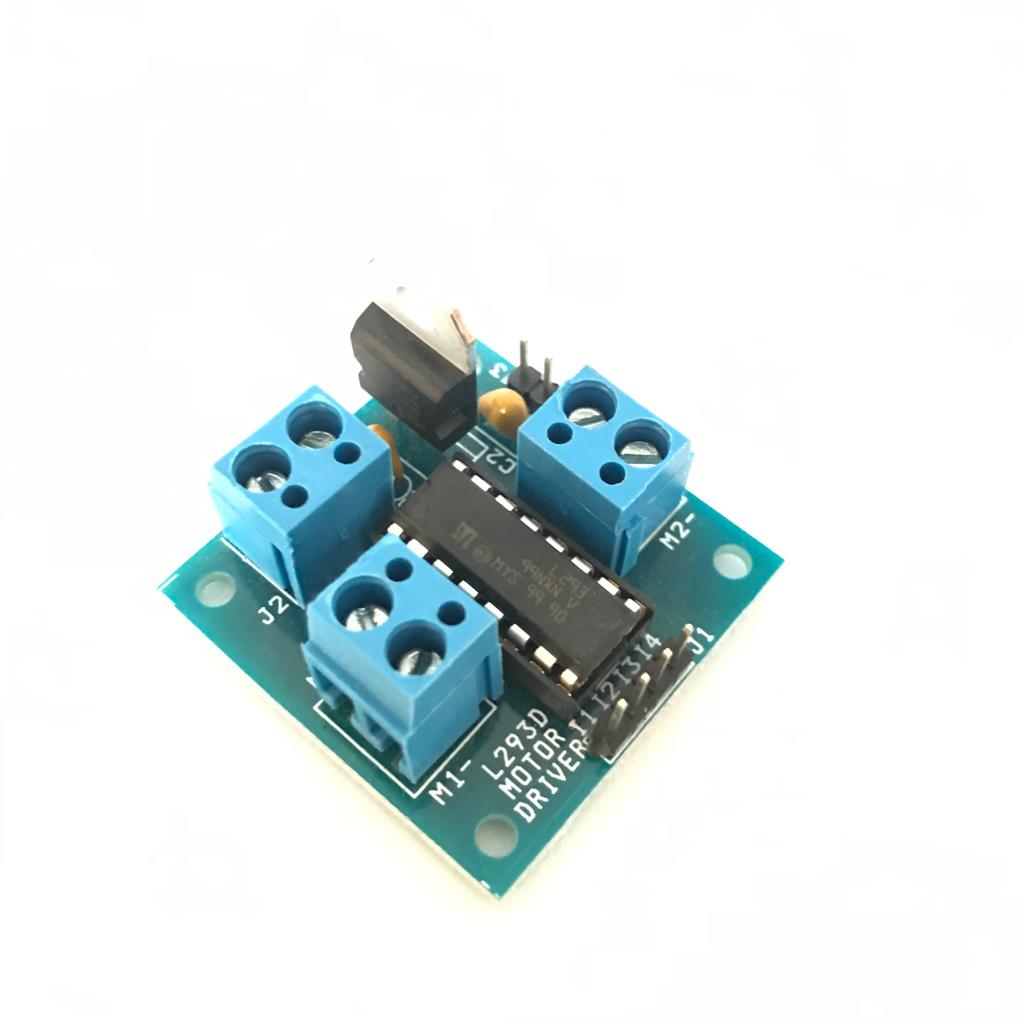

L293D Motor Driver IC with Voltage Regulator

• Functionality: Dual H-Bridge motor driver IC.
• Motor Compatibility:
  • DC Motors: Can drive up to two DC motors bidirectionally.
  • Stepper Motors: Can drive a single stepper motor (unipolar or bipolar configuration).
• Power Handling:
  • Voltage Range: Typically operates from 4.5V to 36V.
  • Current Handling: Can handle continuous current up to 600mA per channel (1.2A peak per channel).
• Control Interfaces:
  • Logic Control: Requires two logic inputs per motor (one for direction and one for enable).
  • Built-in Diodes: Built-in diodes provide protection against back EMF from the motors.
• Features:
  • PWM Control: Allows for speed control of DC motors using Pulse Width Modulation (PWM).
  • Direction Control: Supports bi-directional control of motors (forward, reverse, brake, and stop).
  • Thermal Shutdown: Includes thermal shutdown protection to prevent damage from overheating.
• Applications:
  • Robotics: Used in small robot platforms for motor control.
  • RC Vehicles: Controls motors in remote-controlled vehicles.
  • Automation: Implements motor control in various automated systems.
  • DIY Projects: Popular in hobbyist projects for motor control.

Usage with Voltage Regulator

When using the L293D motor driver IC, a voltage regulator may be used to ensure stable and appropriate voltage supply to the motors and the IC itself. Here’s how it typically integrates:

• Input Voltage: The L293D can operate with a wide range of input voltages, typically around 4.5V to 36V DC.
• Voltage Regulation: A voltage regulator (such as an LM7805 for 5V or LM317 for adjustable voltage) can be used to provide a regulated voltage to the logic circuits and possibly to the motors if a specific voltage is required.
• Motor Power: The L293D IC directly connects to the motor power supply, which can be separate from the logic power supply regulated by the voltage regulator.
• Integration: The voltage regulator ensures that the logic control signals (typically 5V or lower) are stable and protected from fluctuations in the motor power supply.
