Joy Stick Module

Description

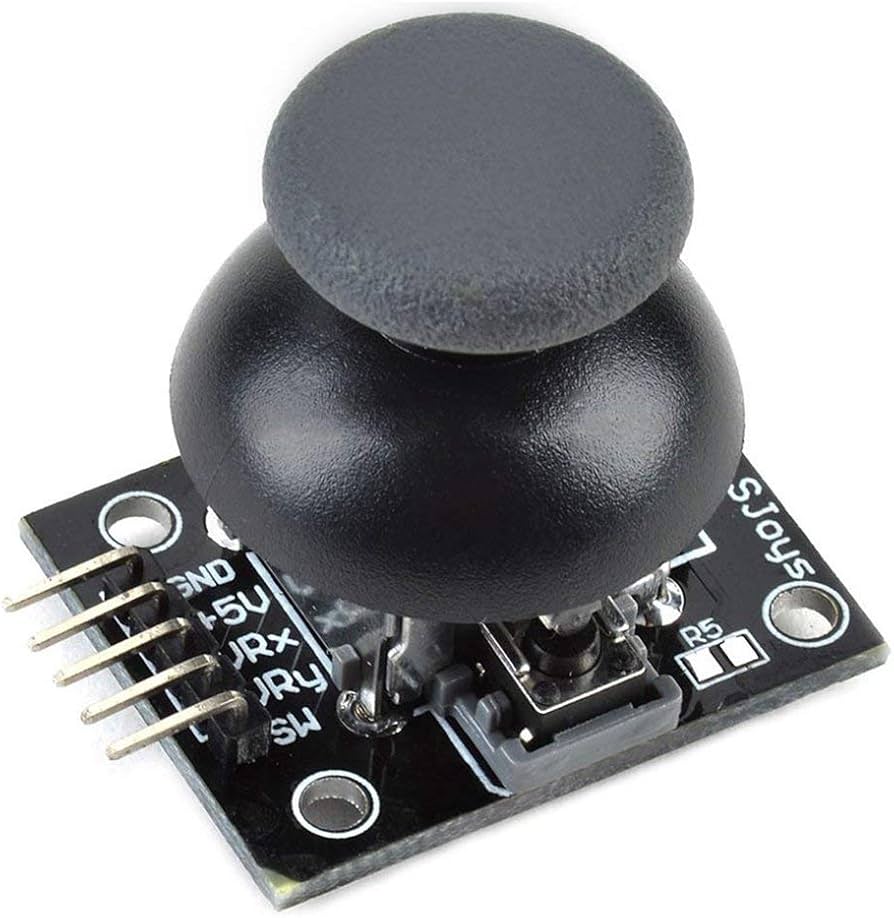

The Dual Axis PS2 Joystick module features two 10K potentiometers, one for each axis (X and Y), to detect movement in different directions. These potentiometers can move independently, allowing full-range directional control. Additionally, the module includes a push-button that is activated by pressing down on the joystick.

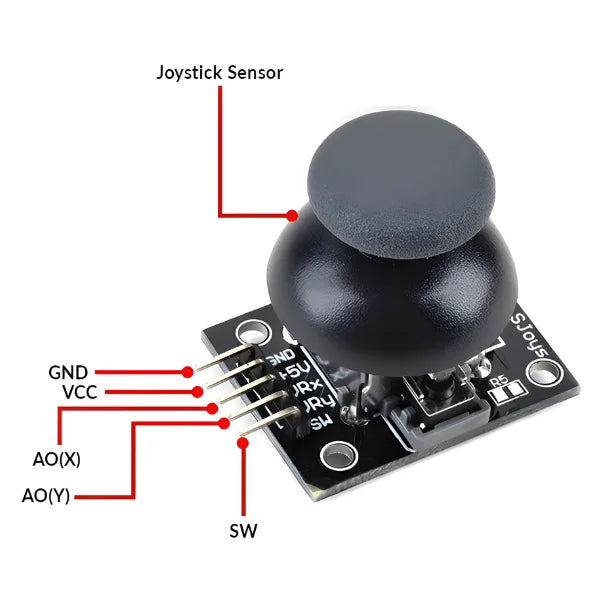

This joystick module has 5 pins: GND, VCC, VRX, VRY, and SW. The GND pin is connected to the circuit's ground, while VCC is linked to the power supply. VRX and VRY receive analog signals representing the X and Y position coordinates. The SW pin is connected to the push-button. The pin interface uses standard 2.54mm leads, and the module operates at 5V. This joystick module is commonly used for robot control, camera pan control, and game controllers.

Features

• 2 analog outputs, 1 digital output
• Durable rocker mechanism for long life
• Reliable and consistent performance

Specifications

• Product: Dual Axis Joystick Module
• Type: Joystick
• Operating Voltage: 5V
• Dimensions: 36 x 28 x 30 mm (LxWxH)
• Pin Interface Leads: 2.54mm
