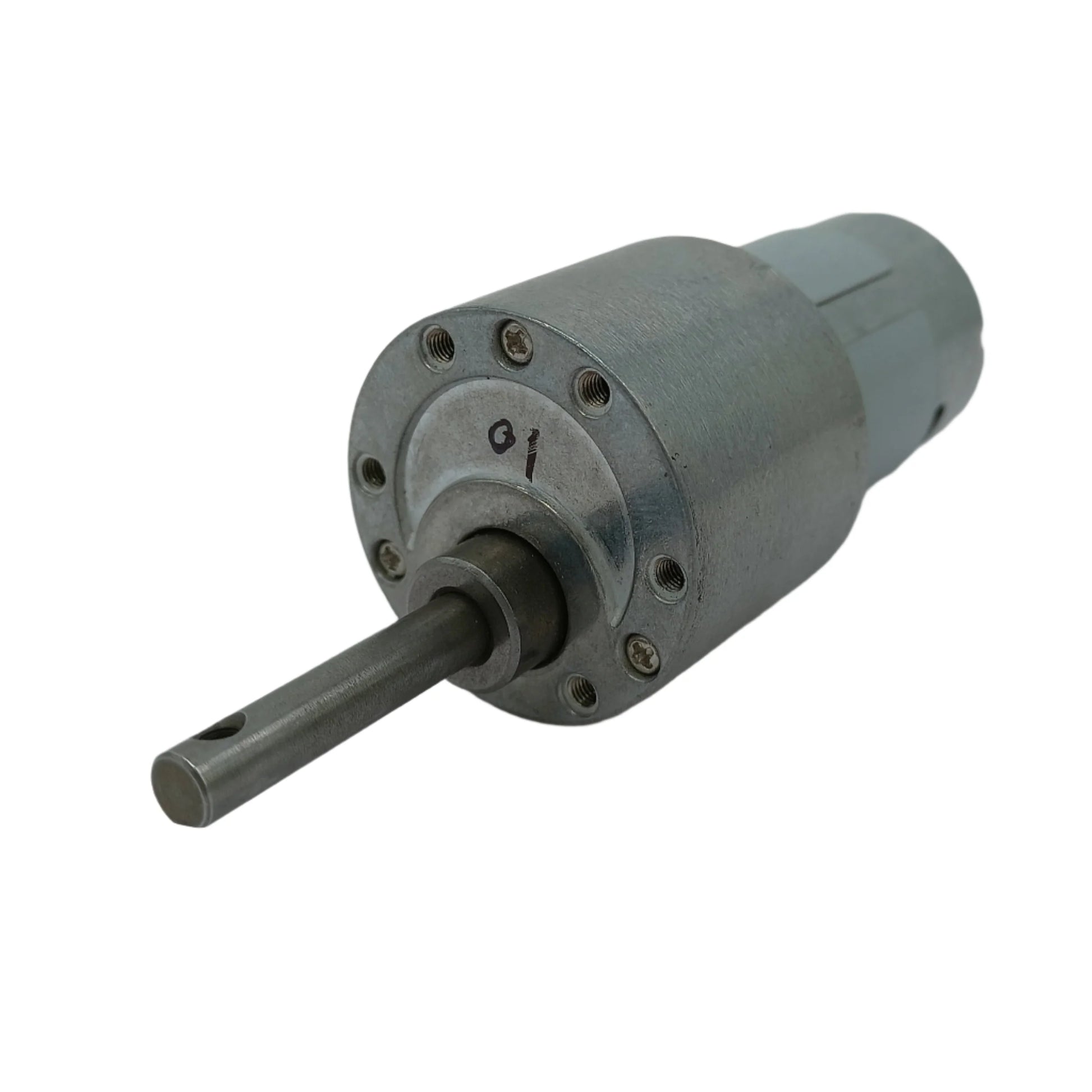

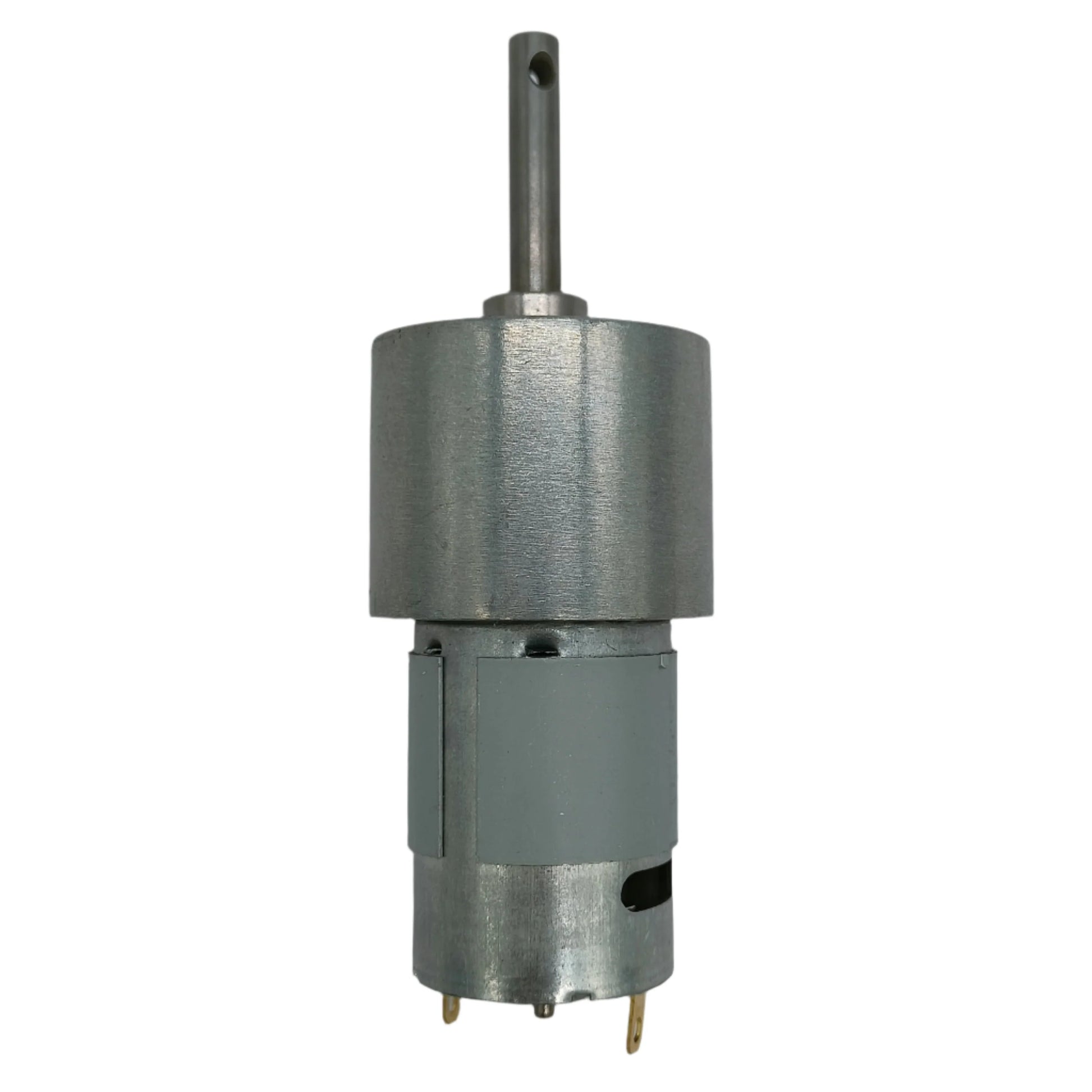

Johnson Geared Motor 12V 30RPM Grade A Side Shaft for Robotics

Overview

The Johnson Geared Motor (Grade A) 12V 30RPM Side Shaft is designed for applications that demand high torque at low speed. Unlike high-speed DC motors, this gear motor focuses on controlled rotational output, making it ideal for robotics, automation, and educational environments.

Q: Is this motor suitable for beginners?**

Yes, when paired with a proper motor driver, it is widely used in academic labs and student projects.

Technical Architecture

This motor consists of a high-speed DC base motor coupled with a metal reduction gearbox. The gearbox reduces the base motor speed to 30 RPM while multiplying torque output. Grade A construction ensures better gear alignment, reduced wear, and stable long-term operation.

Why Choose This Model?

Grade A Johnson Motors are selected for projects where consistency and durability matter. Compared to lower-grade motors, this variant offers improved torque stability and reduced mechanical noise under load.

Comparison with Related Motors

Entry-level motors often compromise torque or lifespan. Advanced industrial motors increase cost significantly. This model offers a balanced solution for education, prototyping, and light industrial use.

Pin & Interface Overview

This motor uses standard DC motor terminals. Polarity reversal changes rotation direction. Speed control requires PWM via an external motor driver.

Power System Explanation

A regulated 12V DC power supply is required. The supply must support high current during startup and load conditions. Undersized supplies can cause voltage drops and unstable operation.

Common Wiring Example:

12V DC Supply → Motor Driver → Motor Terminals

Control signals from Arduino/ESP connect only to the motor driver.

Common Issues & Troubleshooting

• Motor not rotating → Check driver current rating

• Overheating → Improve ventilation and reduce load

• Jerky motion → Use PWM control and proper driver tuning

Who Should Buy This?

• School and college students

• Robotics clubs and labs

• Engineering institutions

• Automation prototype developers

• Electronics resellers

Practical Applications

Used in robotic arms, mobile robots, conveyor models, cleaning machines, and motion demonstrators.

Expansion & Ecosystem Compatibility

Can be expanded with encoders, feedback sensors, and closed-loop controllers for advanced projects.

Institutional & Bulk Suitability

Preferred by institutions due to repeatable performance, easy sourcing, and compatibility with standard lab equipment.



 KEY FEATURES (8–12 Points)

• 12V DC operation suitable for standard lab power supplies

• 30 RPM stable output for controlled motion

• Grade A build quality for long service life

• High torque output for load-based applications

• Metal gearbox for durability

• Side shaft design for flexible mounting

• Compatible with popular DC motor drivers

• Ideal Johnson Geared Motor for robotics projects



TECHNICAL SPECIFICATIONS

• Rated Speed: 30 RPM

• Rated Torque: 90 kg-cm

• Base Motor Speed: 18000 RPM

• Operating Voltage: 12V DC

• No-Load Current: 700 mA

• Maximum Load Current: 6.5 A

 APPLICATIONS (10–15 Use Cases)

• Robotics platforms

• Automation mechanisms

• Engineering lab demonstrations

• Conveyor models

• Cleaning system prototypes

• Motion control projects

• DIY robotics kits

• Industrial training rigs

• Educational mechatronics labs

• Load-based rotation systems

--------------------------------------------------

 PACKAGE INCLUDES

• 1x Johnson Geared Motor (Grade A) 12V 30RPM (Side Shaft)

 TRADE & COMPLIANCE

HSN Code: 8501

RoHS Compliance: yes
