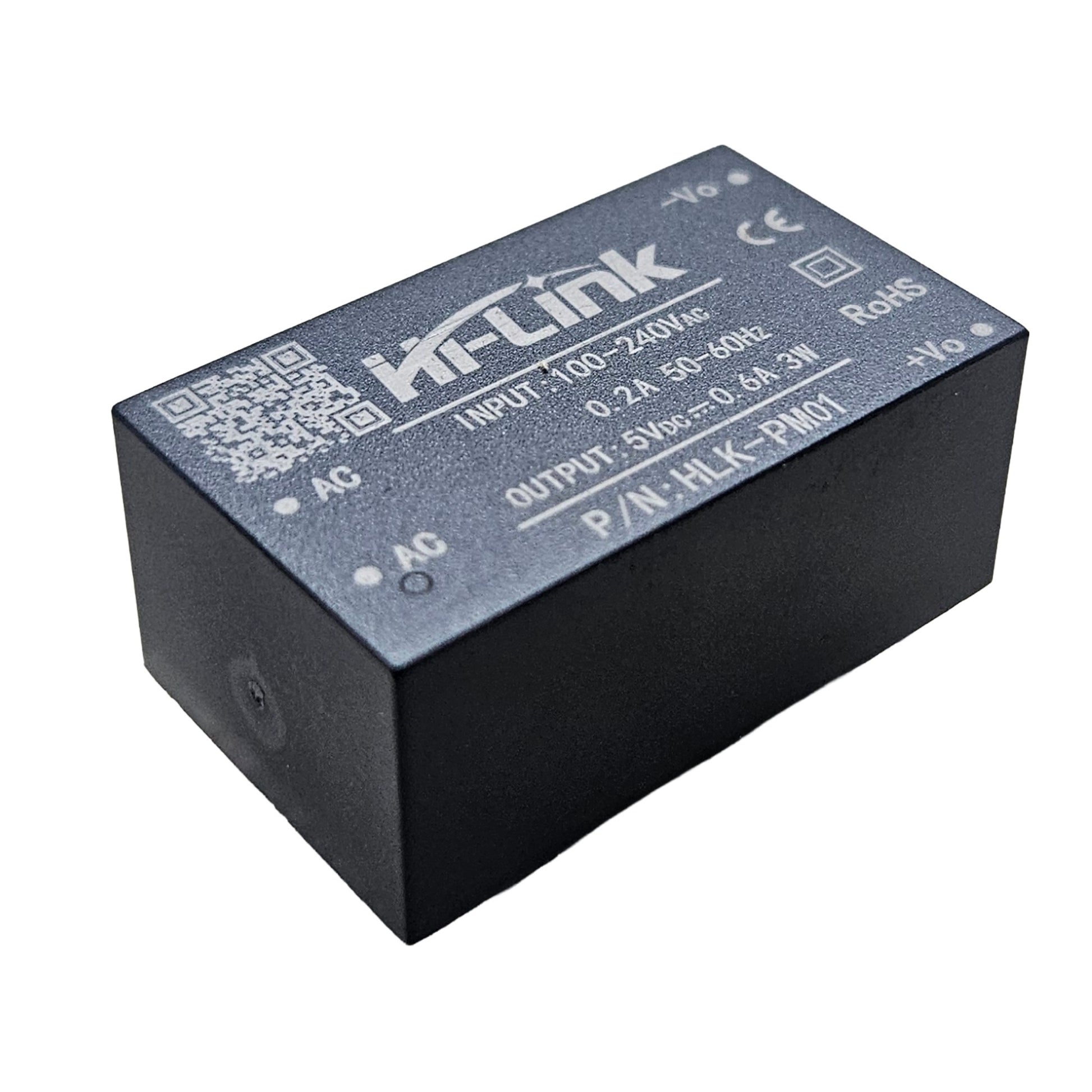

Hi-Link HLK-PM01 5V 3W AC to DC Power Supply Module – 100V–240V AC to 5V DC Converter
Hi-Link HLK-PM01 5V 3W AC to DC Power Supply Module – 100V–240V AC to 5V DC Converter
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The Hi-Link HLK-PM01 Power Supply Module is a compact AC to DC converter module that converts 100V–240V AC input into stable 5V DC output. It is useful for powering microcontroller circuits, IoT projects, Arduino-compatible boards, ESP8266, ESP32, relay circuits, sensors, smart switch projects and embedded electronics.
This module provides 5V DC 0.6A output with 3W power, making it suitable for low-power electronics applications where direct AC to 5V DC conversion is required. Its small enclosed design makes it easy to use inside control boards, automation circuits and DIY electronics projects.
Specifications
| Specification | Details |
|---|---|
| Product Name | Hi-Link HLK-PM01 Power Supply Module |
| Brand | Hi-Link |
| Model / Part Number | HLK-PM01 |
| Product Type | AC to DC Power Supply Module |
| Input Voltage | 100V–240V AC |
| Input Current | 0.2A |
| Input Frequency | 50–60Hz |
| Output Voltage | 5V DC |
| Output Current | 0.6A |
| Output Power | 3W |

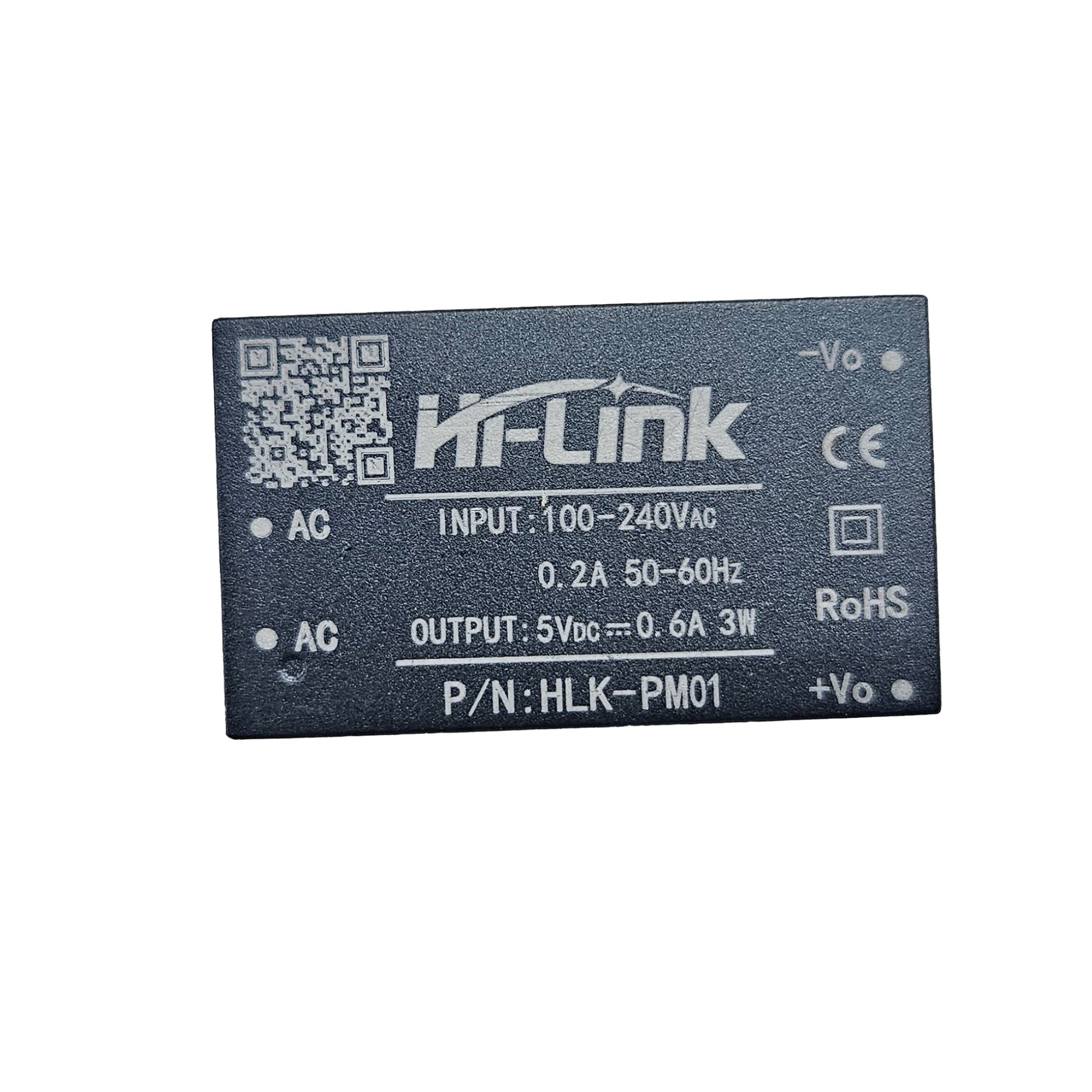

| Input Pins | AC, AC |
| Output Pins | +Vo, -Vo |
| Module Type | Enclosed PCB Mount Power Module |
| Suitable For | IoT, microcontroller, Arduino, ESP8266, ESP32, sensor circuits, relay boards |
| Application | Smart switch, home automation, embedded systems, DIY electronics, control circuits |
Key Features
Compact AC to DC power supply module.
Converts 100V–240V AC to 5V DC.
Provides 5V 0.6A / 3W output.
Suitable for low-power electronics circuits.
Useful for IoT and home automation projects.
Clearly marked AC input and DC output pins.
Compact enclosed design for PCB and project use.
Important Note
This module works with mains AC voltage. Wiring should be done carefully by a qualified person. Do not touch the circuit while powered. Use proper insulation, fuse protection and safe enclosure for final installation.
