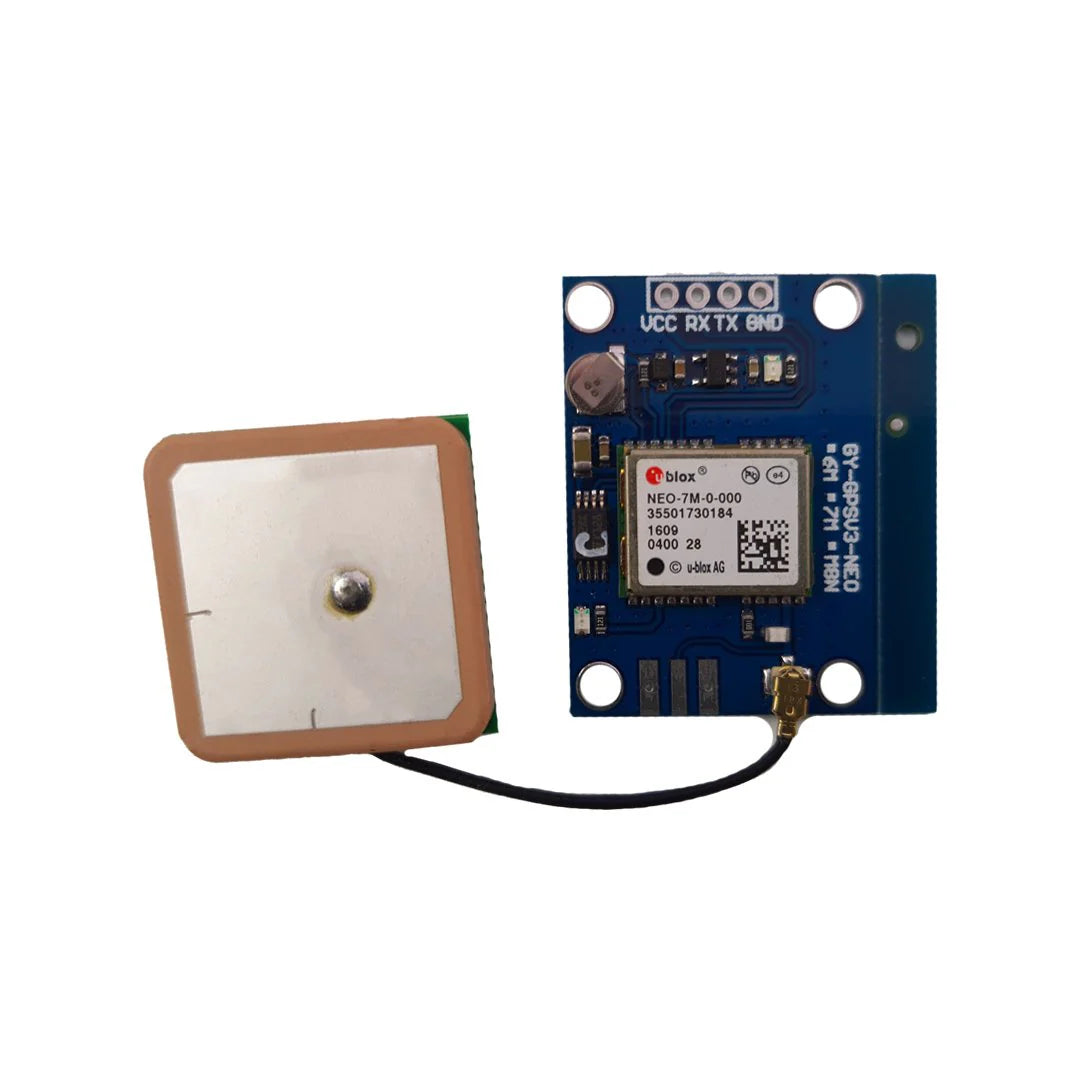

GPS NEO 7M Module with Ceramic Antenna and EEPROM

- GPS NEO 7M module for positioning and navigation projects

- Built-in ceramic antenna for stable satellite signal reception

- Onboard EEPROM to store configuration settings

- Supports 3V to 5V power supply input range

- UART communication with default 9600 baud rate

- Suitable for flight controllers and DIY electronics

The GPS NEO 7M Module is a compact positioning module designed to provide accurate geographic location data for embedded systems and flight control applications. It is built around the NEO 7M GPS receiver and features an integrated ceramic patch antenna mounted directly on the board. The module also includes onboard EEPROM and a backup battery, allowing it to retain configuration settings and satellite data when powered off.

This module is commonly used in drones, unmanned aerial vehicles, and navigation systems where reliable GPS positioning is required. It can also be integrated into robotics projects, vehicle tracking systems, and outdoor data logging applications. With its small board size and mounting holes, it is suitable for installations where space is limited.

Key benefits include stable satellite signal reception through the ceramic antenna and consistent communication via UART interface. The onboard EEPROM helps store user-defined parameters, while the backup battery supports quicker satellite reacquisition after restart. The module operates within a 3V to 5V input range, making it compatible with many development boards.

The GPS NEO 7M Module can be used with popular microcontroller platforms such as Arduino, ESP32, STM32, and other UART-supported systems. It is suitable for flight controllers including MWC and APM based setups.

The package includes one GPS NEO 7M Module with integrated ceramic antenna, EEPROM, backup battery, and onboard LED indicator.

KEY FEATURES

- NEO 7M GPS receiver module

- Integrated ceramic patch antenna

- Onboard EEPROM for parameter storage

- Backup battery for faster satellite acquisition

- UART serial interface communication

- Default baud rate set to 9600

• Compatible with 3V to 5V systems

SPECIFICATIONS

Product Name : GPS NEO 7M Module

Main Chip : NEO 7M

Supply Voltage : 3V to 5V DC

Communication Interface : UART

Default Baud Rate : 9600 bps

Antenna Type : Ceramic patch antenna

EEPROM : Yes

Backup Battery : Yes

LED Indicator : Yes

Board Size : 23 mm x 30 mm

Mounting Hole Diameter : 3 mm

PCB Type : Immersion gold finish

Application Type : Flight controller and navigation module
